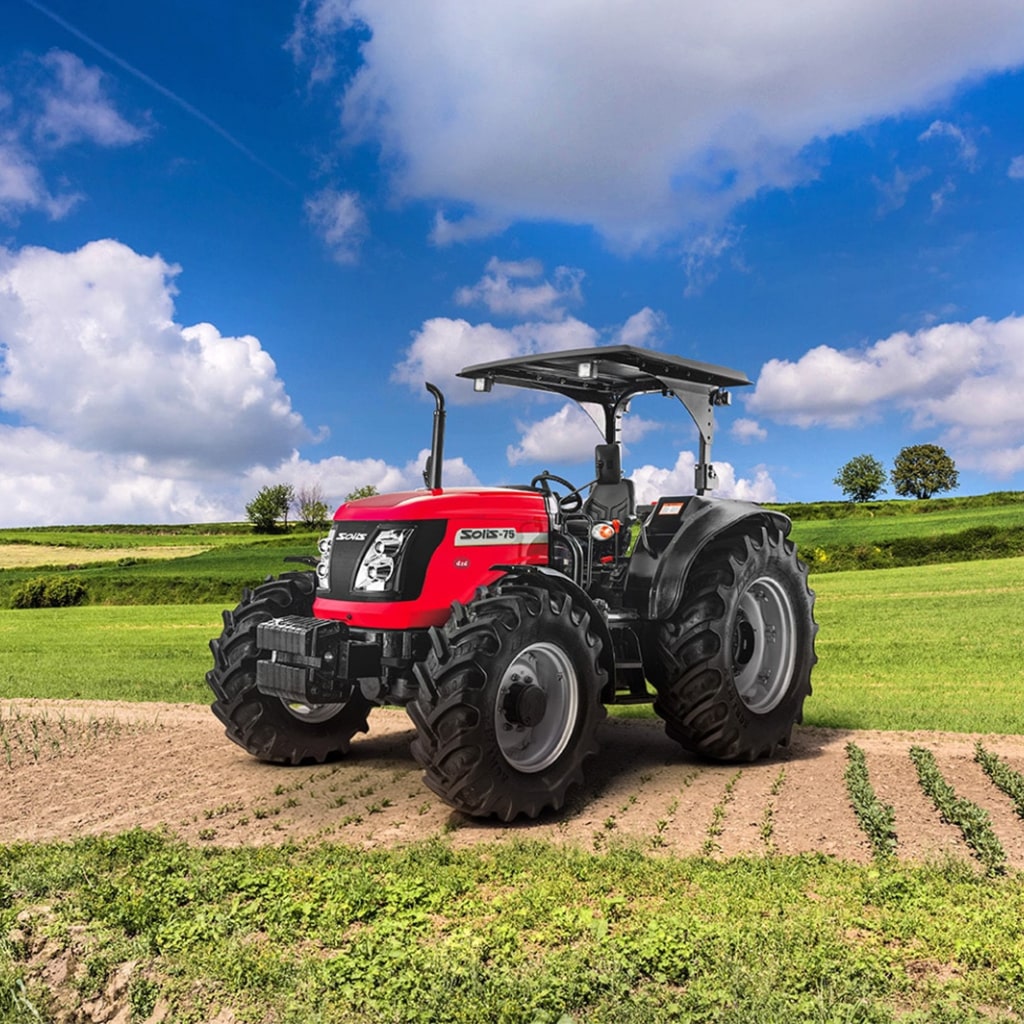

75 HP utility tractor built for serious work.
The S75 delivers strength, stability, and fuel-efficient power for loader work, field operations, and tough terrain.
With a turbocharged diesel, 12×12 Synchro Shuttle, 4WD heavy-duty front axle, and a factory self-leveling loader,
it’s engineered to pull, lift, and haul with confidence day after day.
Highlights:
Type: Turbocharged high-torque diesel (Tier 4 Final, DOC/POC; no DPF)
Cylinders: 4
Displacement: 249.4 CI
Torque: 336 Nm @ 1400 ERPM
Type: 12F + 12R Synchromesh Shuttle
Clutch: Double clutch
Drive: 4WD
Max Traveling Speed: 19.51 mph
Type: Independent
Control: Mechanical
Total Flow (incl. steering): 21.1 GPM
3-Point Hitch: Category II
Rear Remotes: 2DA
3-Point Lift @ Ball Ends: 5,511 lb (optional 6,613 lb)
Fuel Tank: 23.2 gallons
Weight: 7,771 lb
Wheelbase: 92.5 in
Total Length: 165.55 in
Total Width: 82 in
Ground Clearance: 16.33 in
Brakes: Wet disc
Steering: Hydraulic / Power steering
R1 Ag: F 11.2-24 / R 16.9-30
R4 Industrial: F 12.5/80 / R 18.4-24
Radial: F 280/85R24 / R 420/85R30
Lifting Capacity to Full Height: 3,042 lb
Max Lifting Height: 134.25 in
Clearance @ Dump: 103.93 in
Max Dump Angle: 55°
Bucket Width: 74.8 in
3-year full warranty and 5-year powertrain warranty for confidence season after season.
