Built for Performance. Engineered for Durability.

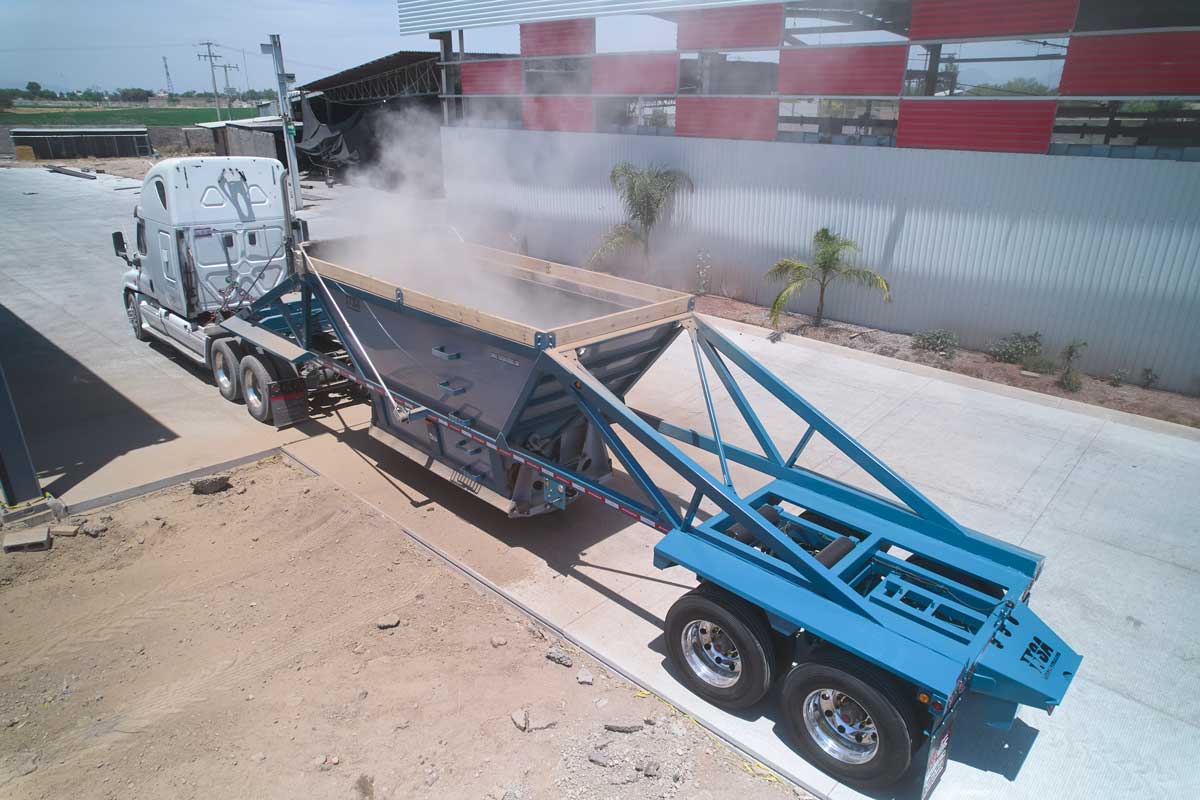

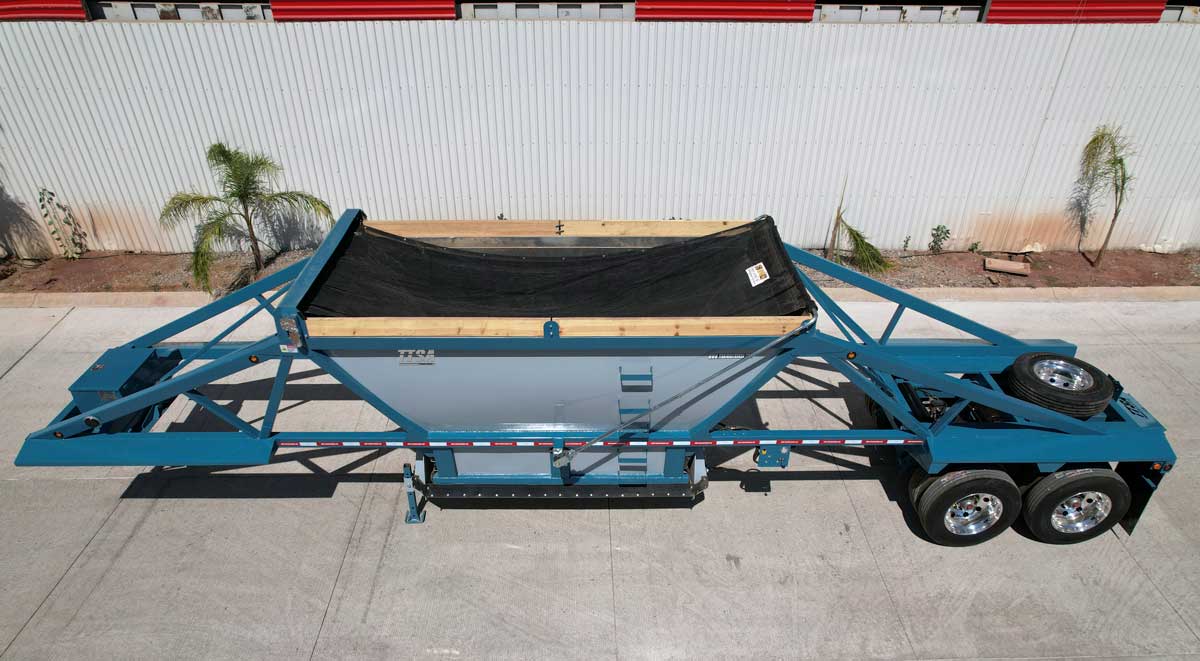

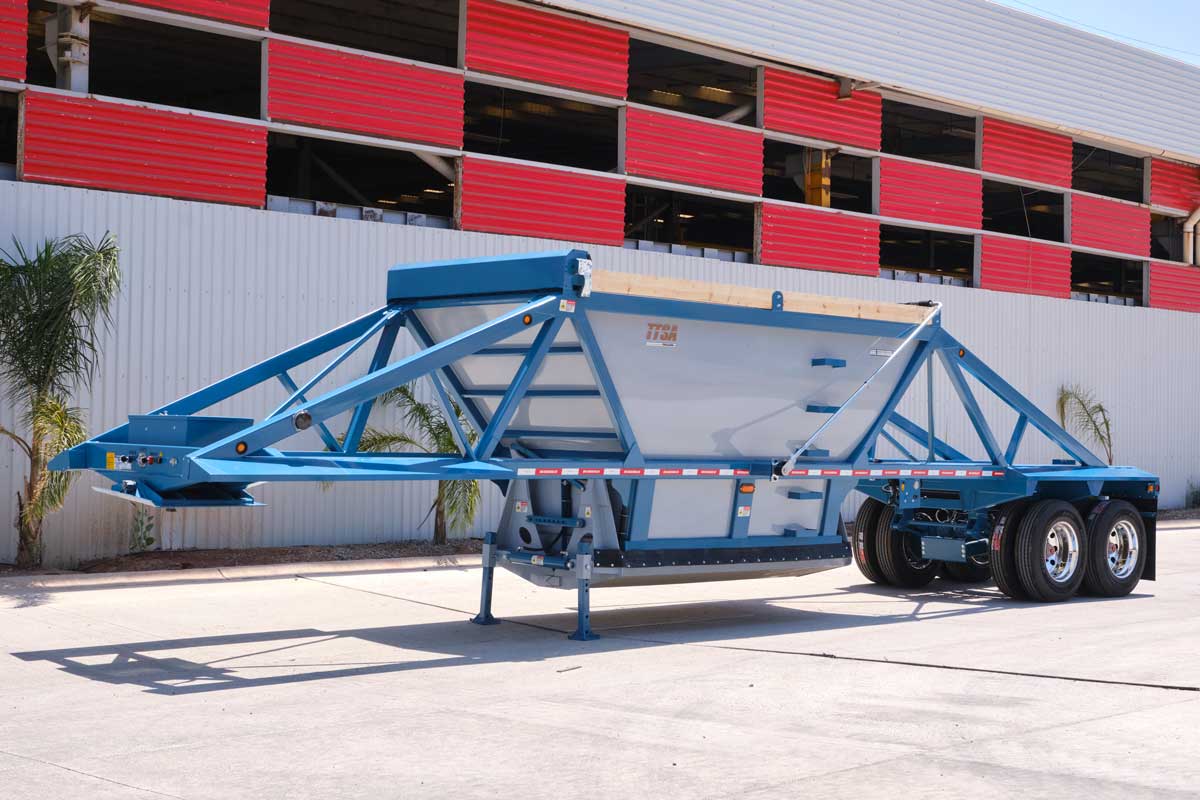

Our Belly Dump 2-Axle Trailer is designed for serious hauling. With a rugged build and advanced components, this trailer delivers optimal capacity, control, and reliability for demanding jobs. Whether you’re moving aggregates, sand, or other loose materials, this unit’s hydraulic hopper system and heavy-duty construction make loading and unloading fast, safe, and efficient.
Dimensions
Overall Width
102 inches
Overall Length
41 feet 11 inches
Overall Height
118″ with sideboards
Fifth Wheel Height
46 inches
Fifth Wheel
Oscillating upper plate with king pin
Capacity
20.5 cubic yards single hopper / 23.5 cubic yards with 8″ bang boards
Payload
65,000 lbs
Number of axles
2
Tare Weight
12,600 lbs +-3%
Hopper dump opening
55″ x 107″
Upper hopper opening
90″ x 190″
Standard Features

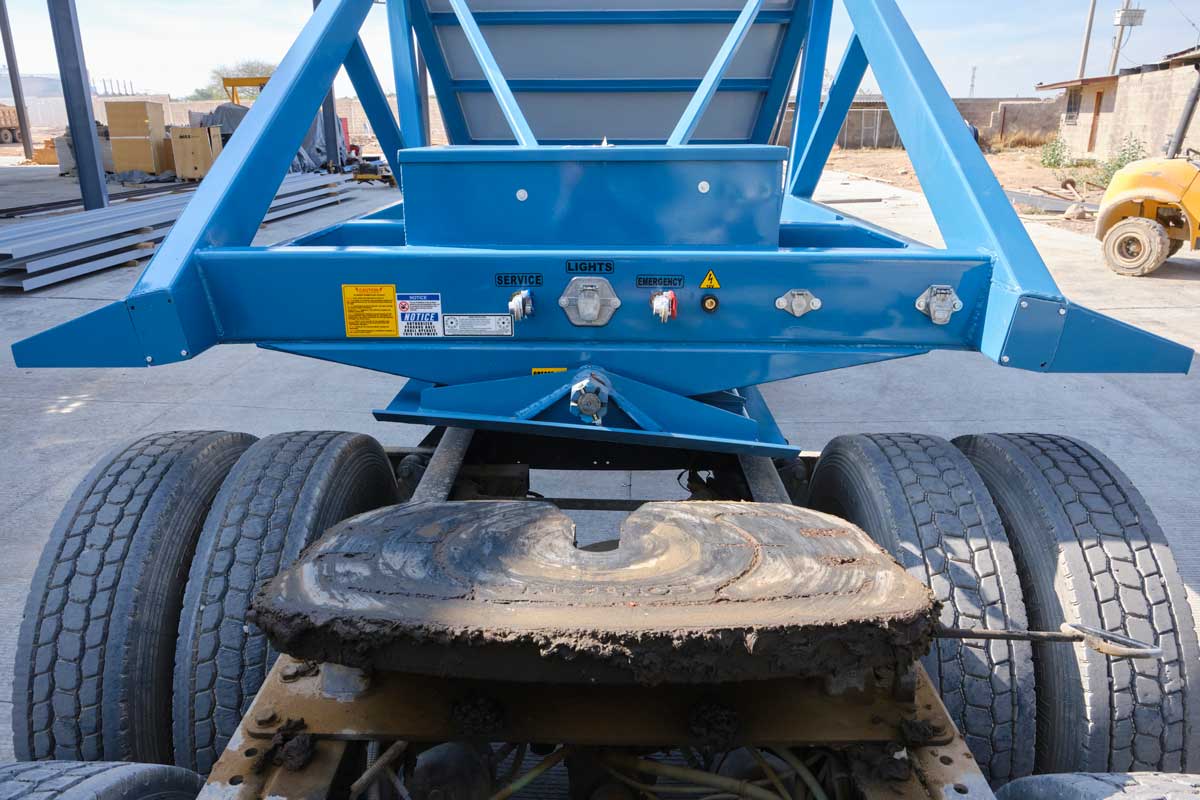

Upper Coupler Assembly
5/16″ thick pick-up plate
Mud Flaps
24″ x 36″ black plastic, 4 hole mounting
Electrical System
12 volt, 7-way split pin receptable plug

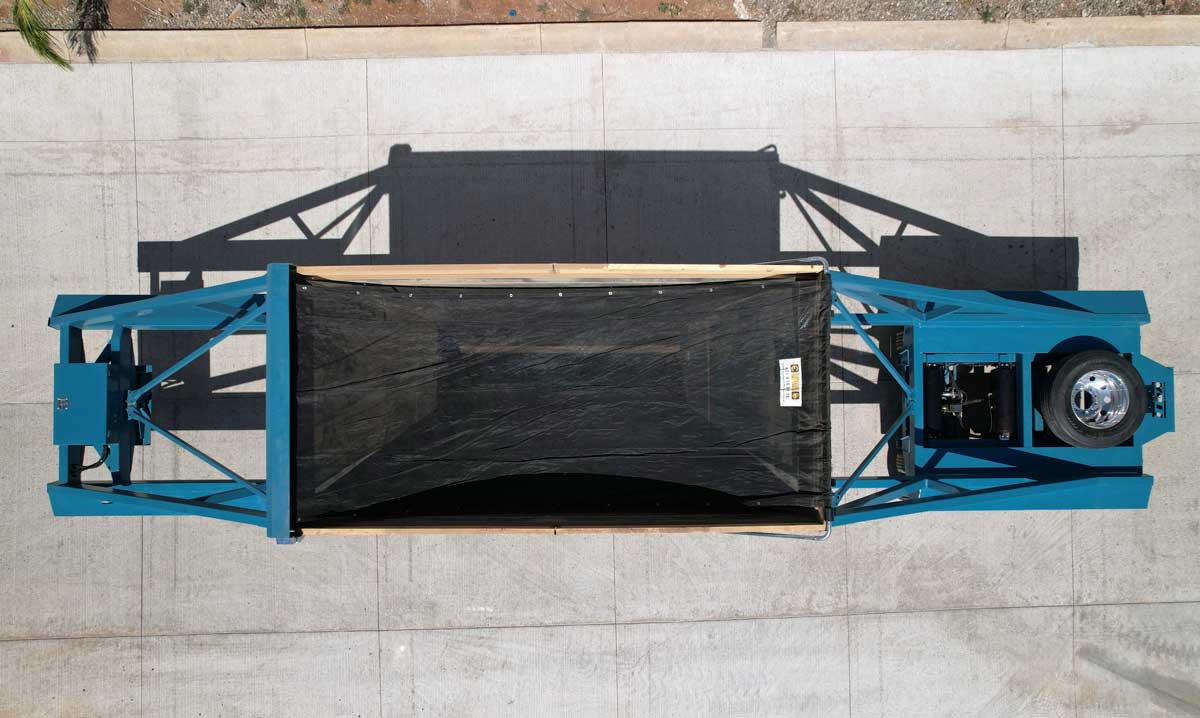

Tarp System
Electric, mesh tarp
Hopper Dumo Opening
Hydraulic
Hydraulic Power Source
12V DC
Rims
8.25″ x 22.5″ Aluminum
Tire Size
11R 24.5
Spare Tire
1 Spare Tire 11R24.5 Aluminum Rim
Hub Type
Steel

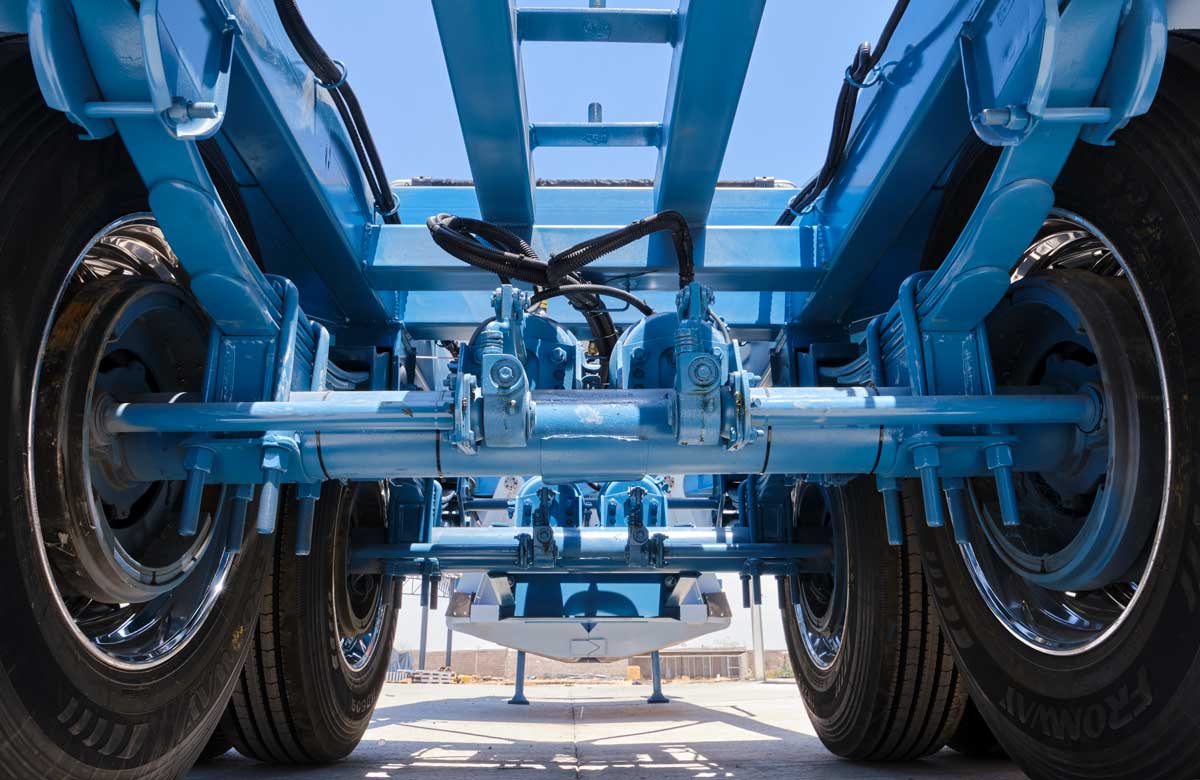

Axle Type
5″ round, tapered, 77.5″ long
Axle Centers
49 inches
Suspension Type
Three-leaf Spring Ride
Brake System
Valve system for service brakes. 2S1M BENDIX ABS System
Metal Preparation
Clean, dry steel and commercial blast cleaning
Topcoat
Electrostatic Power Coating
