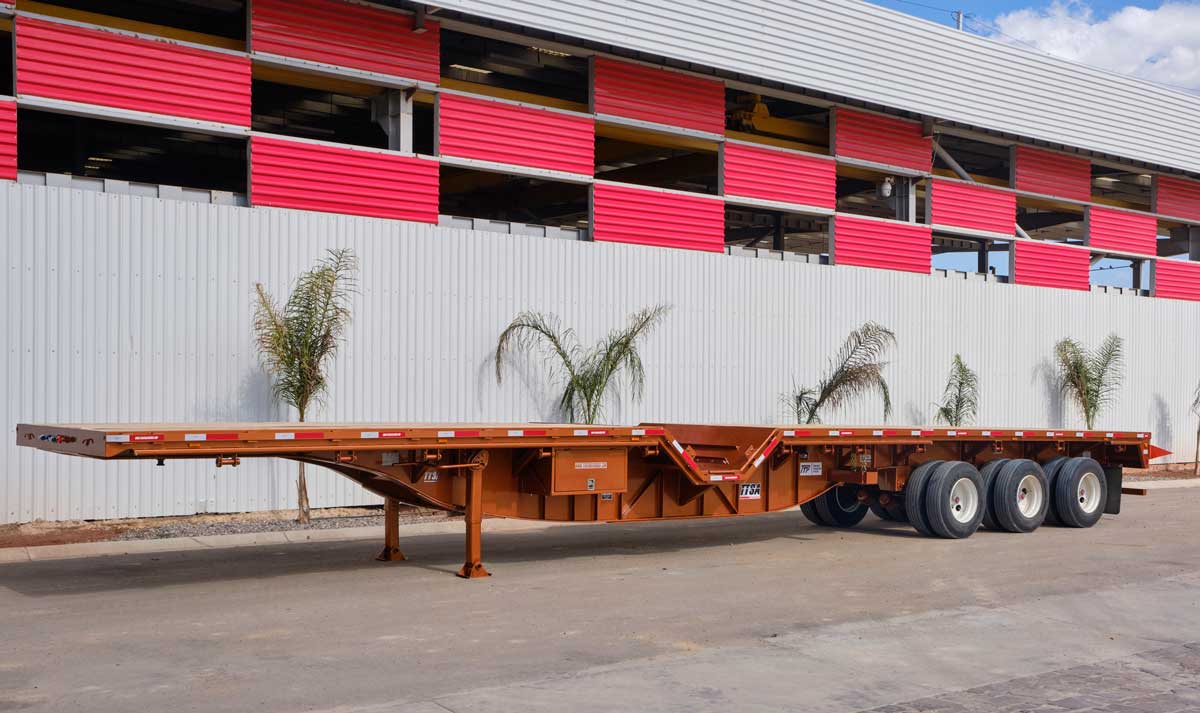

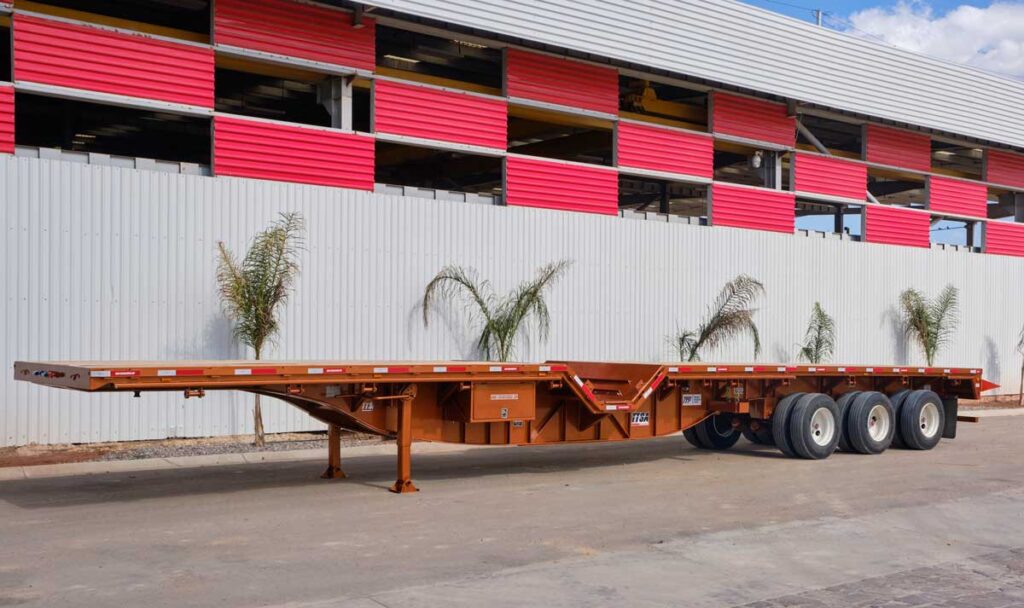

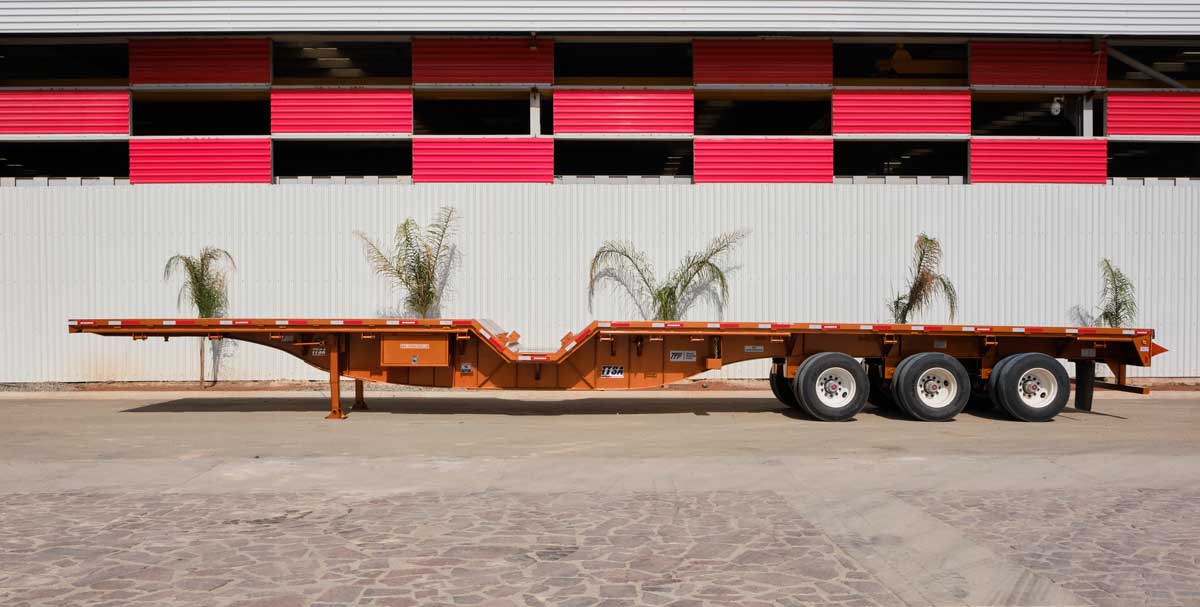

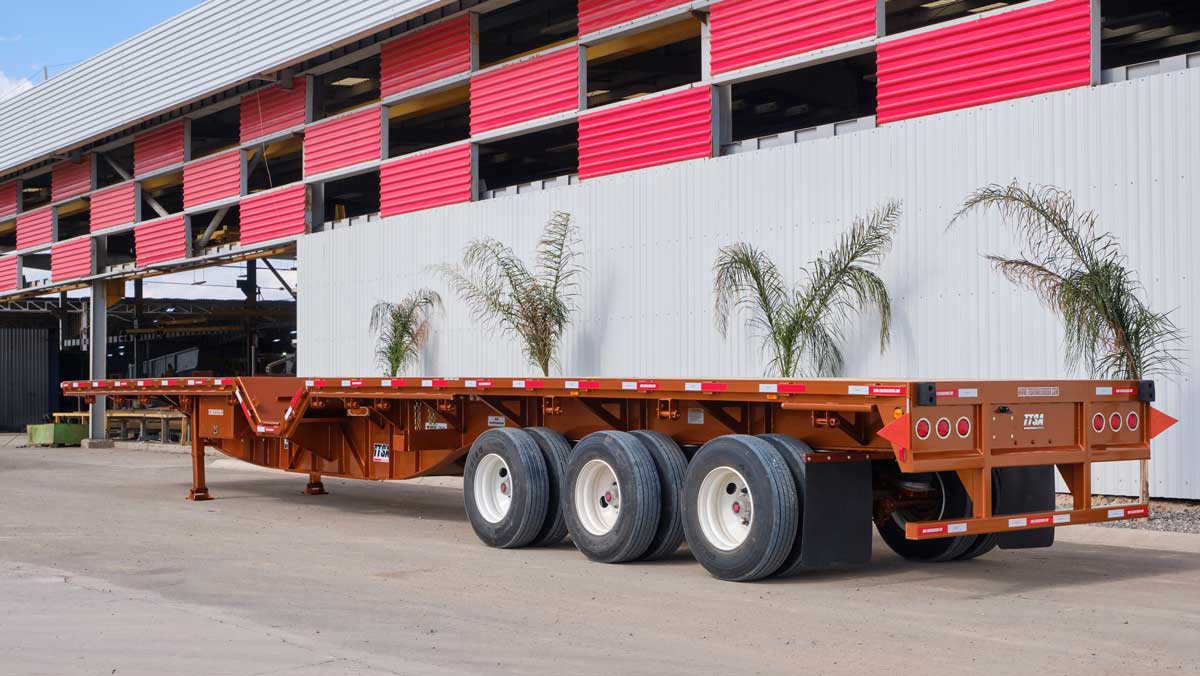

Coil Flatbed

General Specs

• Tare Weight: Approximately 15,900 lbs.
• GVWR: 90,000 lbs.
• Floor: Wood at 1 1/2″
• Cross Member: Fabricated steel
• Upper Coupler Assembly: 5/16″ thick pick-up plate
• Fifth Wheel Height: 48 in.
• Mud Flaps: 24″ x 30″ black plastic, 4 hole mounting
• Electrical System: 12 volt, 7-way split pin receptacle plug

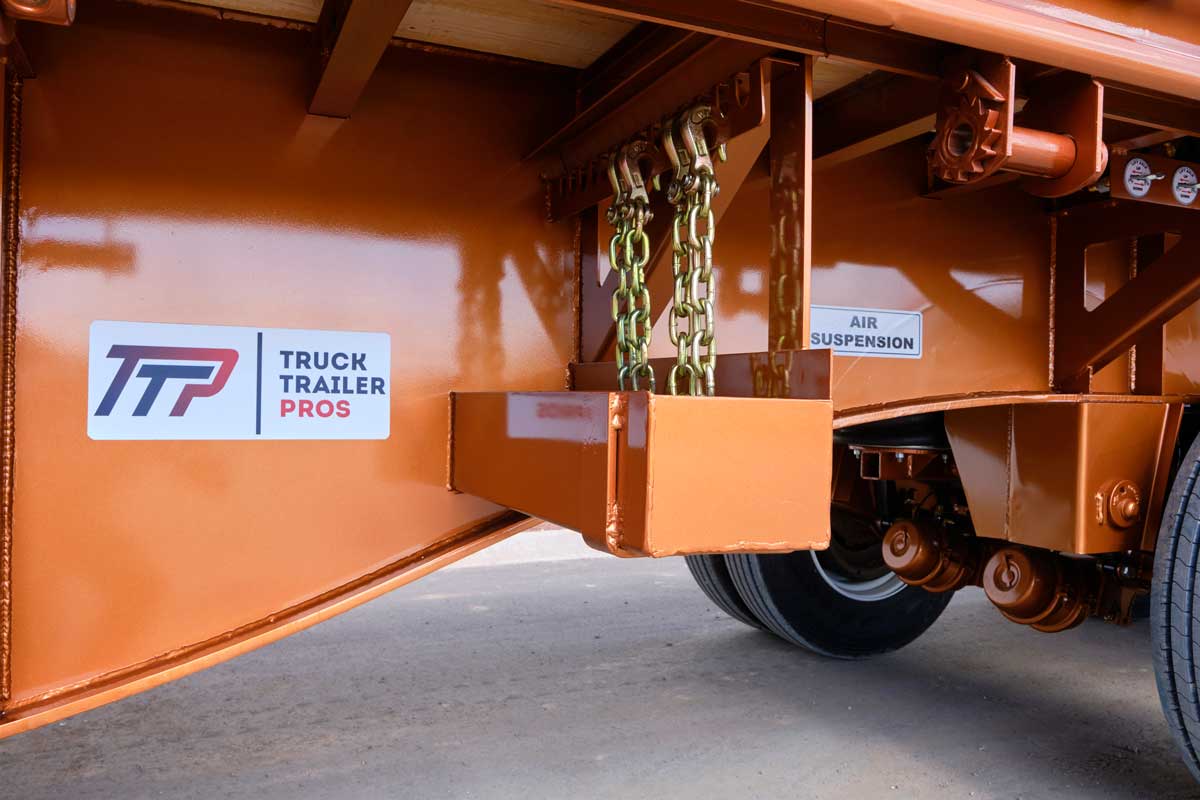

• Wincher: 4″ Slider Wincher System

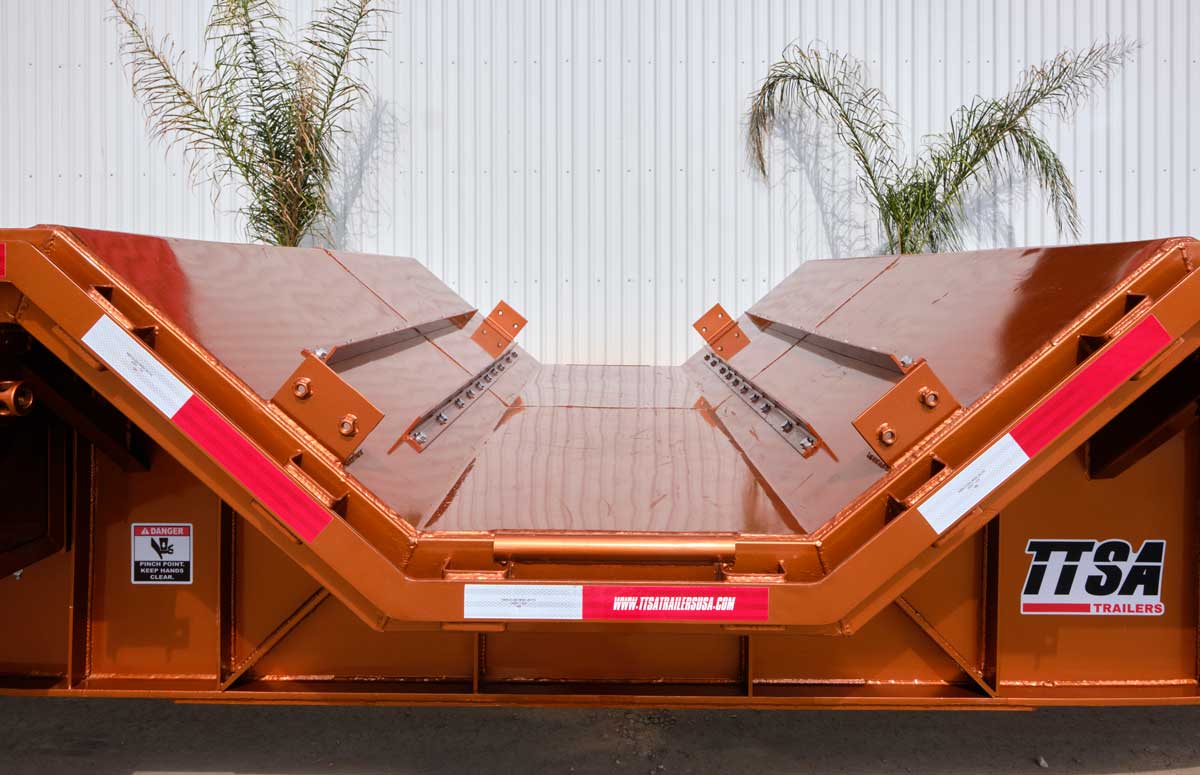

• Coil space: 3 ft
• Tool box: One steel tool box on each side.

Dimensions

• Overall Width: 102 inches
• Overall Length: 53 feet
• Bed Height: 58 inches
• Col Bed Height: 39 inches

Landing Gear

• Landing Gear: two speed, square leg. 60,000 lbs lift capacity and 170,000 lbs static load capacity.
• Landing Gear Foot Group: 10″ x 9.5″ low profile sandshoe
• Crank Handle Location: Roadside

Lighting

• Light Attachment: Flange Mounted
• Light Type: LED

Brakes

• Drum: Steel outboard mounted
• Lubrication: Synthetic Grease
• Brake System Type: 4S2M
• Brake Chambers: 30/30

Wheels

• Rims: 8.25″ x 22.5″
• Tire Size: 11R22.5
• Hub Type: Steel

Axles

• Axle Type: 5″ round, tapered, 77.5″ long
• Axle Quantity: Three
• Axle Centers: 60 inches
• Axle Location: 68 inches from rear
• Kingpin Location: 36 inches from reare face of front bolster.

Suspension

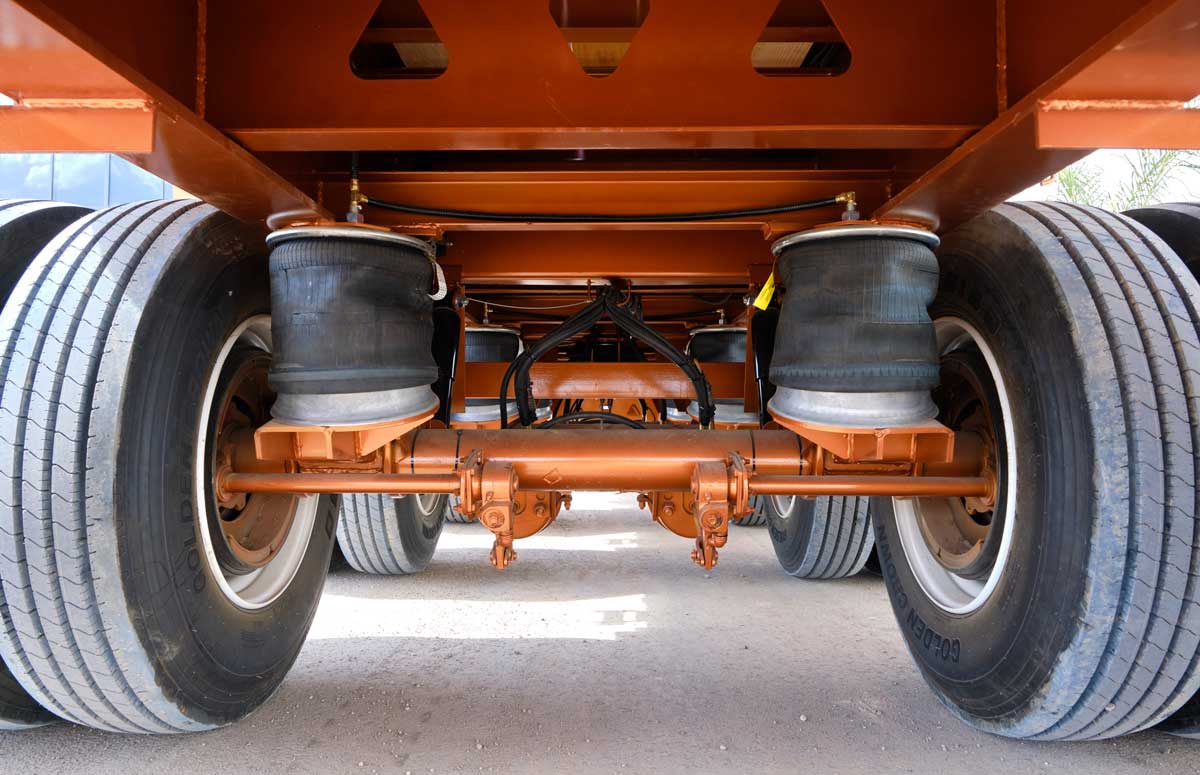

• Suspension Type: Air Suspension

Finish

• Metal Preparation: Clean, dry steel and commercial blast cleaning
• Primer: Zinc-rich primer
• Topcoat: Urethane
