Compact Power. Low Profile. Big Results.

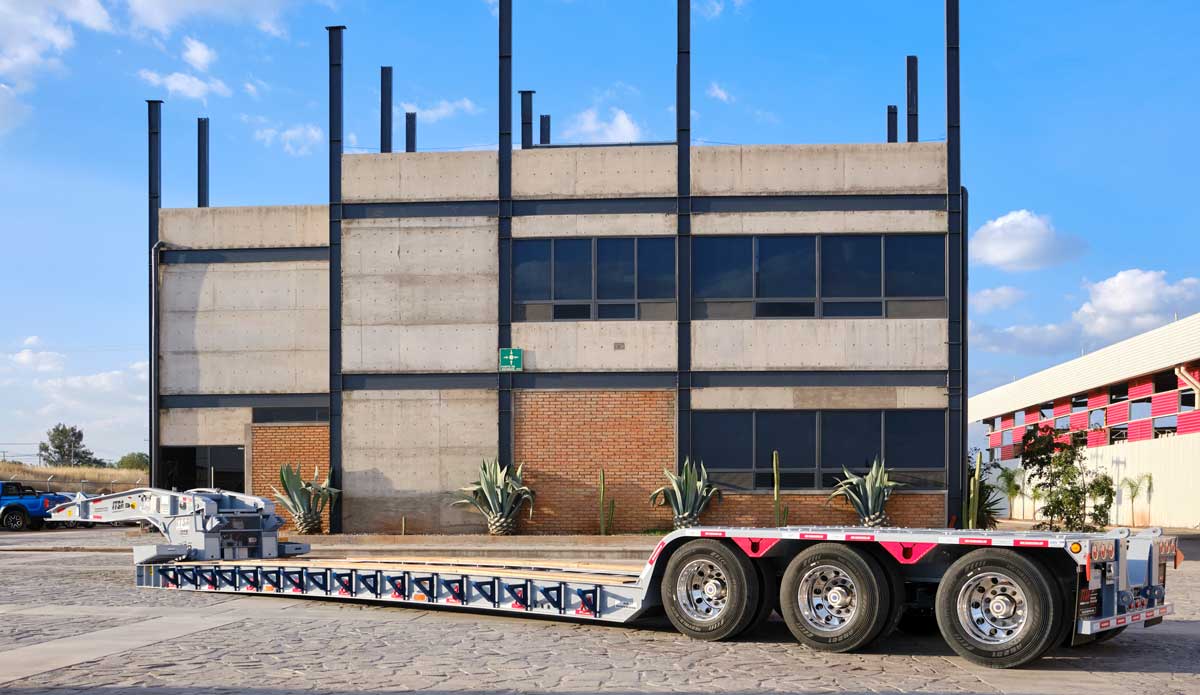

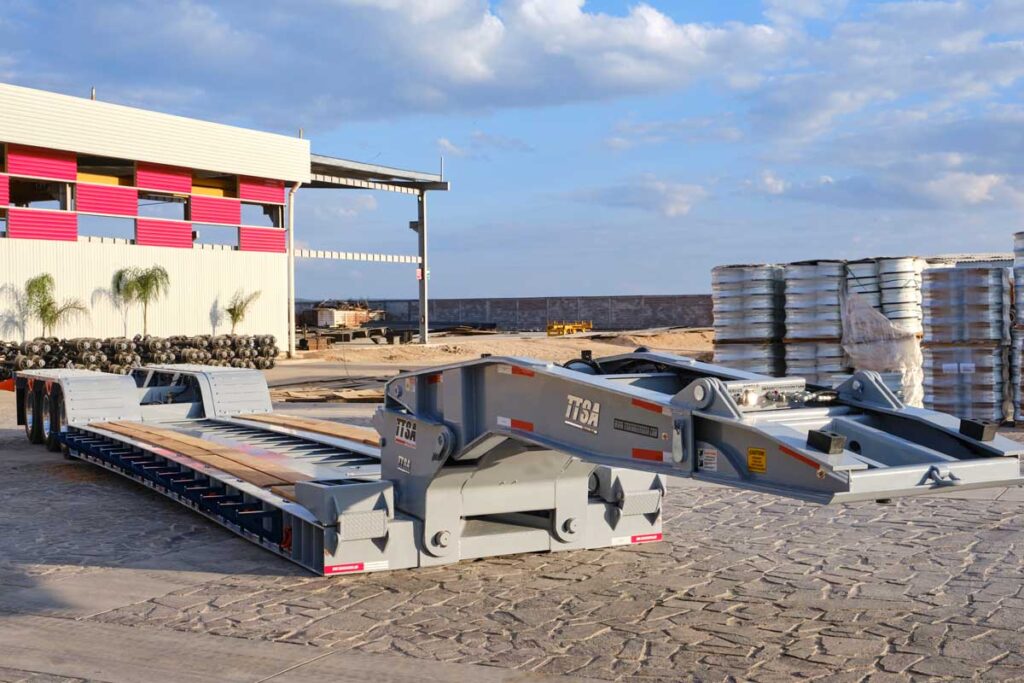

The LBD 6031 is engineered for operators who need maximum hauling capability in tight spaces. With its 21-inch deck height and 28-foot bed length, this 4-axle lowboy excels at transporting heavy equipment through restricted areas while maintaining 134,000 lbs GVWR capacity. The hydraulic detachable gooseneck and air suspension deliver the reliability that keeps jobs moving on schedule.
That ultra-low 21-inch deck height is a game-changer for tall equipment transport – clearing bridges and overpasses that stop other trailers cold. The 28-foot bed gives you the sweet spot length for most construction equipment without the permit headaches of longer units. Four axles spread the load efficiently while keeping the overall footprint manageable for urban and restricted job sites.
Tare Weight: 26,500 lbs +/- 3%
Frame Rating: 120,000 lbs
GVWR: 134,000 lbs

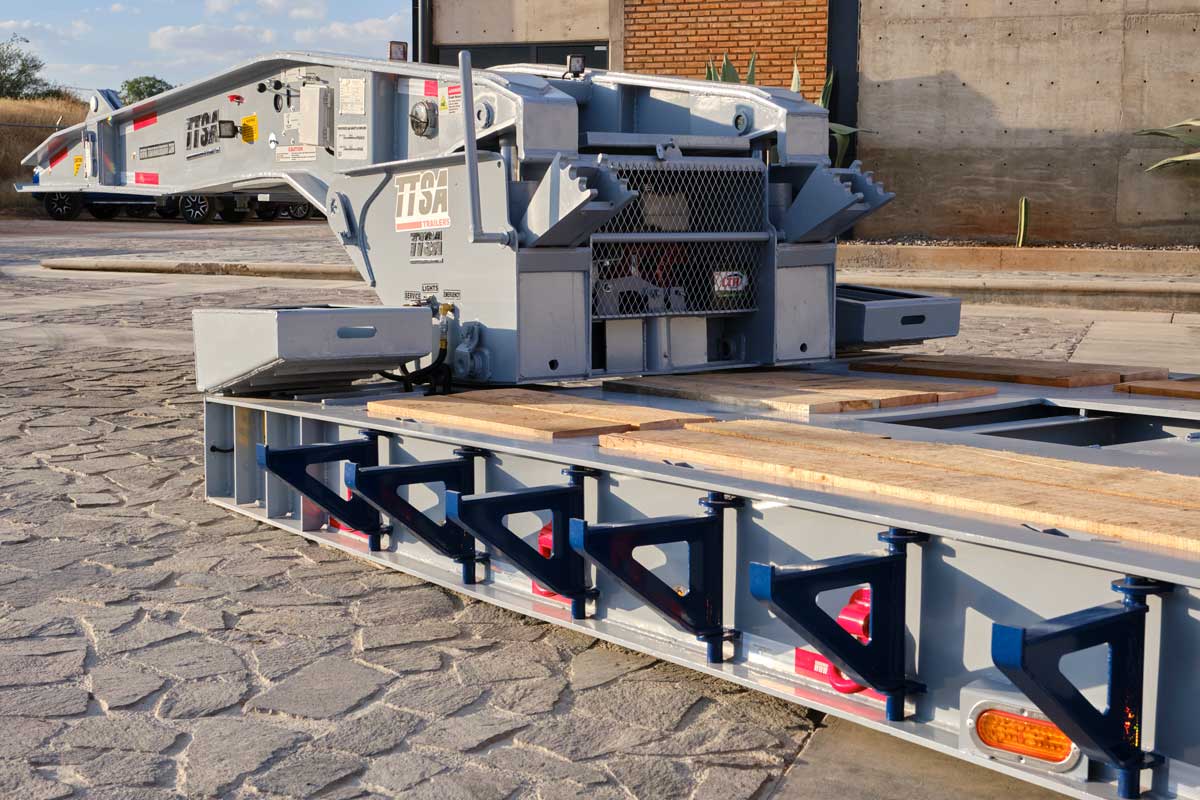

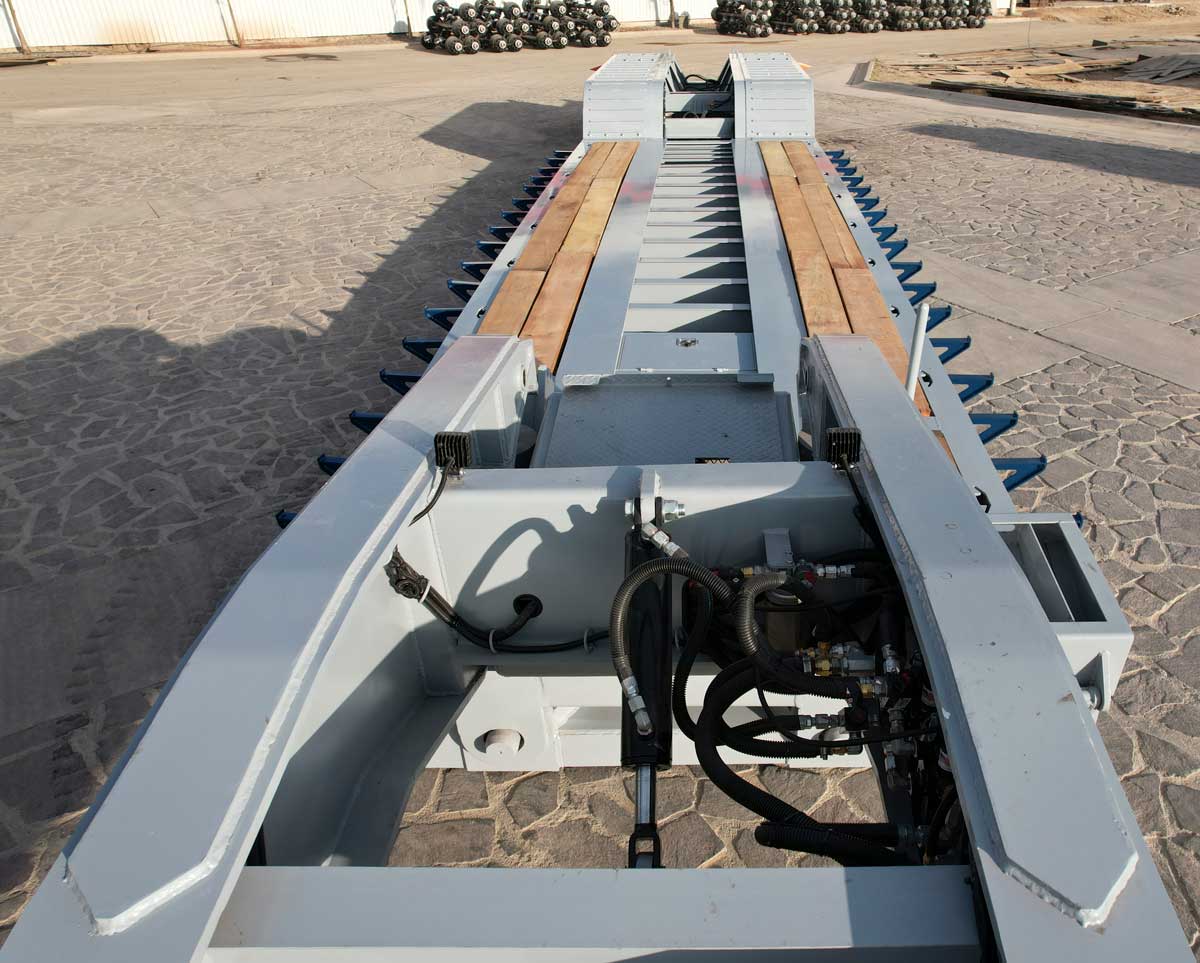

Floor: 2 inches Apitong Wood
Cross Member: Fabricated steel
Upper Coupler Assembly: 3/8″ thick pick-up plate
Fifth Wheel Height: 48 inches
Mud Flaps: 24″ x 24″ black plastic, 4 hole mounting
Kingpin Location: 14 inches from rear face of front bolster
Electrical System: 12 volt, 7-way split pin receptacle plug

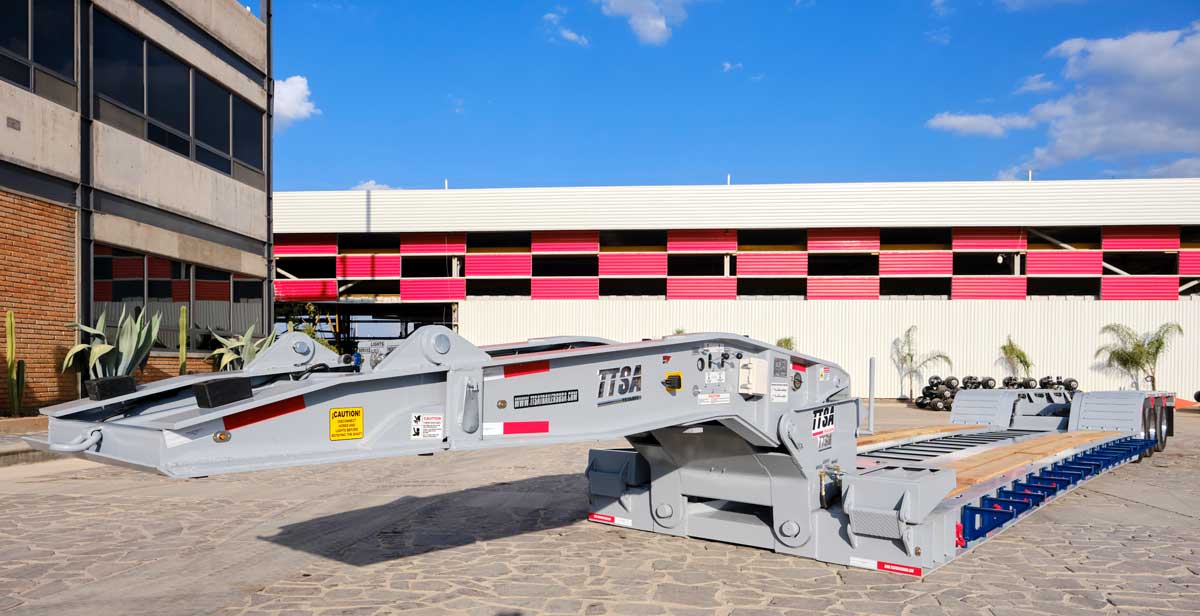

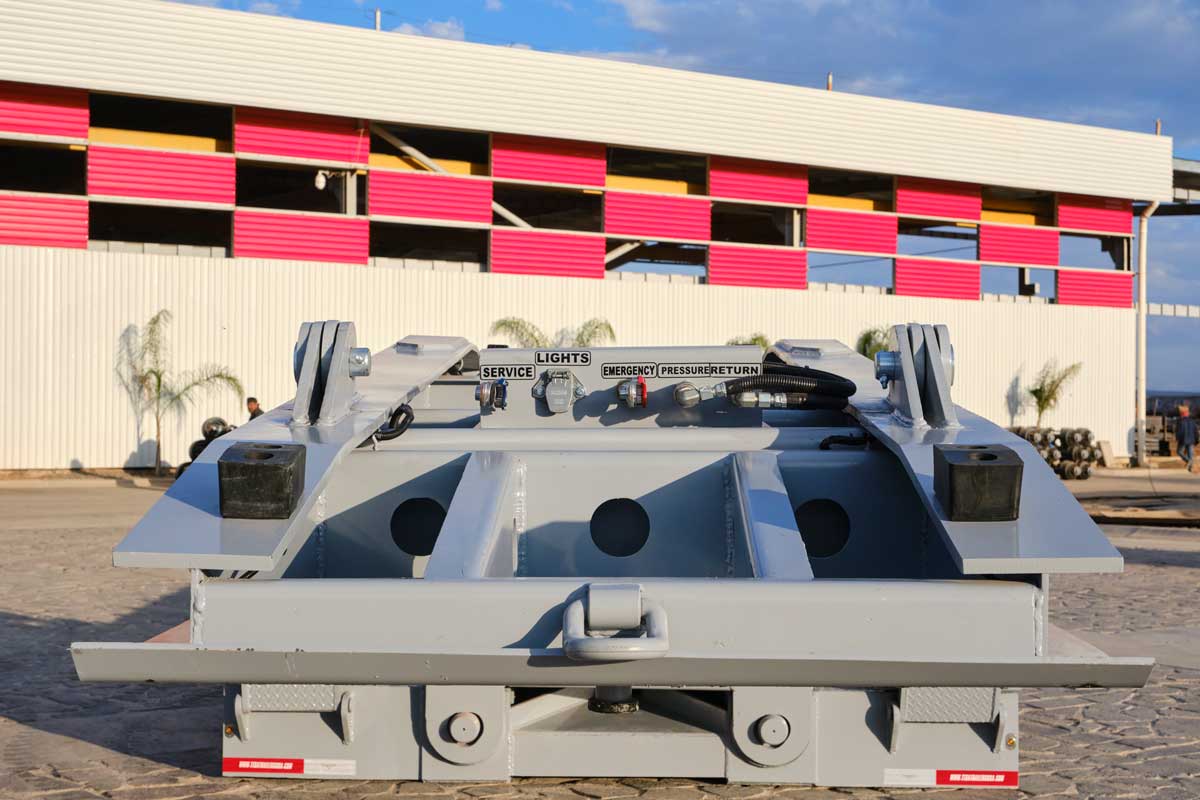

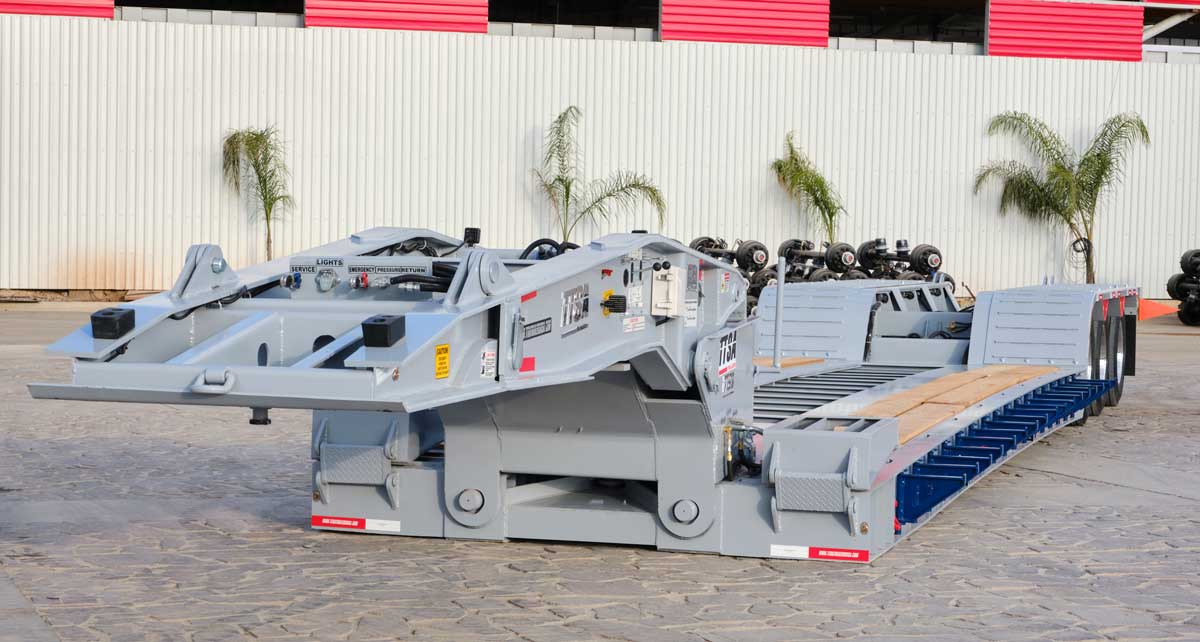

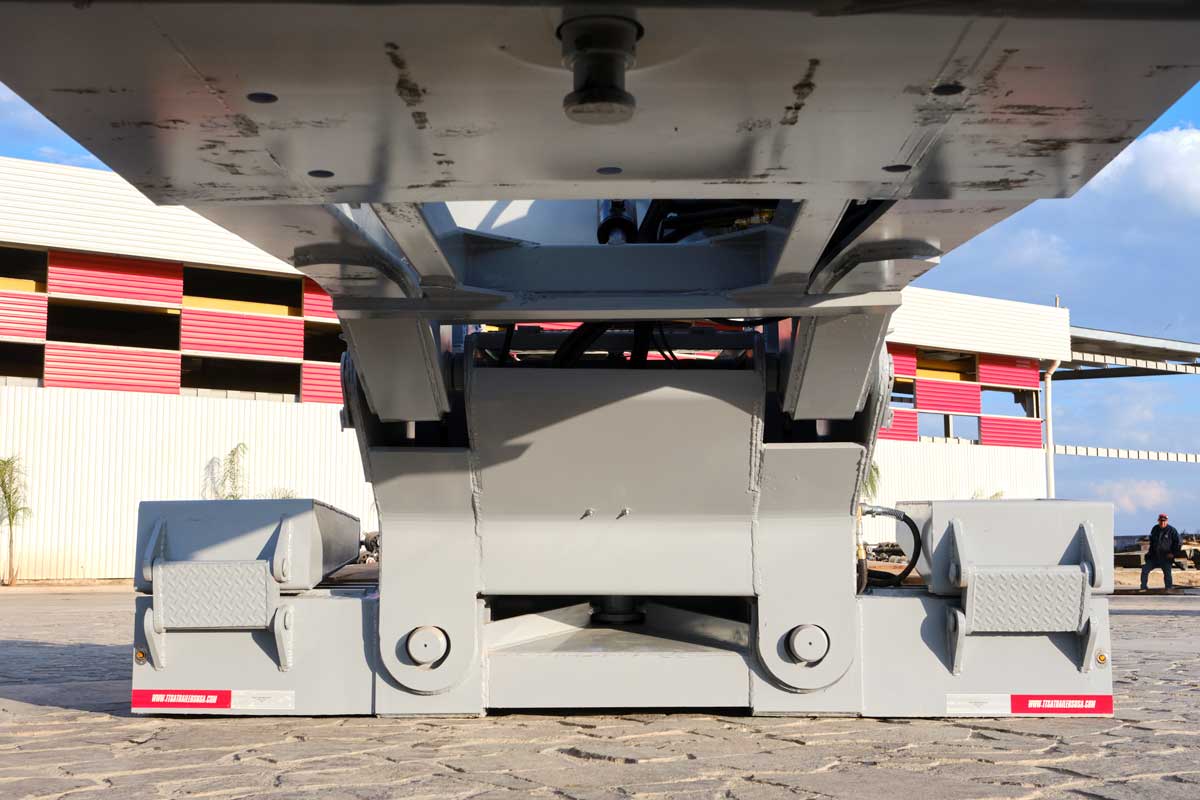

Gooseneck: Hydraulic detachable gooseneck
Overall Width: 8 feet 6 inches
Overall Length: 63 feet 8 inches
Flip 4th Axle Length: 5 feet 3.4 inches
Bed Length: 28 feet
Bed Height: 21 inches
2nd King Pin Length: 40 inches
Engine: Honda GX390
Brake System: Valve system for service brakes
ABS System: 4S2M BENDIX ABS system
Rims: 8.25″ x 22.5″
Tire Size: 295/75R22.5
Hub Type: Steel
Axle Type: 5″ round, tapered, 77.5″ long
Number of Axles: 4 (3+1 configuration)
Axle Centers: 60 inches
Suspension Type: Air Suspension
Metal Preparation: Clean, dry steel and commercial blast cleaning
Primer: Zinc-rich primer
Topcoat: Urethane
