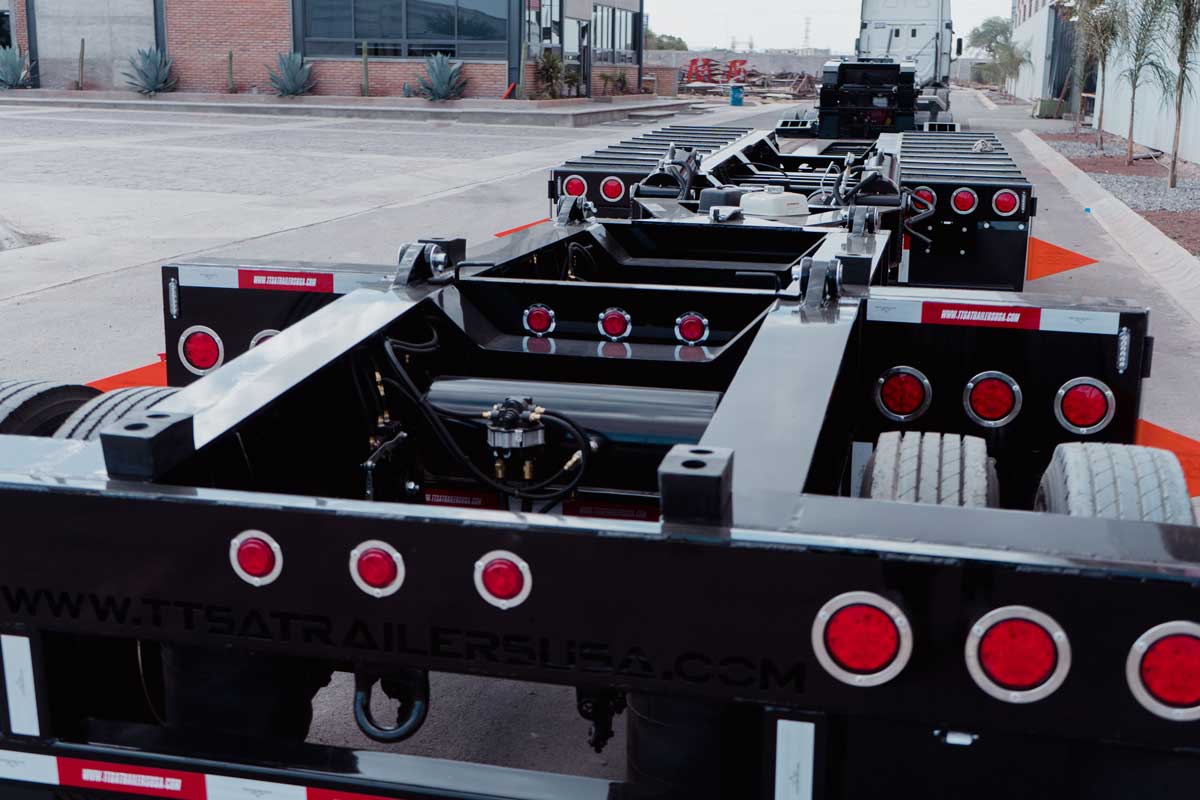

Heavy Hauling. Precision Engineering. Proven Power.
The Lowboy 65 is built for the toughest loads and the most demanding transport needs. Designed with a hydraulic detachable gooseneck, robust air suspension, and heavy-duty materials throughout, this trailer offers unmatched performance, flexibility, and reliability.
General Specs
Tare Weight: Approximately 26,500 lbs.
GVWR: 134,000 lbs.
Floor: 2 inches Wood
Cross Member: Fabricated steel
Upper Coupler Assembly: 5/16″ thick pick-up plate
Fifth Wheel Height: 48 inches
Mud Flaps: 24″ x 24″ black plastic, 4 hole mounting
Kingpin Location: 14 inches from rear face of front bolster.
Electrical System: 12 volt, 7-way split pin receptacle plug

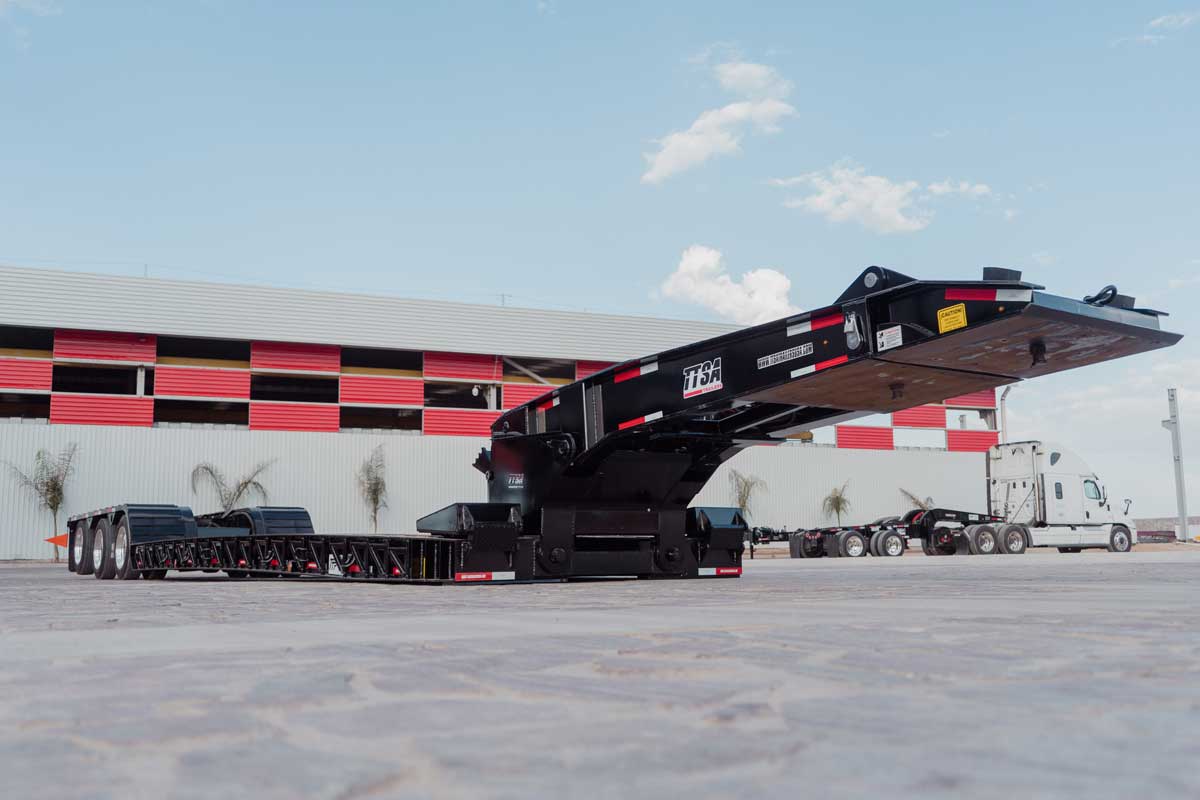

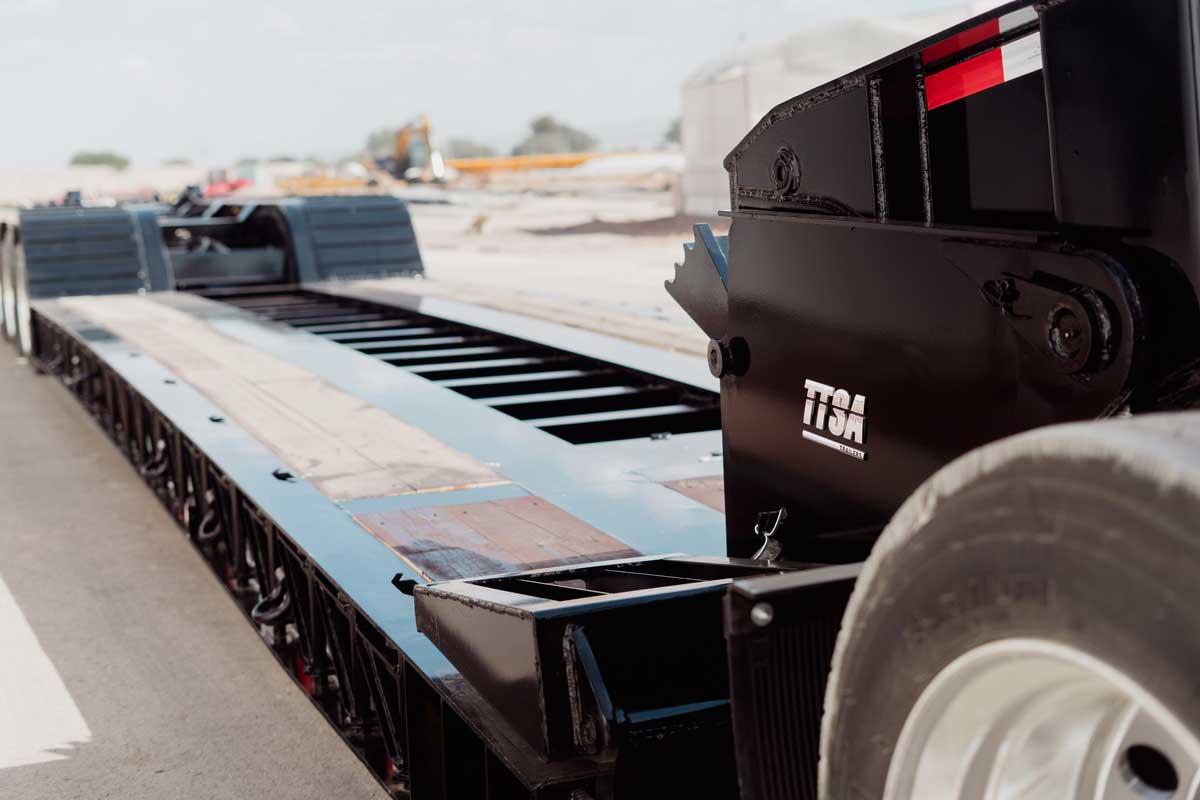

Gooseneck Beams: Hydraulic detachable gooseneck
Dimension
Overall Width: 102 inches
Overall Length: 61 feet 1.32 inches
Flip 4th Axle Length: 5 feet 3.4 inches

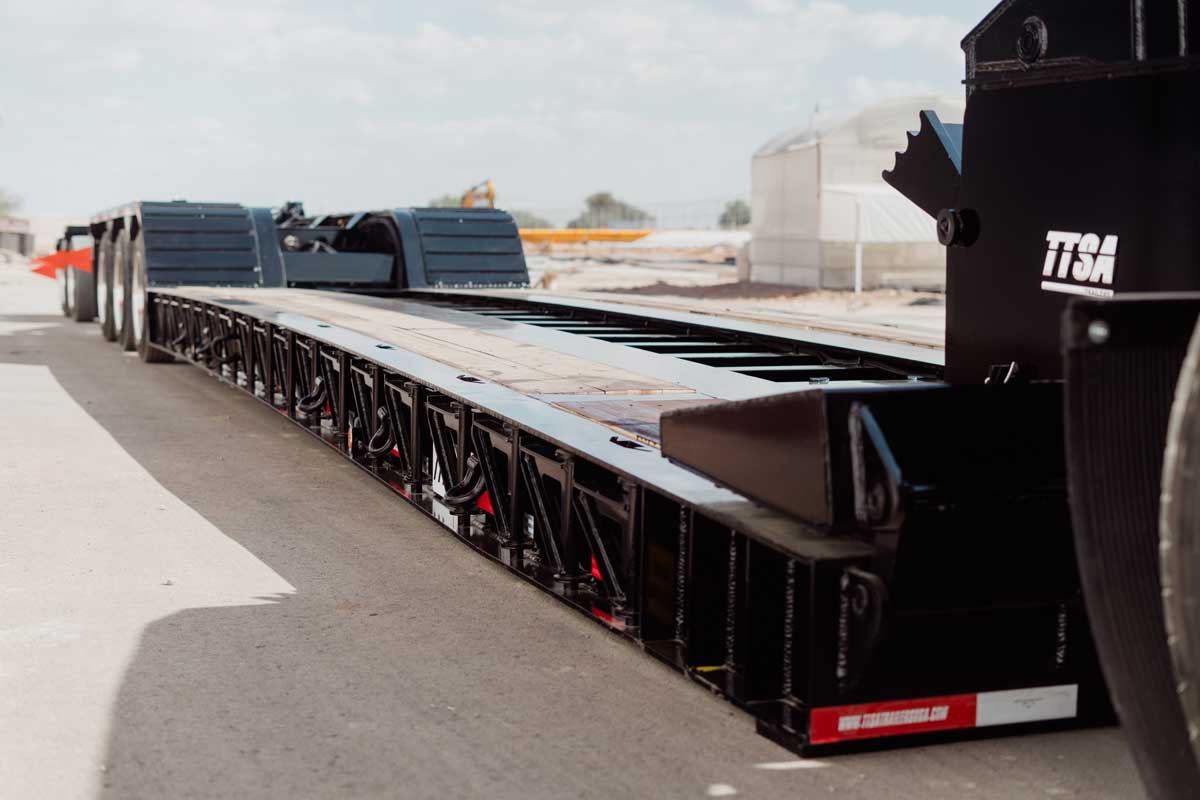

Bed Length: 26 feet
Bed Height: 28 inches
2nd king pin Length: 34 inches

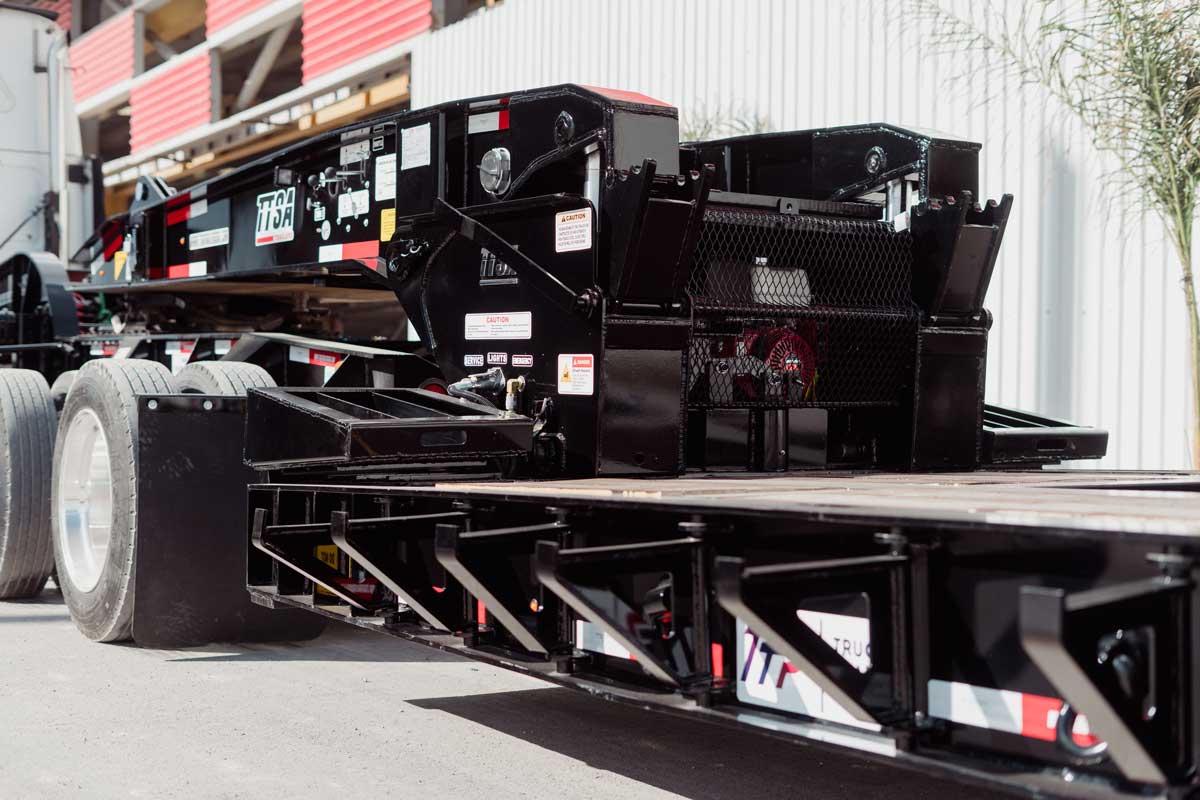

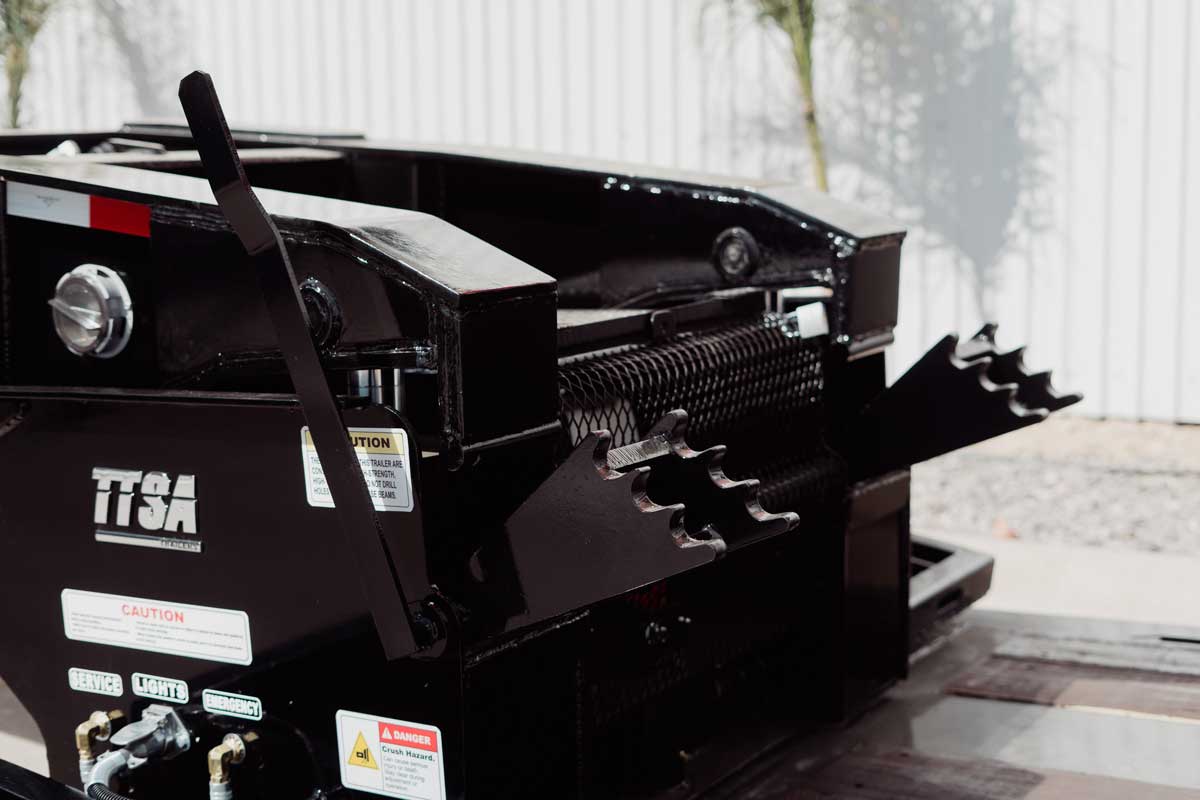

Hydraulic Power Source
Engine: Honda GX 390
Horse Power: 13 HP
Fuel: Gasoline
Starter: Electric and Manual
Pump: 3600 psi
Displacement: 0.4 cu in / rev
Reservoir: Self Hydraulics Reservoir
Lighting
Light Attachment: Flange mounted
Light Type: LED
Brakes
Drum: Steel outboard mounted
Lubrication: Synthetic Grease
Brake System Type: 4X2M
Brake Champers: 30/30
Wheels
Rims: 8.25″ x 22.5″
Tire Size: 255/70R22.5
Hub Type: Aluminum
Axles
Axle Type: 5″ round, tapered, 77.5″ long
Axle Quantity: Three

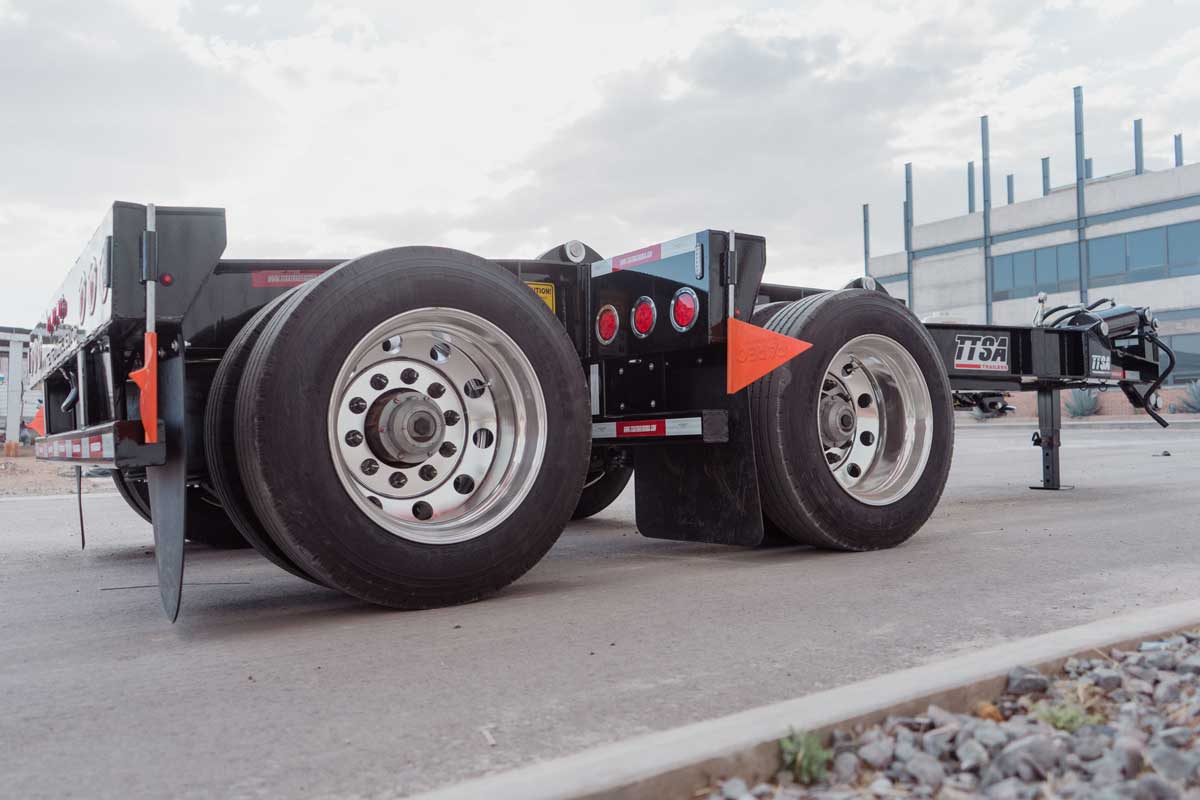

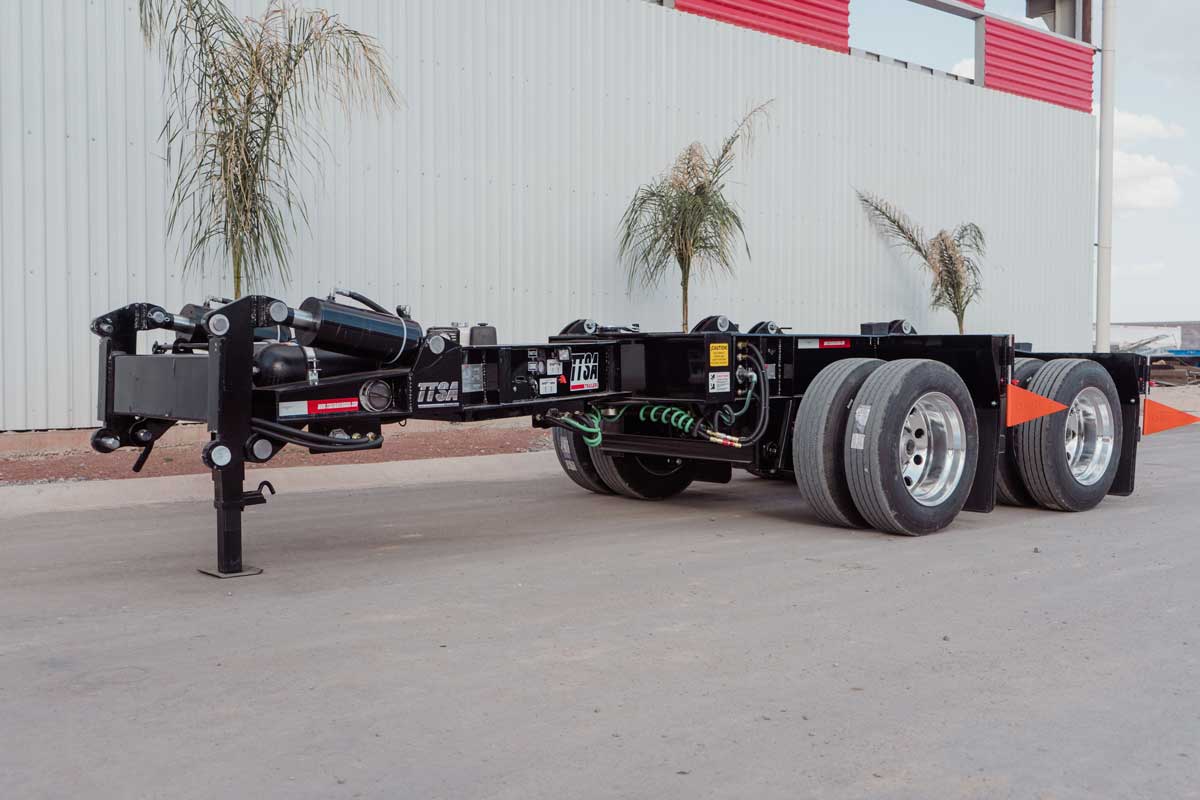

Fourt axle: Flip 4th axle
Axle Centers: 60 inches
Axle Location: 31 inches from rear
Suspension
Suspension Type: Air Suspension
FInish
Metal Preparation: Clean, dry steel and commercial blast cleaning
Primer: Zinc-rich primer
Topcoat: Urethane
