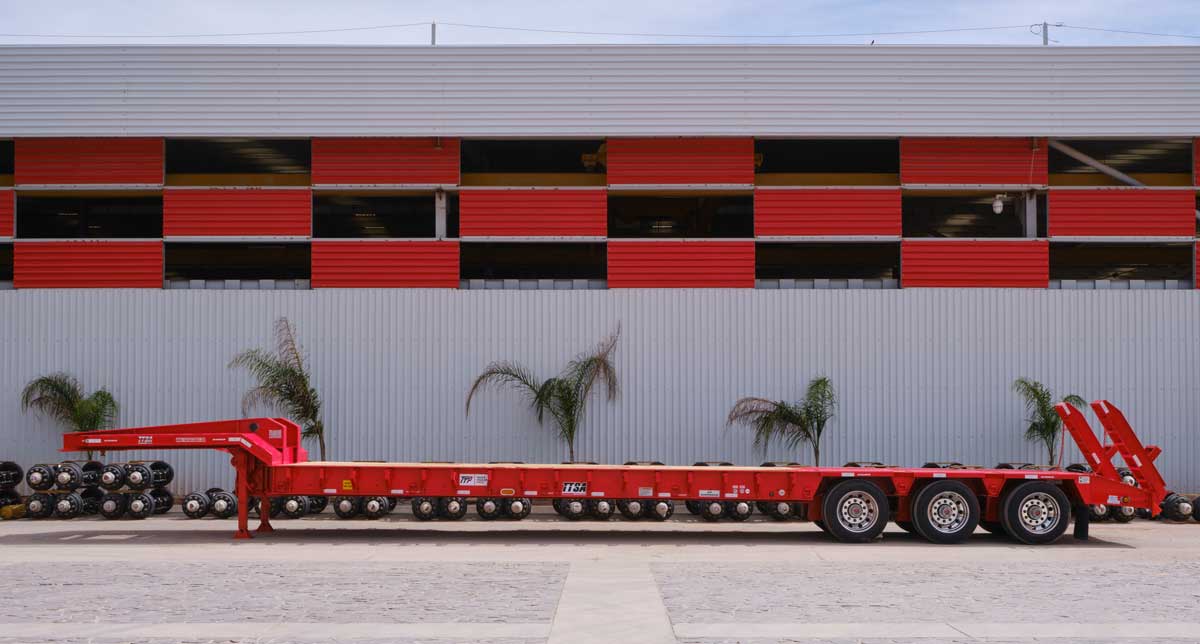

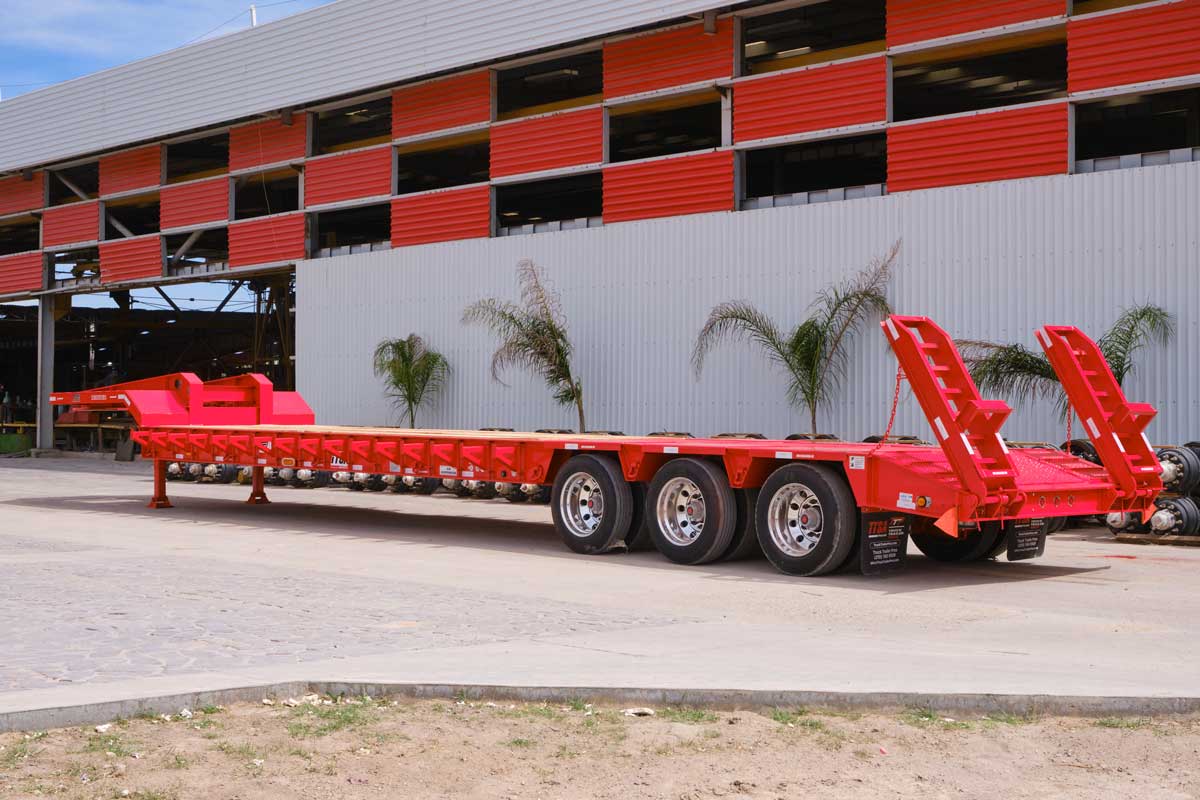

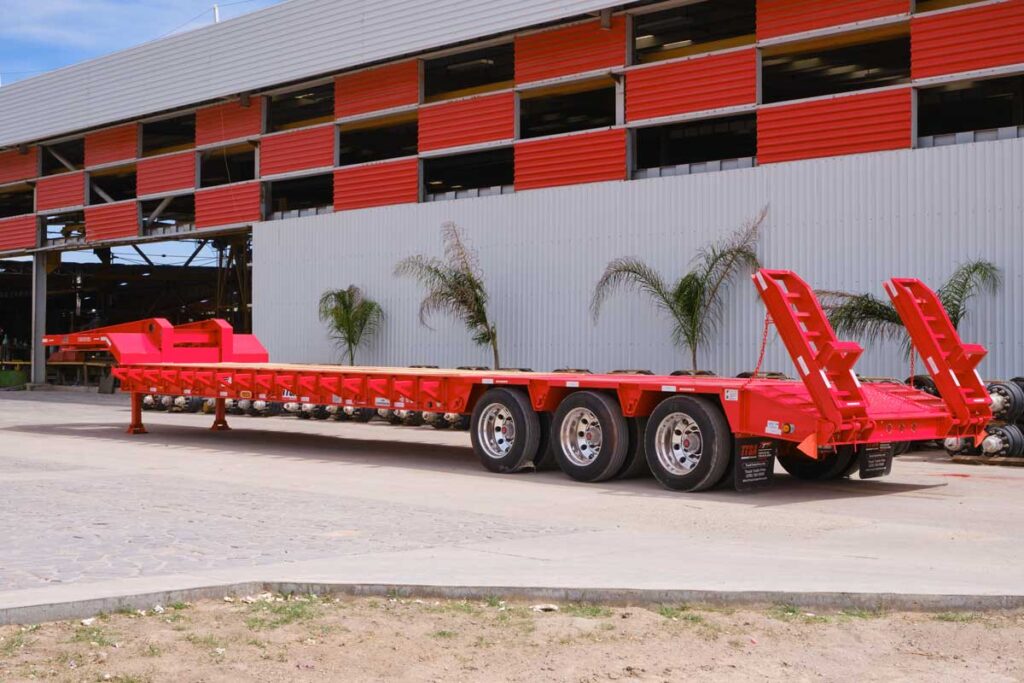

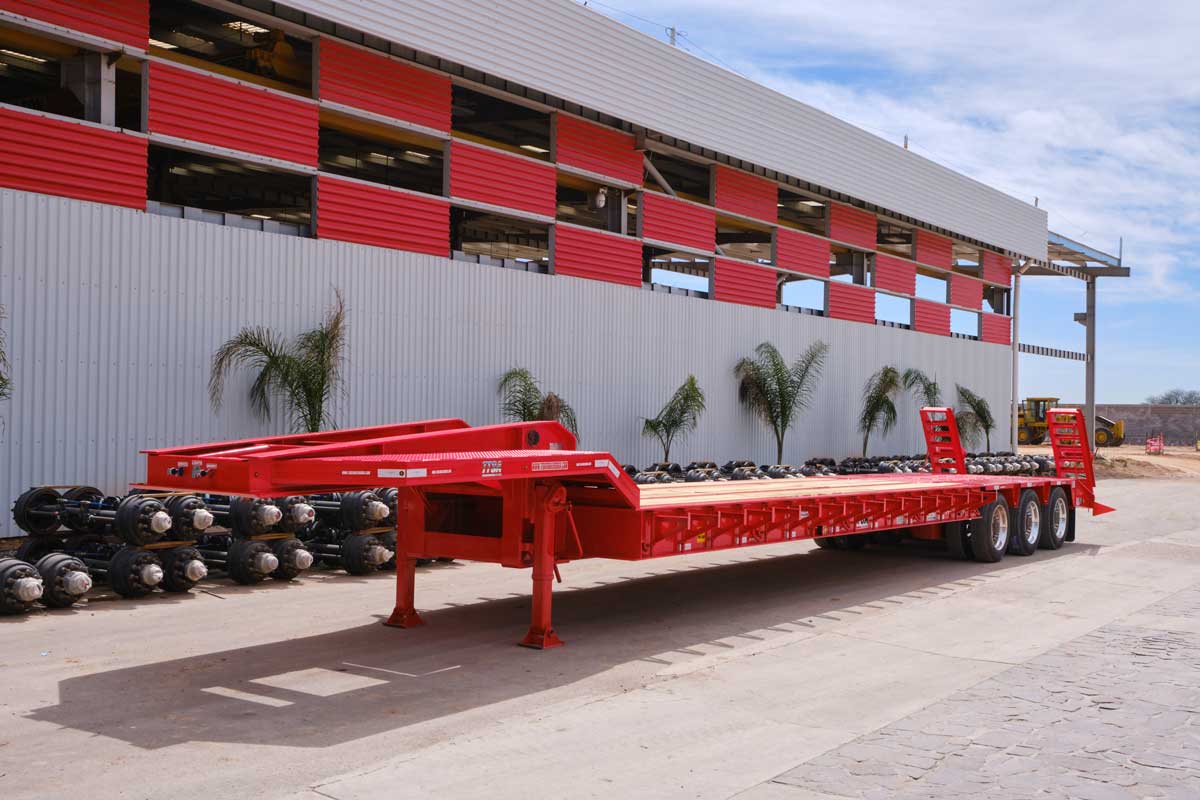

Heavy-Duty Transport, Maximum Stability
Engineered for strength, reliability, and high-capacity performance, the Lowboy Fixed Trailer is built to tackle the most demanding hauls. With a rugged steel construction and advanced air suspension, this trailer offers superior load distribution and road handling, making it ideal for heavy equipment transport and industrial applications.
General Specs
Tare Weight: Approximately 22,000 lbs.
GVWR: 134,000 lbs
Floor: Wood at 2 1/2″
Cross Member: Fabricated steel
Upper Coupler Asembly: 3/8″ thick pick-up plate
Fifth Wheel Height: 49 inches

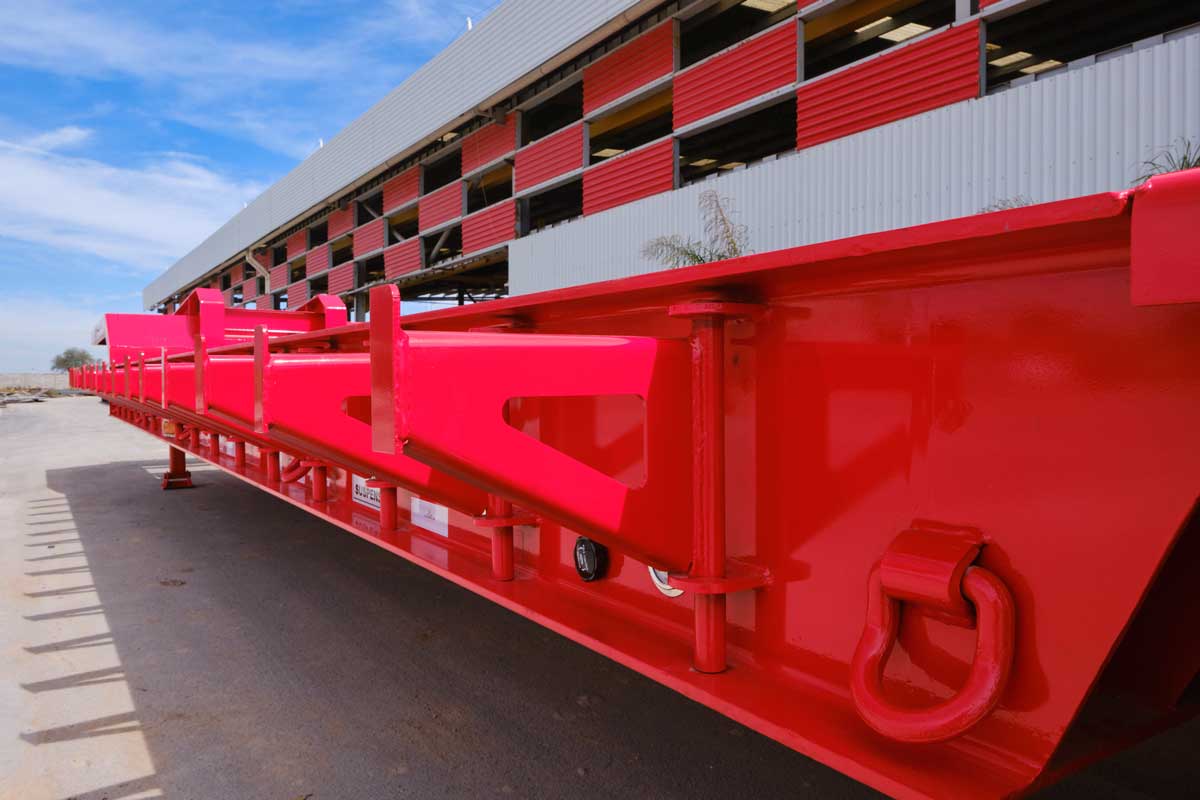

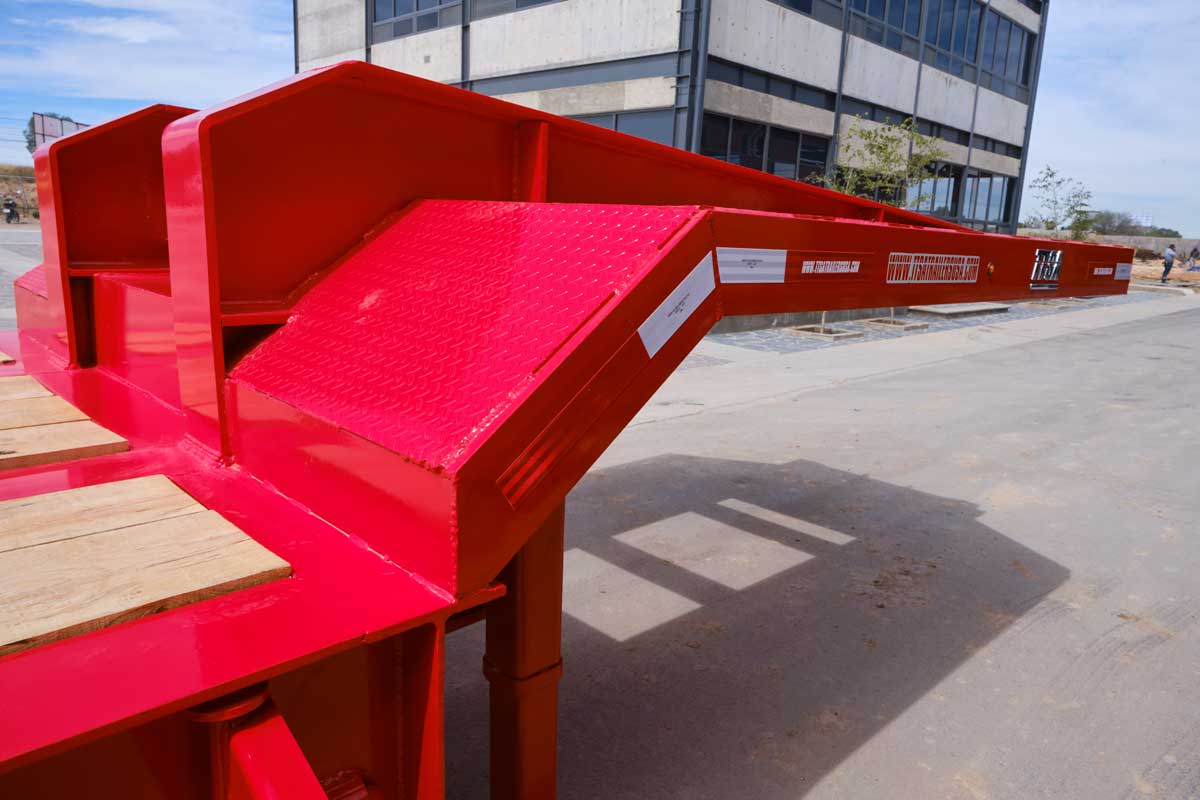

Neck: Loading Lateral Neck Extensions
Mud Plans: 24″ x 24″ black plastic, 4 hole mounting
Electrical System: 12 volt, 7-way split pin receptacle plug

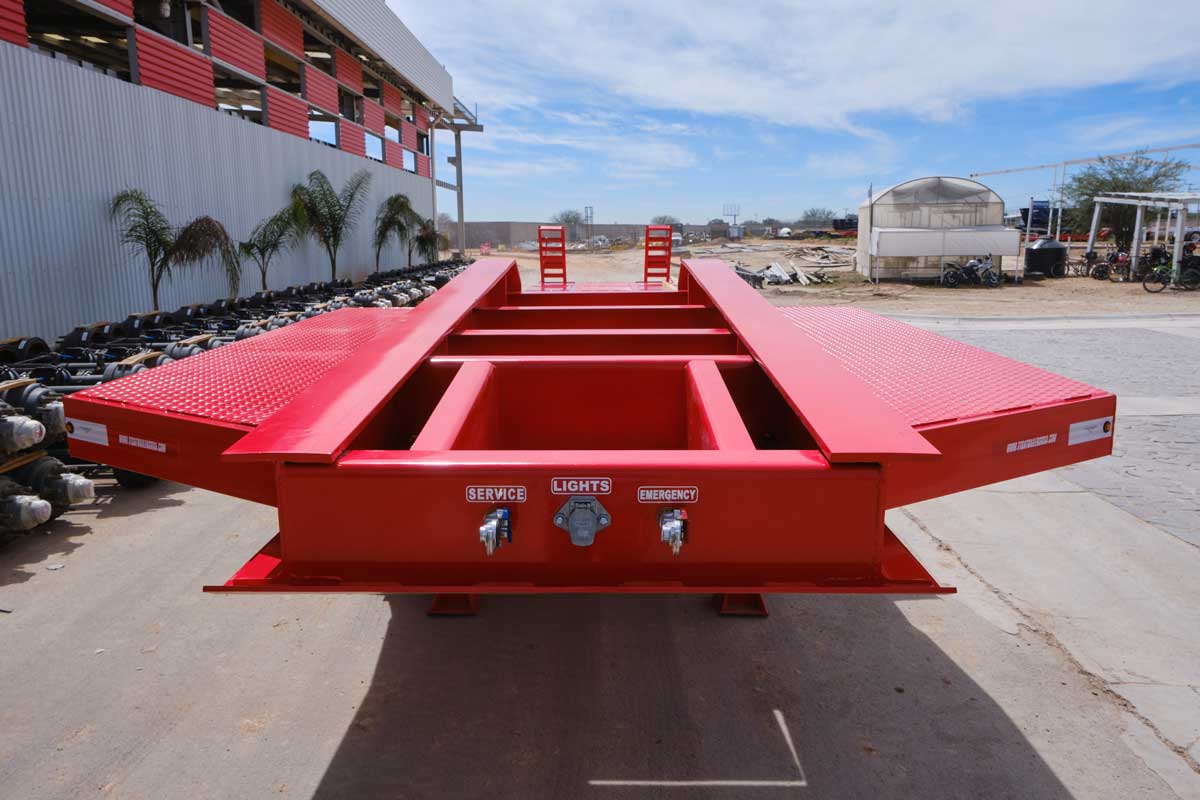

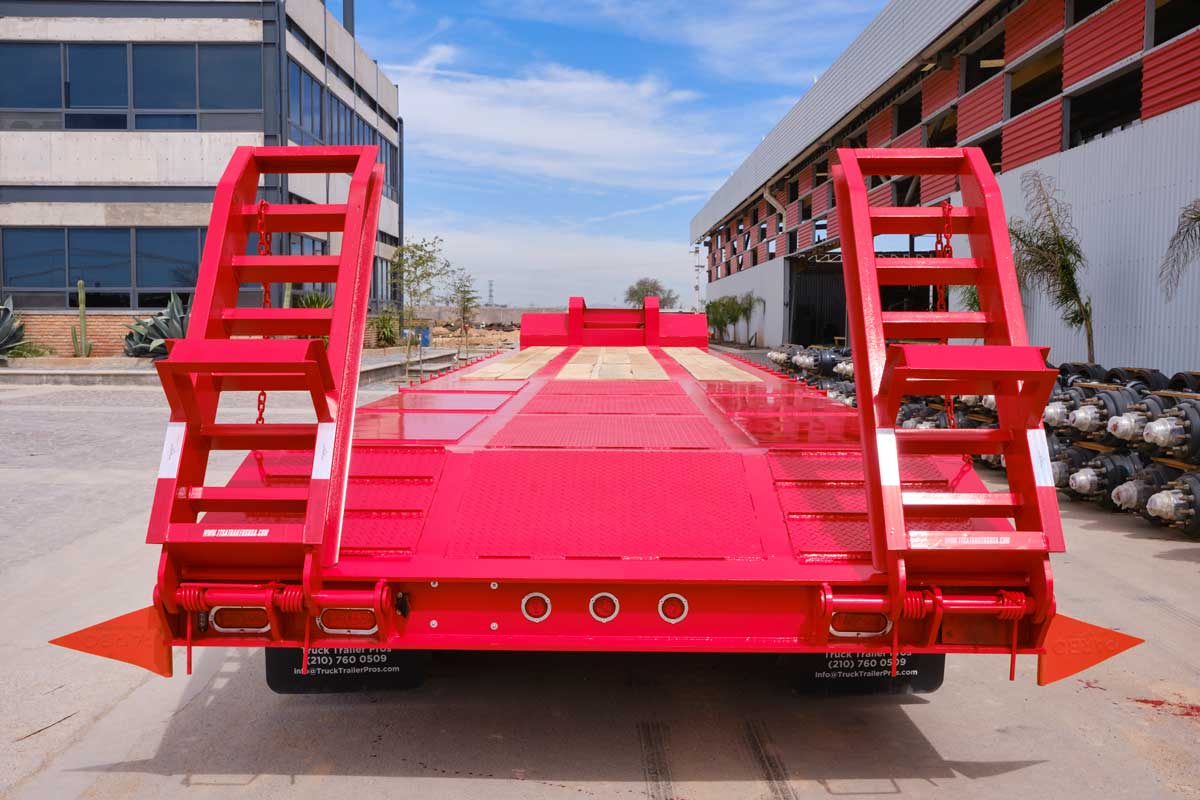

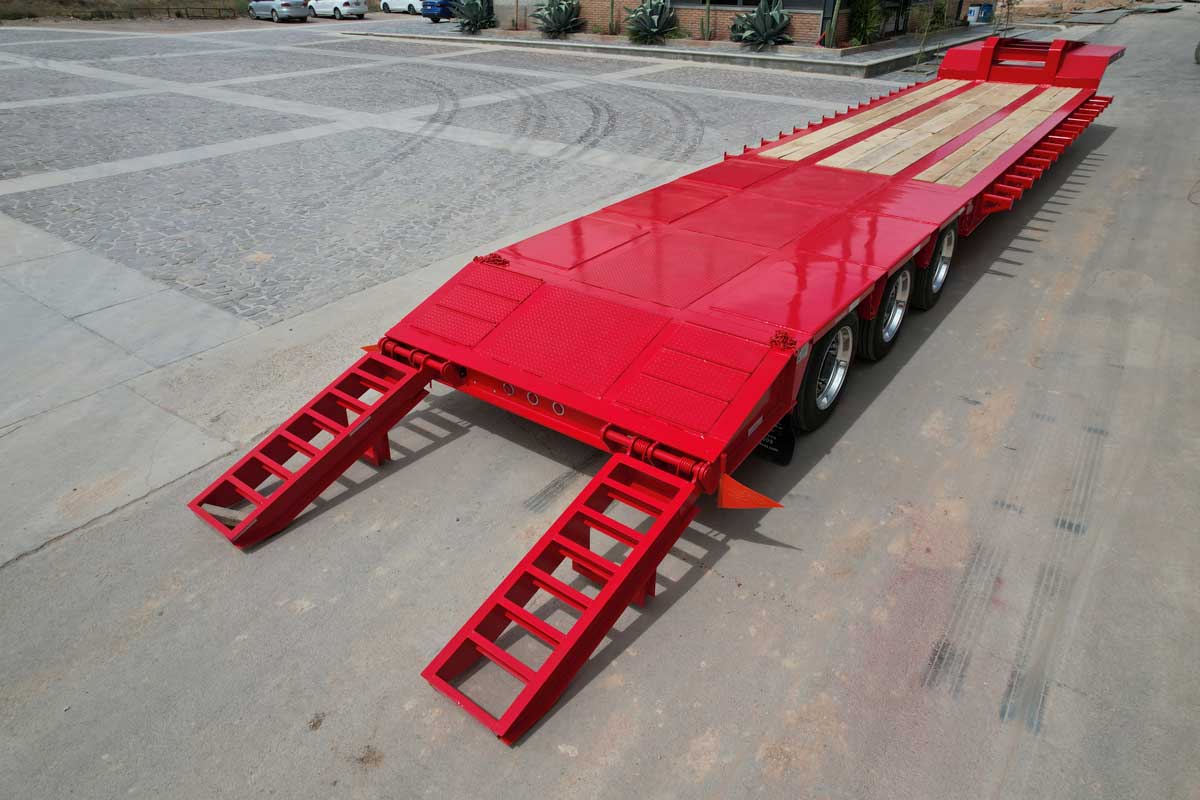

Tail: Manual ramps
Dimensions
Overall Width: 102 inches
Overall Length: 53 feet
Bed Height: 40 inches

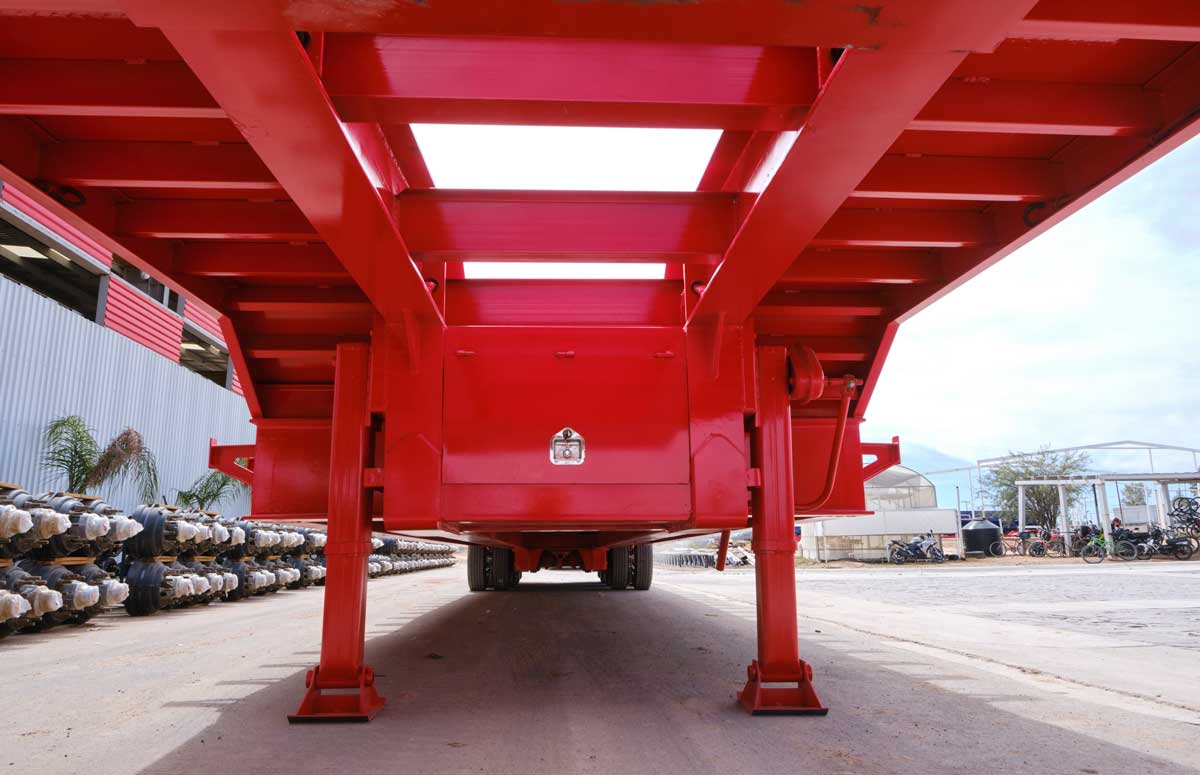

Landing Gear
Landing Gear: Two speed, square led. 60,000 lbs lift capacity and 170,000 lbs. static load capacity
Landing Gear Foot Group: 10″ x 9.5″ low profile sandshoe
Crank Handle Location: Roadside
Lighting
Light Attachment: Flange mounted
Light Type: LED
Brakes
Drum: Steel outboard mounted
Lubrication: Synthetic Grease
Brake System Type: 4S2M
Brake Chambers: 30/30

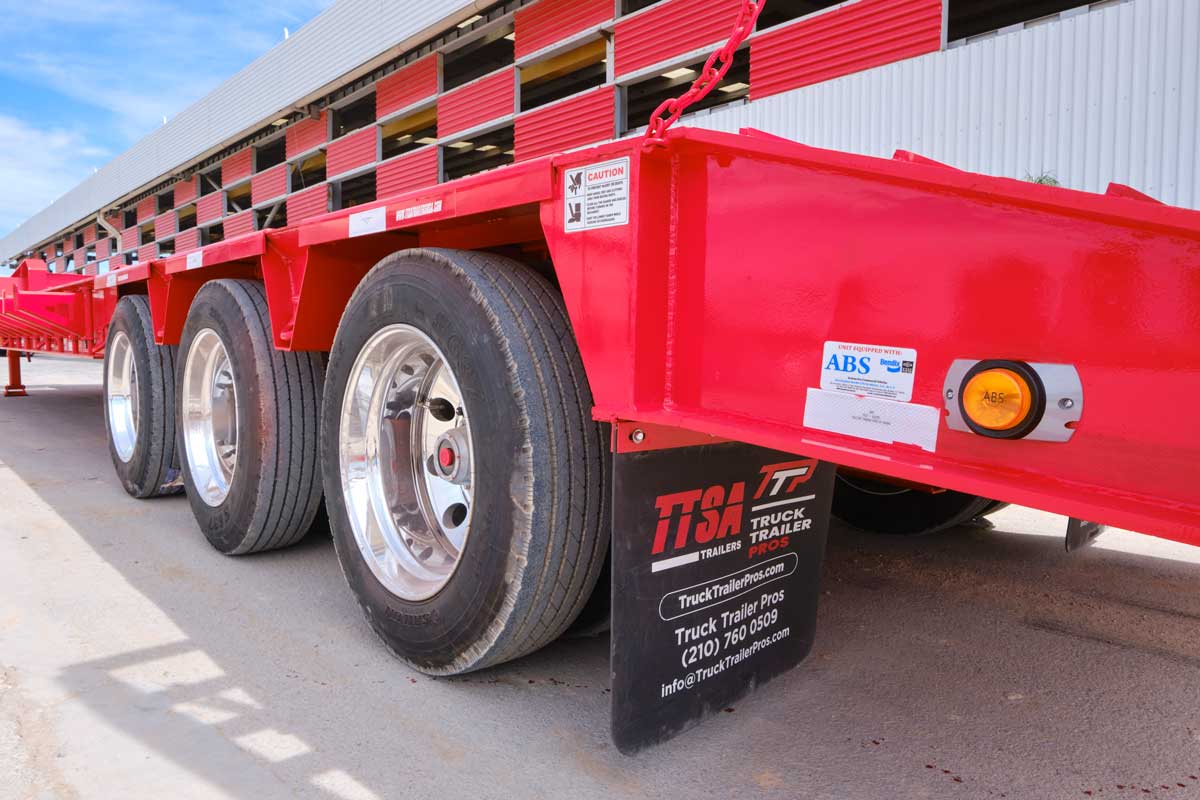

Wheels
Rims: 8.25″ x 22.5″
Tire Size: 255/70R22.5
Hub Type: Steel
Axles
Axle Type: 5″ round, tapered, 77.5″ long
Axle Quantity: Three
Axle Centers: 51 inches
Kingpin Location: 16 inches from rear face of front bolster
Suspension
Suspension Type: Air Suspension
Finish
Metal Preparation: Clean, dry steel and commercial blast cleaning
Primer: Zinc-rich primer
Topcoat: Urethane
We understand that financing a trailer comes with a whole lot of details that may be too technical for you. This is why we have experts to guide you every step of the way. Talk to one of our experts and find the answers to all your queries.
