Lowboy Mini Deck 40

Ultra-Low Deck. Maximum Versatility. Built for Precision Hauling.

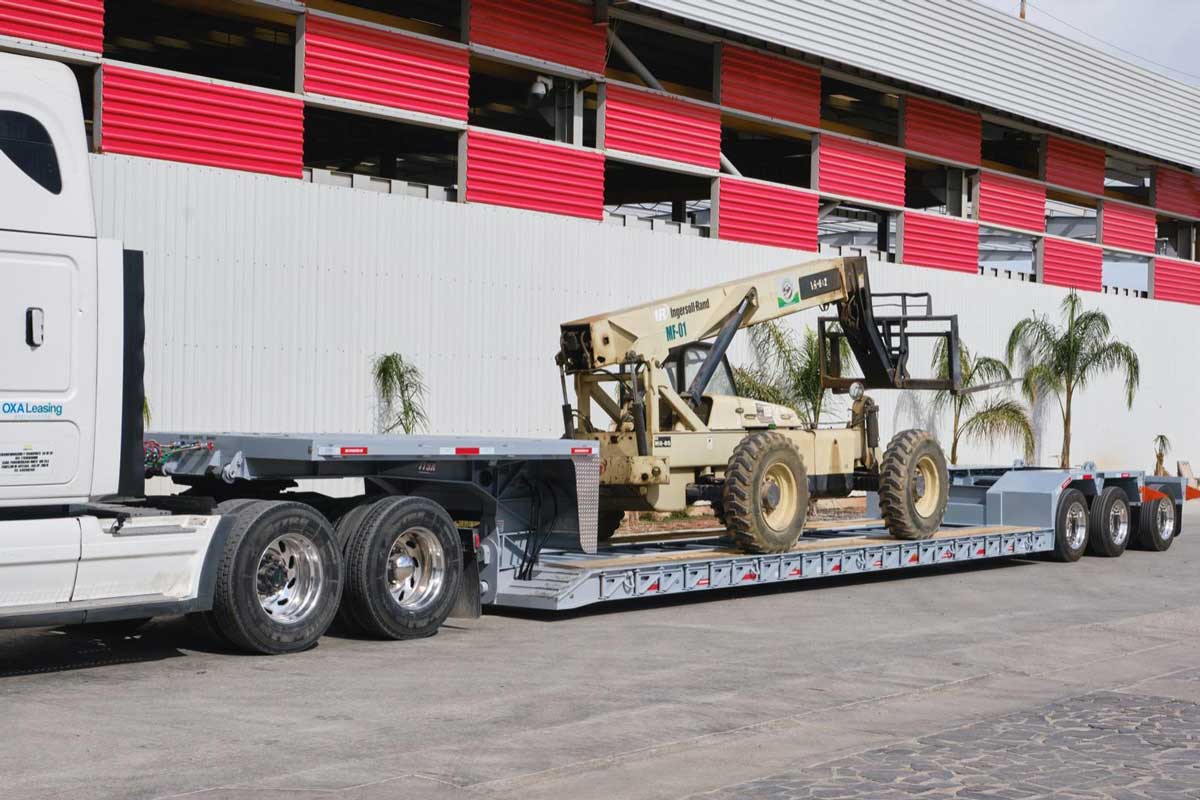

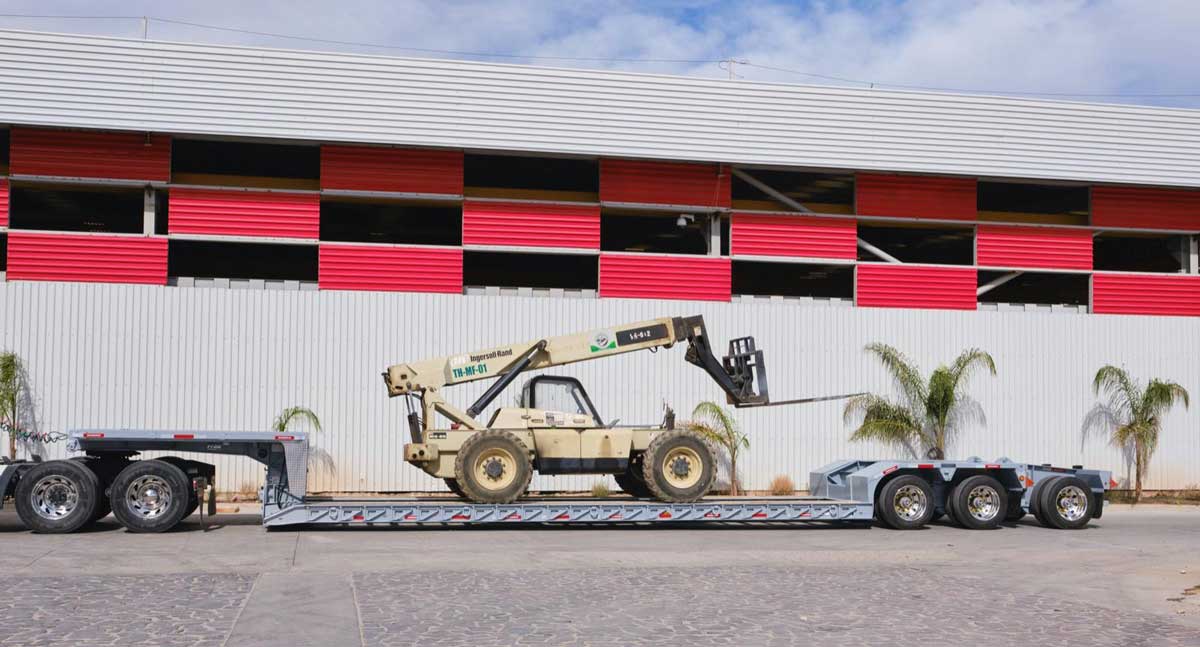

The Lowboy Mini Deck 40 is purpose-built for transporting tall and oversized equipment with ease. Its ultra-low 15″ deck height and 30-foot well allow for greater vertical clearance while maintaining maximum payload capacity. With a mechanical detachable gooseneck, high frame rating, and air ride suspension, this trailer offers a powerful combination of performance, precision, and accessibility for today’s demanding haulers.

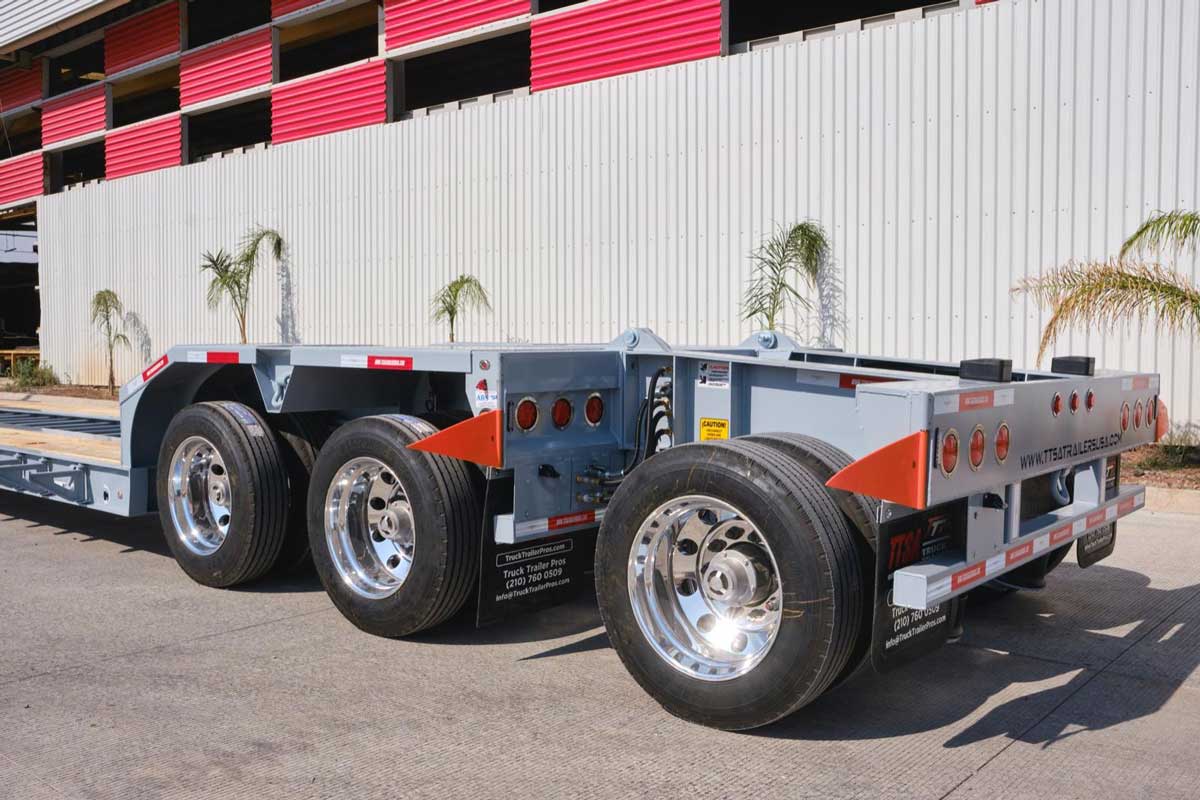

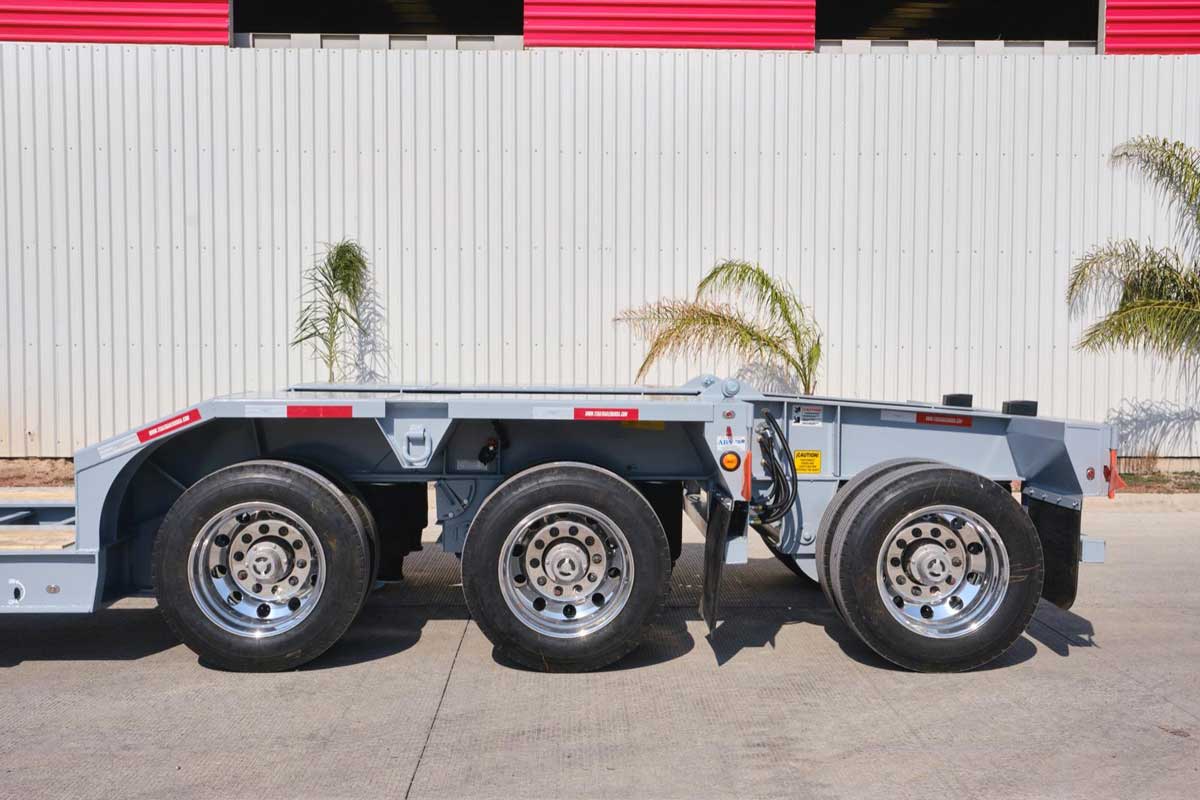

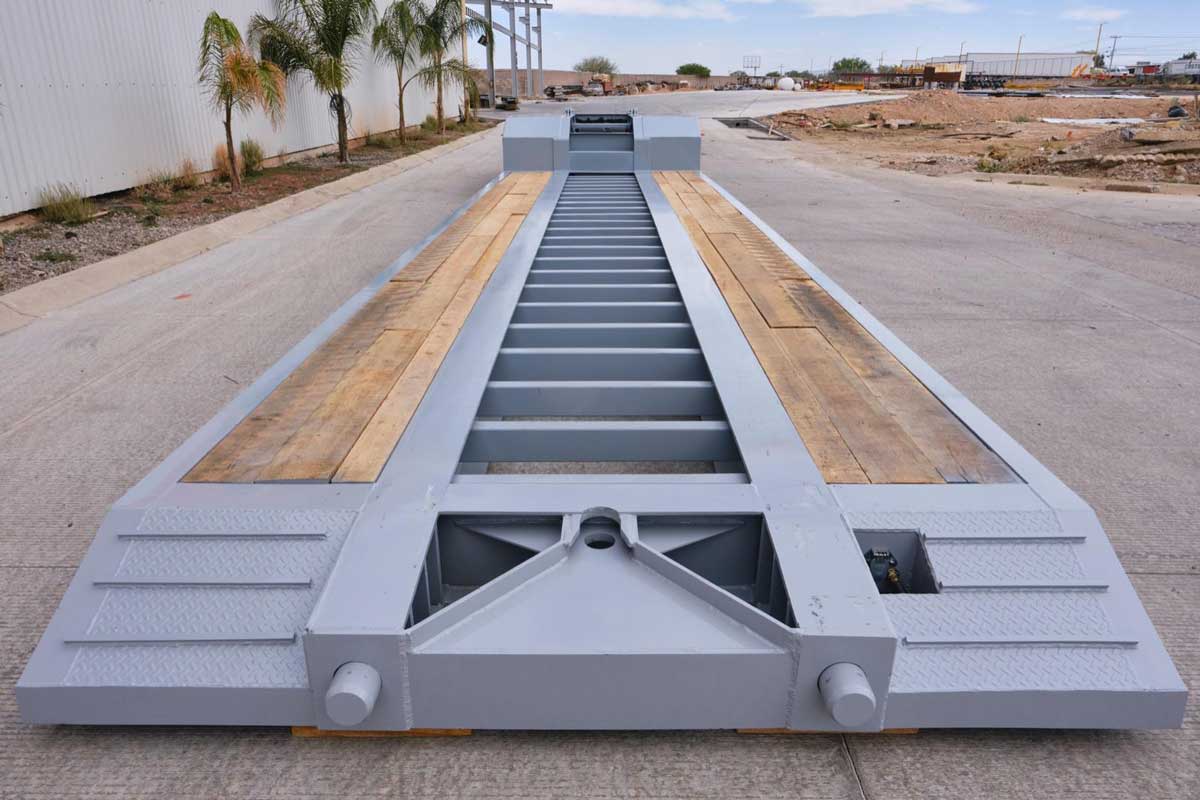

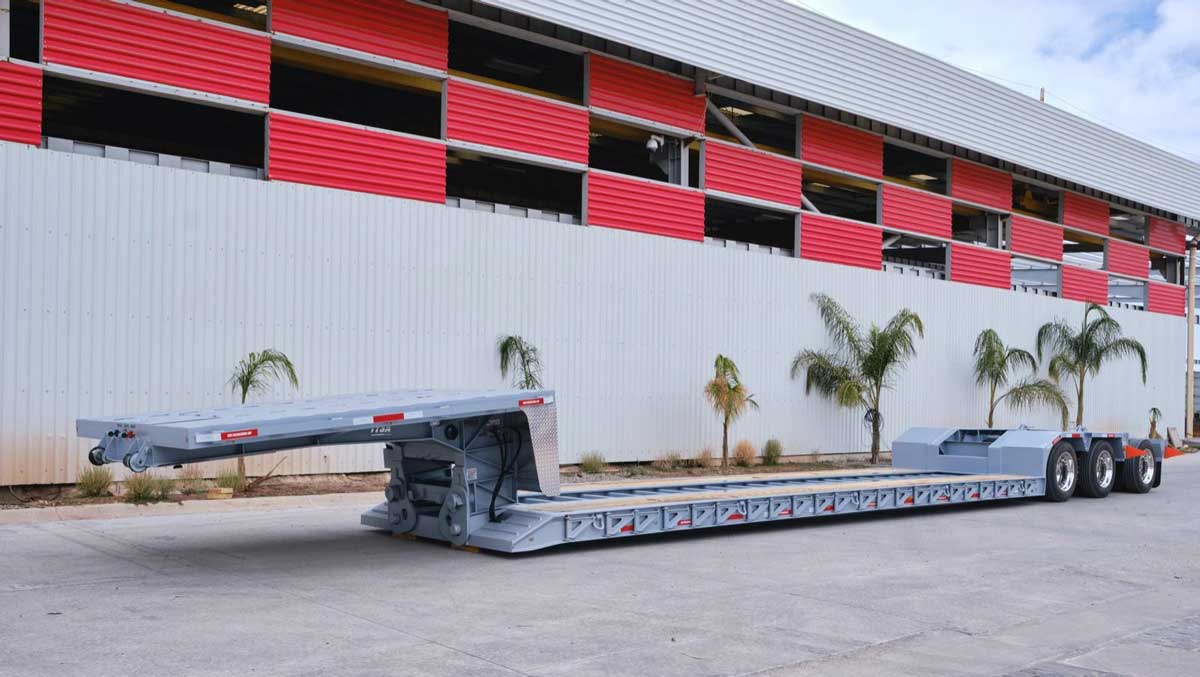

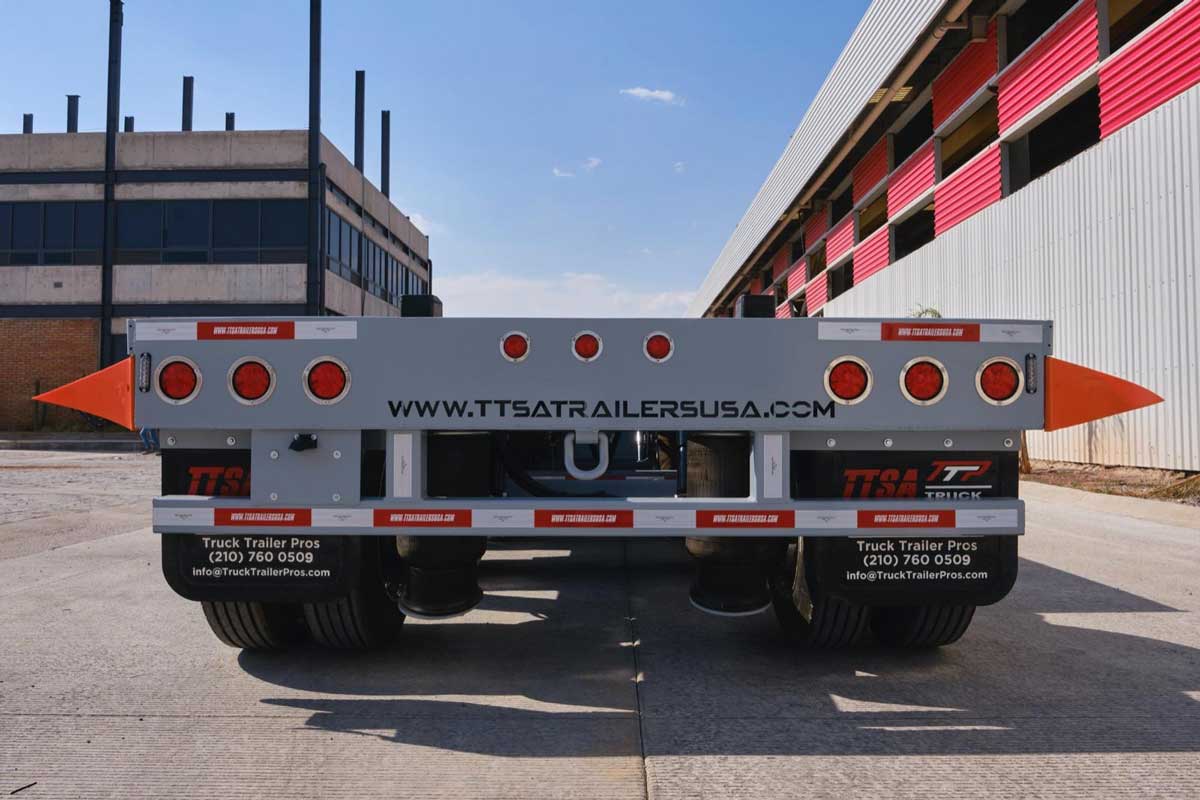

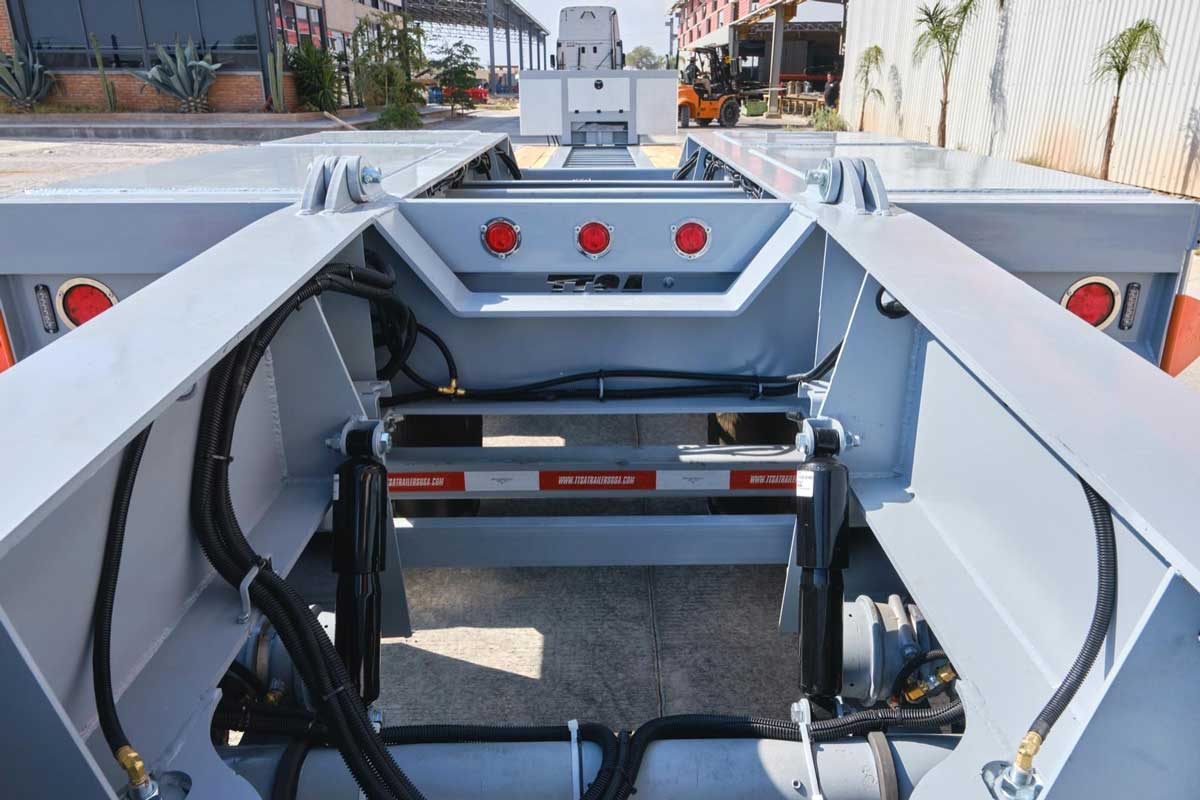

Product Gallery

GENERAL SPECIFICATIONS

Dimensions

Overall Width: 102 inches
Overall Length: 56 feet 2 inches
Well: 30 feet
Bed Height: 15 inches
Kingpin Location: 28 feet
Bed Height: 16 inches from rear face of front bloster
Fifth Wheel Height: 48 inches
Number of axles: 2 + 1
Tare Weight: 18,600 lbs. +/- 3%
Fram Rating: 80,000 lbs
GVWR: 106,800 lbs

Standard Features

Cross Member: Fabricated steel

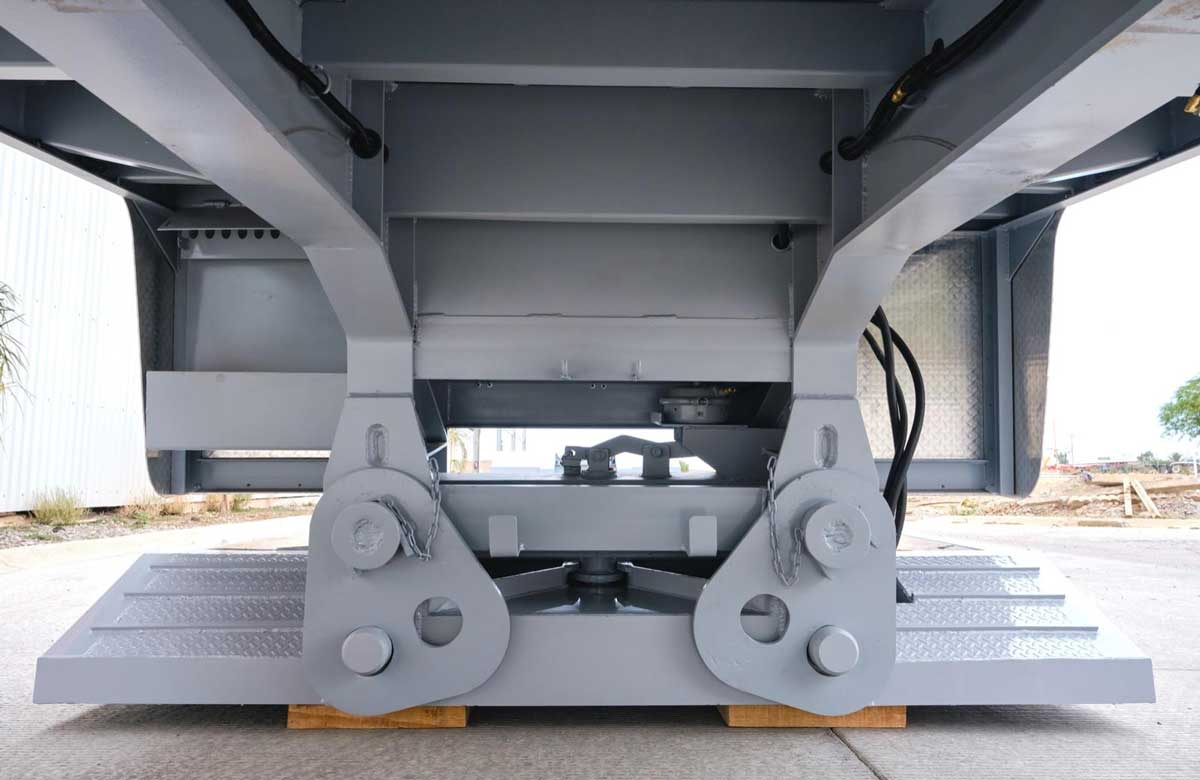

Gooseneck: Mechanical Detachable Gooseneck
Mud Flaps: 24″ x 24″ black plastic, 4 hole mounting
Electrical System: 12 volt, 7-way split pin receptacle plug
Floor: 2 inches Apiton Wood
Rims: 8.25″ x 22.5″
Tire Size: 255 / 70R22.5 Aluminum
Hub Type: Steel
Axle Type: 5″ round, tapered, 77.5″ long
Axle Centers: 55 inches

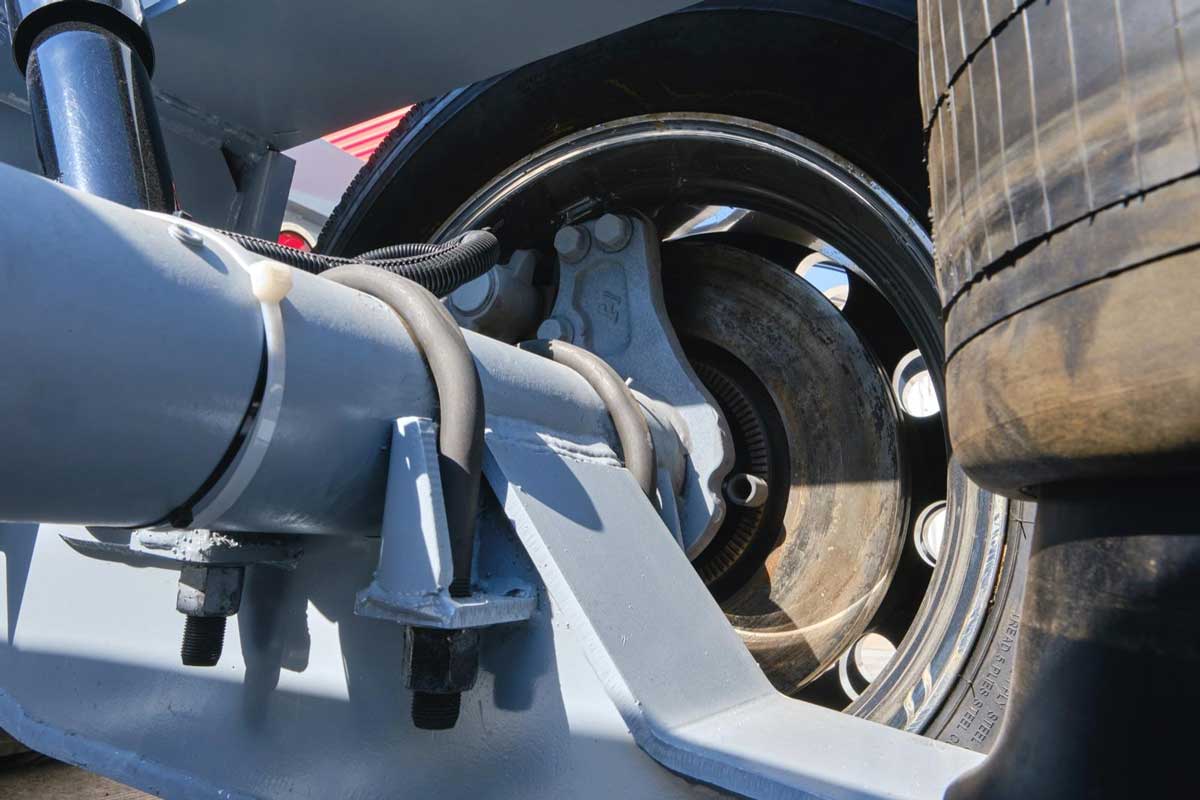

Suspension Type: Air Suspension
Brake System: Valve system for service brakes. 4S2M BENDIX ABS System
Brake Type: Drum Brakes / Disc Brakes
Metal preparation: Clean, dry steel and commercial blast cleaning
Topcoat: Electrostatic Powered Coating
