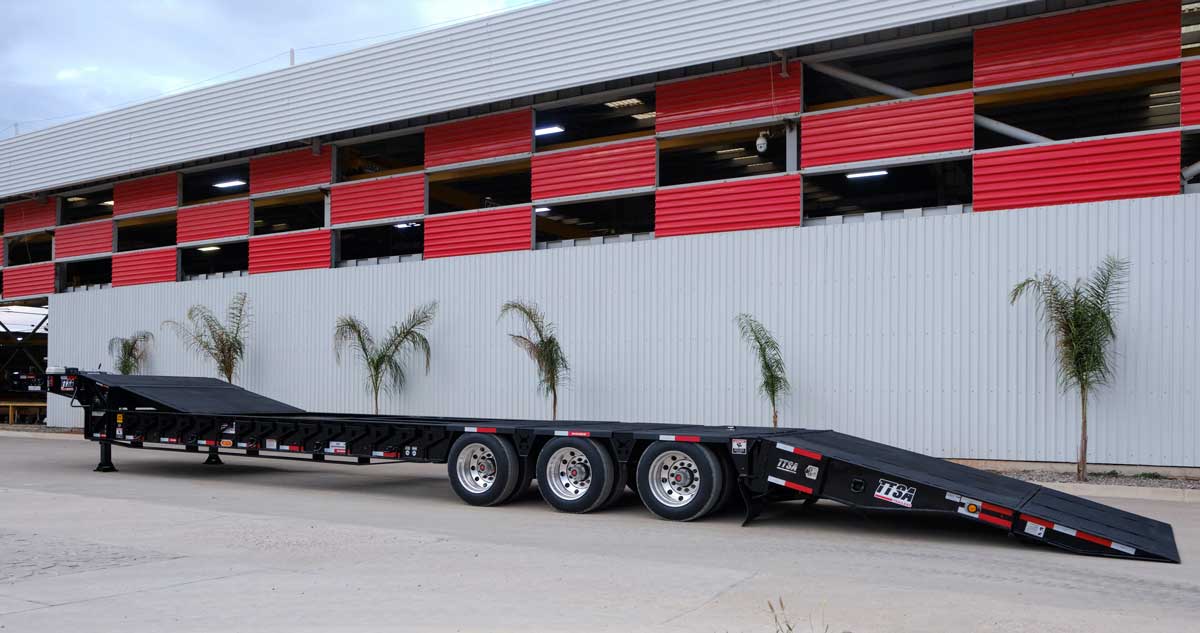

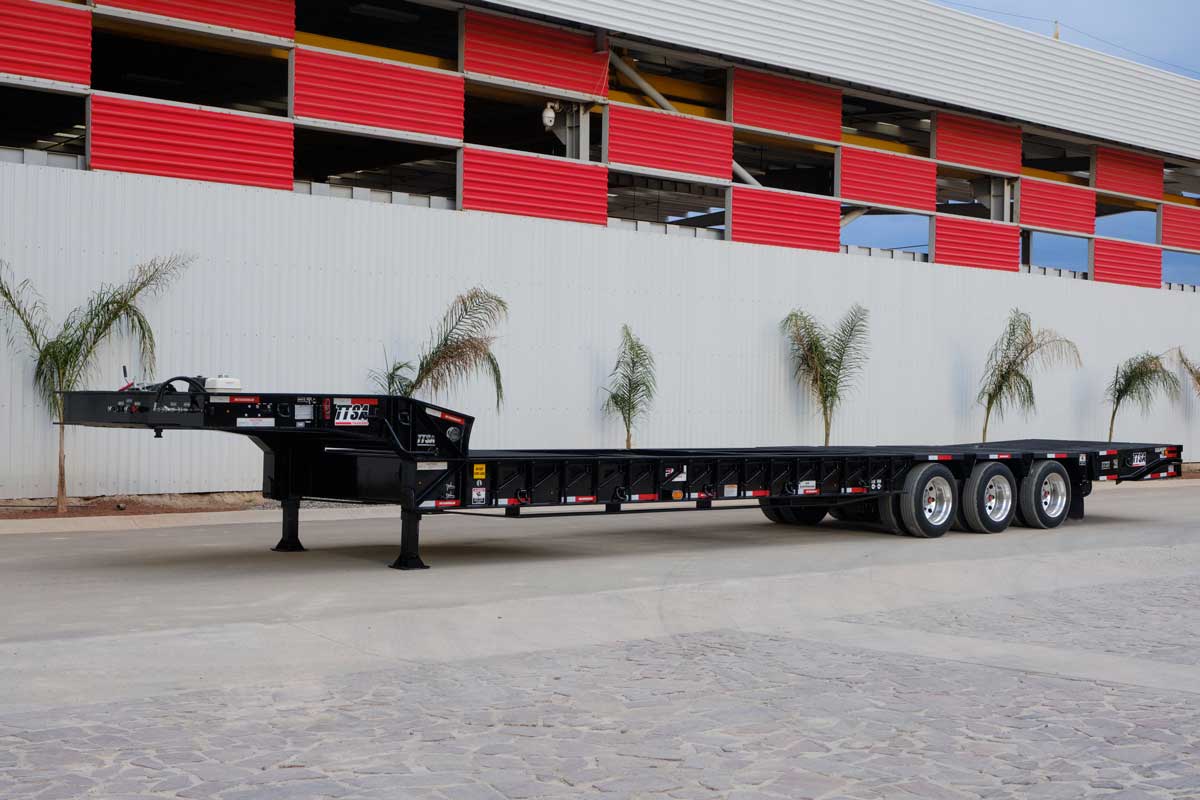

Lowboy Paver 55

General Specs

Tare Weight: Approximately 25,000 lbs
GVWR: 120,000 lbs
Main Beams: Wide flange I-Beam 18″ deep
Cross Member: Fabricated steel
Upper Coupler Assembly: 5/16″ thick pick-up plate
Fifth Wheel Height: 47.5″
Mud Flaps: 24″ x 24″ black plastic, 4 hole mounting
Electrical System: 12 volt, 7-way split pin receptacle plug, Grote lights
Tail: Hydraulic operated tail

Dimension

Overall Width: 102 inches
Overall Length: 53 inches
Bed Height: 40 inches

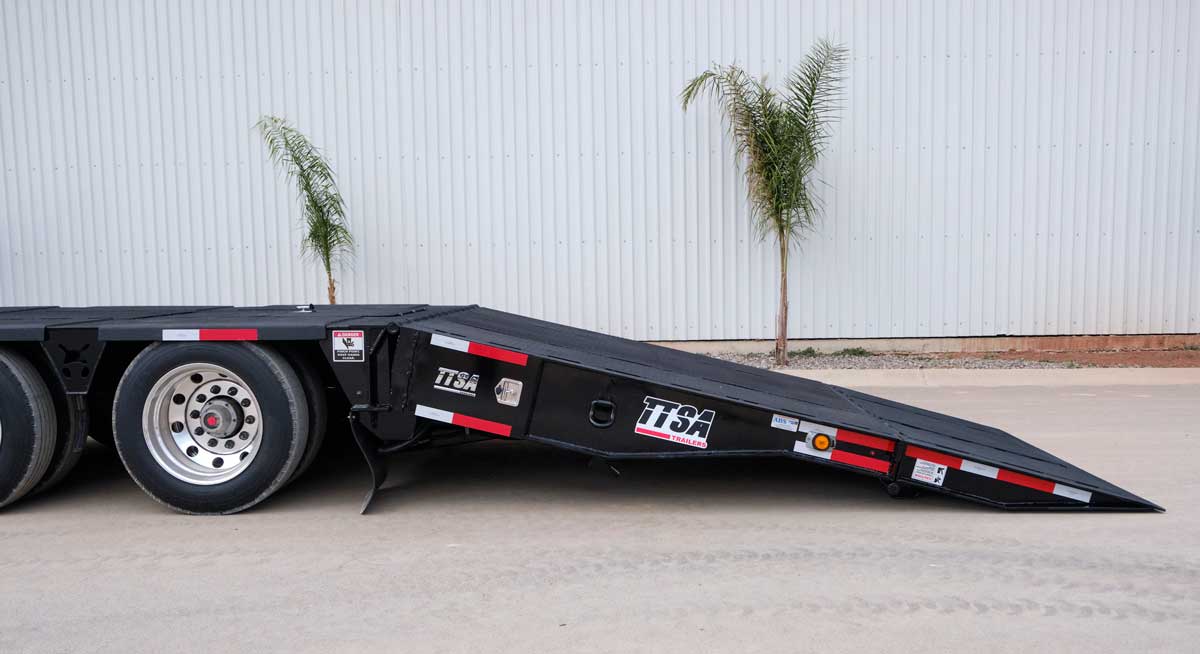

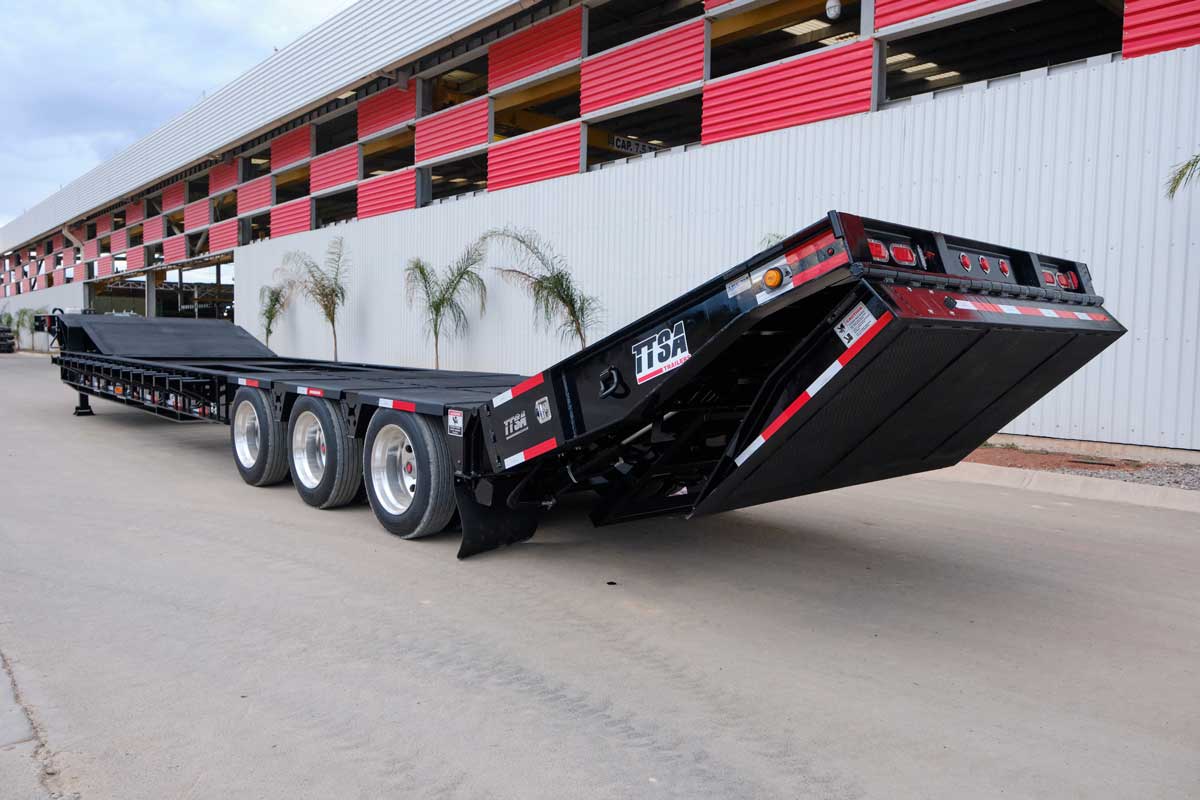

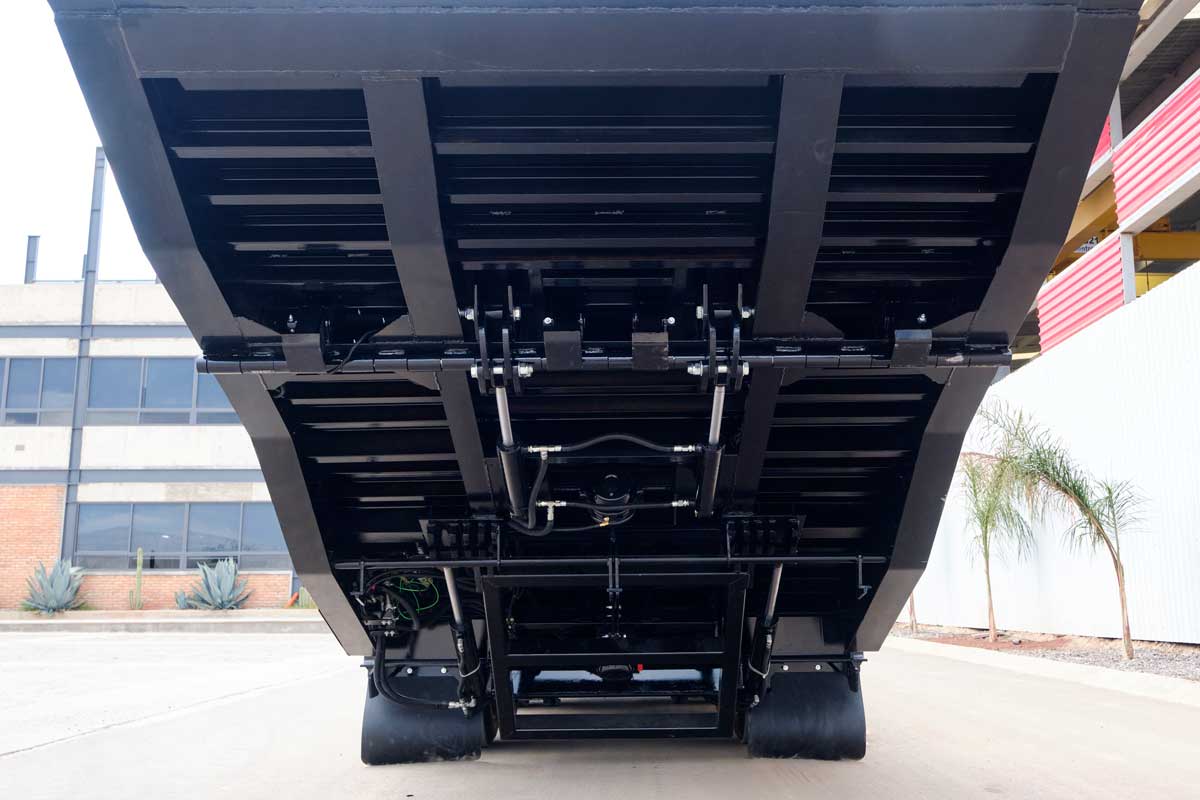

Tail

Bigger section length: 96 inches
Smaller section length: 51 inches
Security lockout: Air actuated

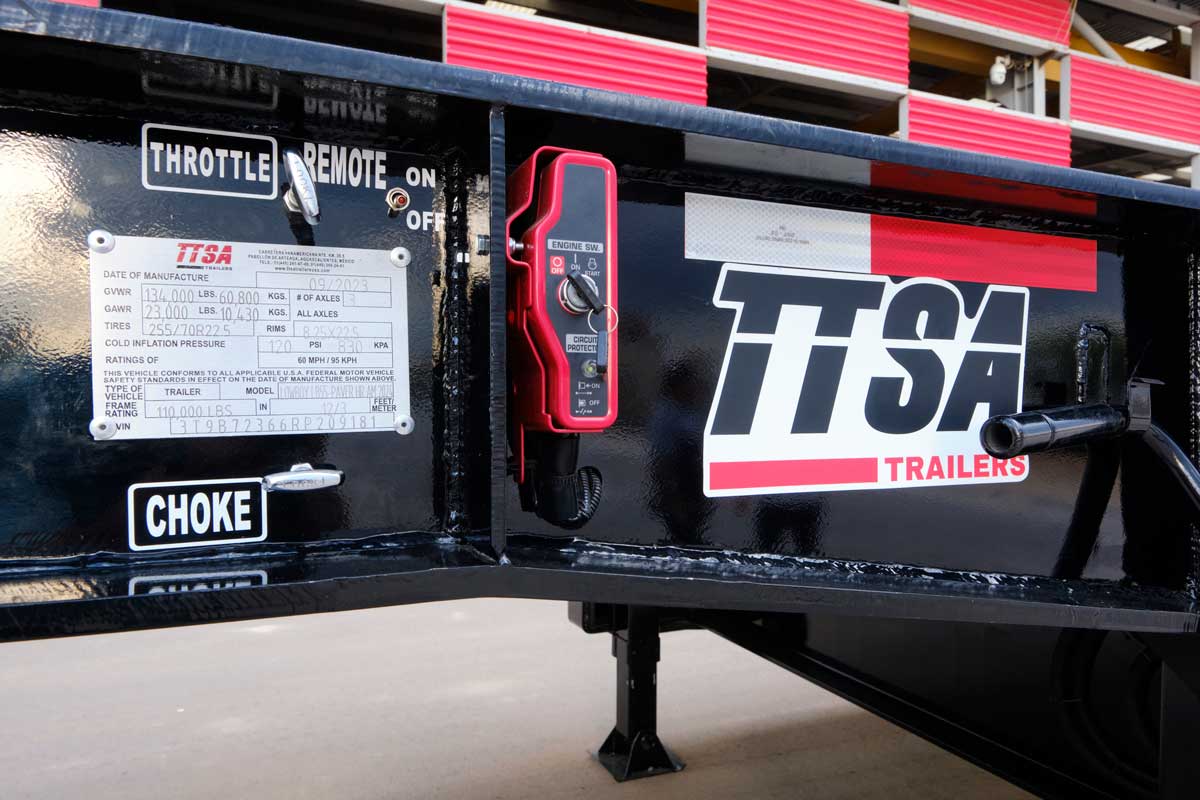

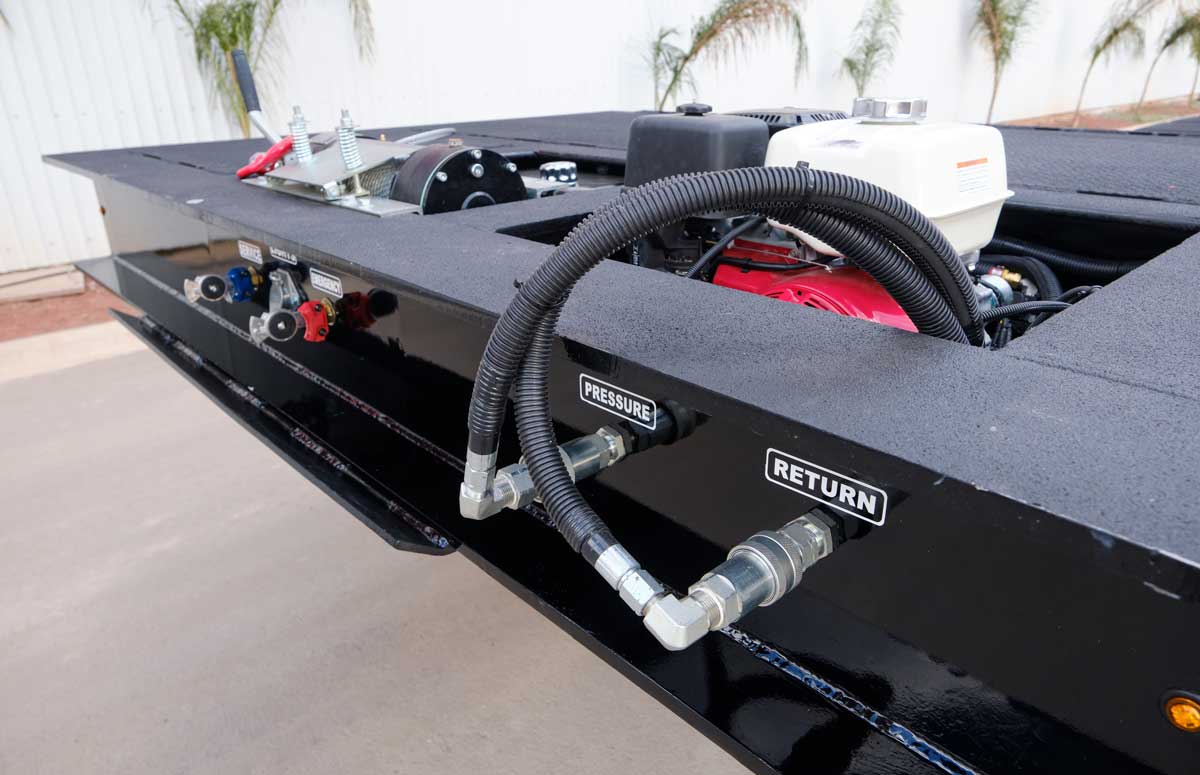

Hydraulic Power Source

Engine: Honda GX390
Horsepower: 13 HP
Fuel: Gasoline
Starter: Electric and Manual
Pump: 3600 psi
Displacement: 0.4 cu in / rev
Reservoir: Self Hydraulics Reservoir

Winch

Maximum working pressure: 2030 psi
Wire diameter: 10 mm
Wire lengith: 78 feet

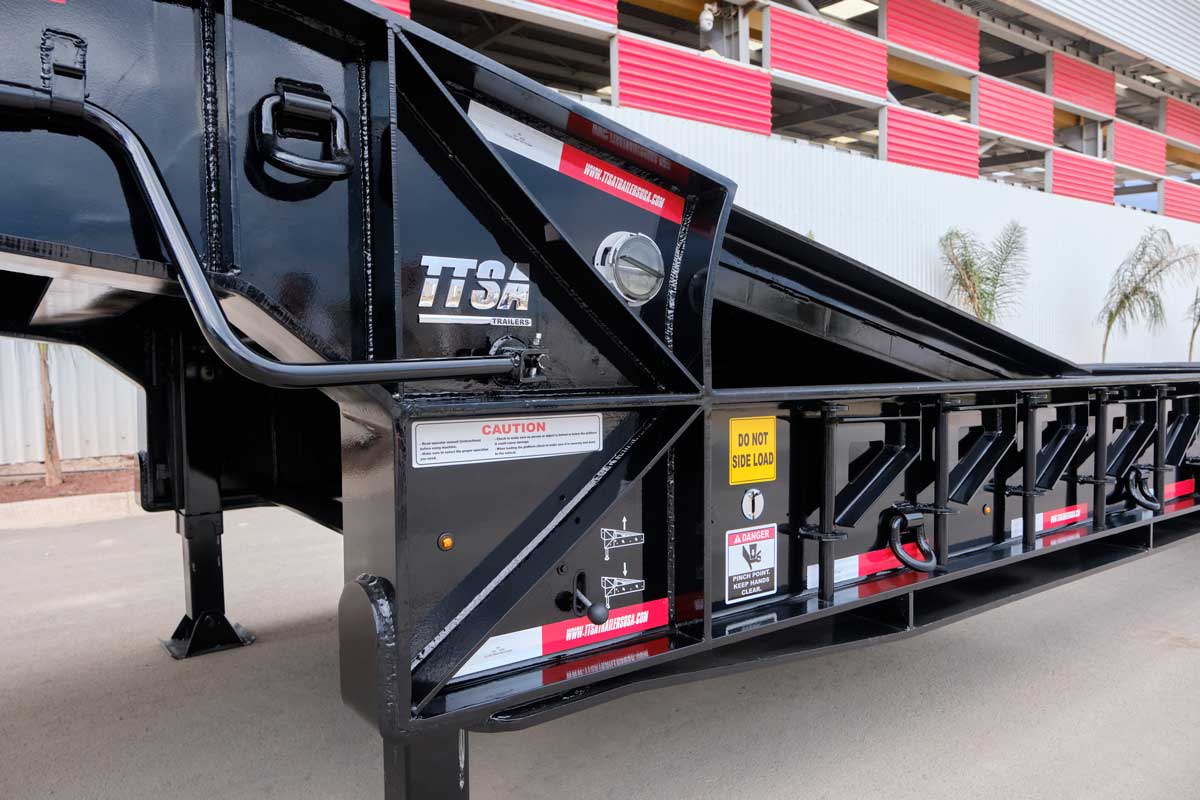

Landing Gear

Landing Gear: Two speed, square leg. 60,000 lbs. lift capacity and 170,000 lbs. static load capacity
Type: Double shaft
Landing Gear Foot Group: 10″ x 9.5″ low profile sandshoe
Crank Handle Location: Roadside

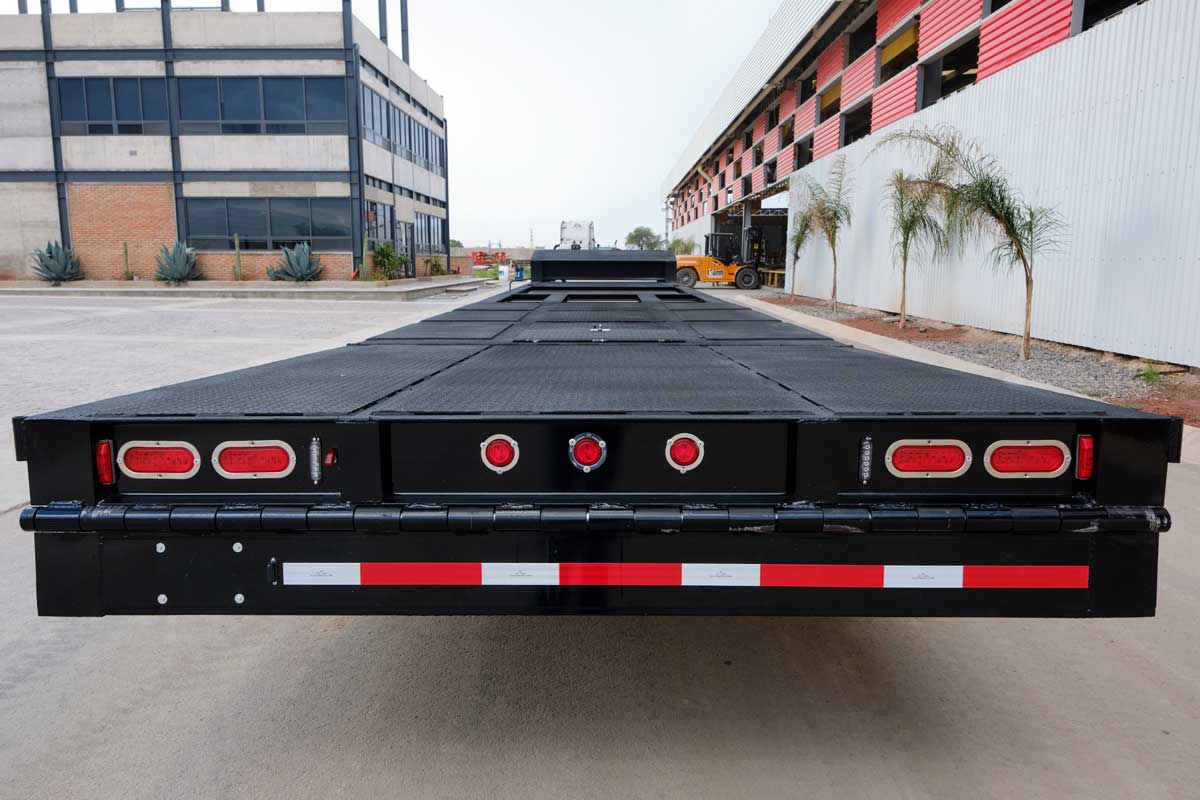

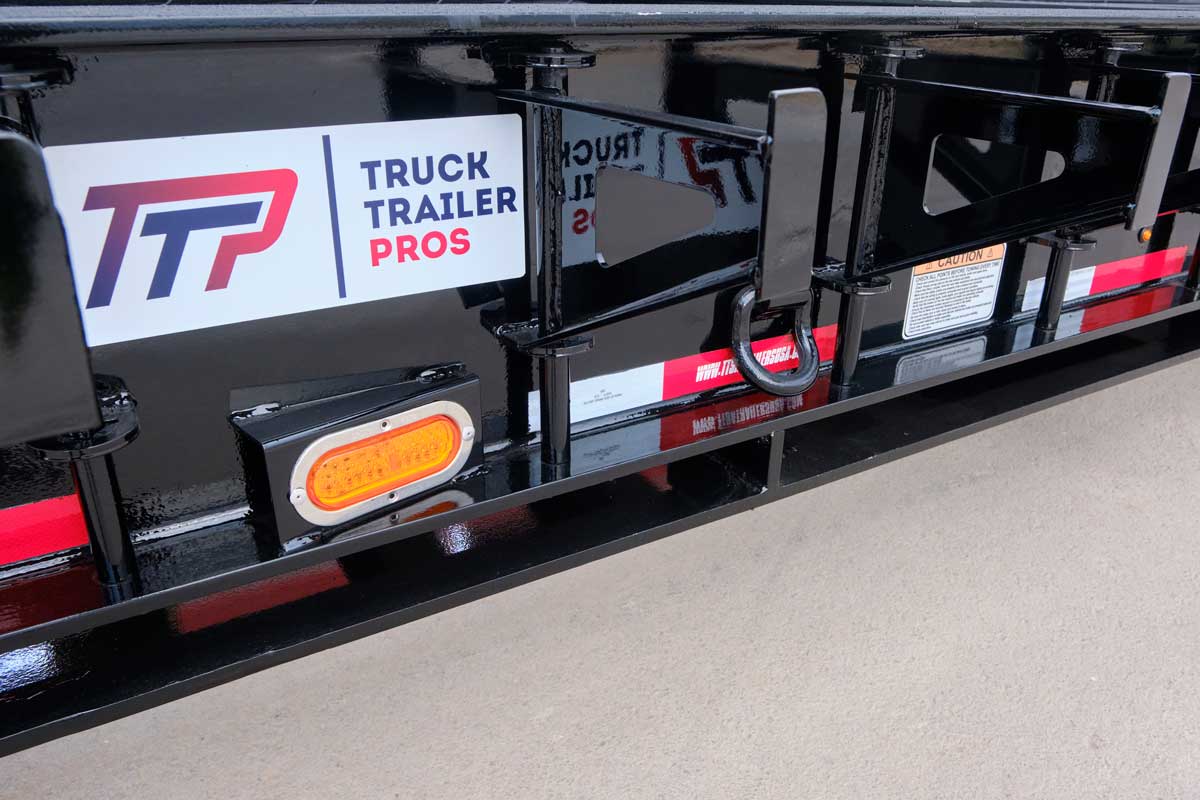

Lighting

Light Attachment: Flange mounted
Light Type: LED

Brakes

Drum: Steel outboard mounted
Lubrication: Synthetic Grease
Brake System Type: 2S1M
Brake Champers: 30/30

Wheels

Rims: 8.25″ x 22.5″
Tire Size: 255/70R22.5

Axles

Axle Type: 5″ round, tapered, 77.5″ long
Axle Quantity: Three
Axle Location: 134 inches from tail rear
Kingpin Location: 18 inches from rear face of front bolster

Suspension

Suspension Type: Air Suspension

Finish

Metal Preparation: Clean, dry steel and commercial blast cleaning
Primer: Zinc-rich primer
Topcoat: Urethane
