Heavy-Duty Steel. Serious Bulk Hauling. PUMA Tough.

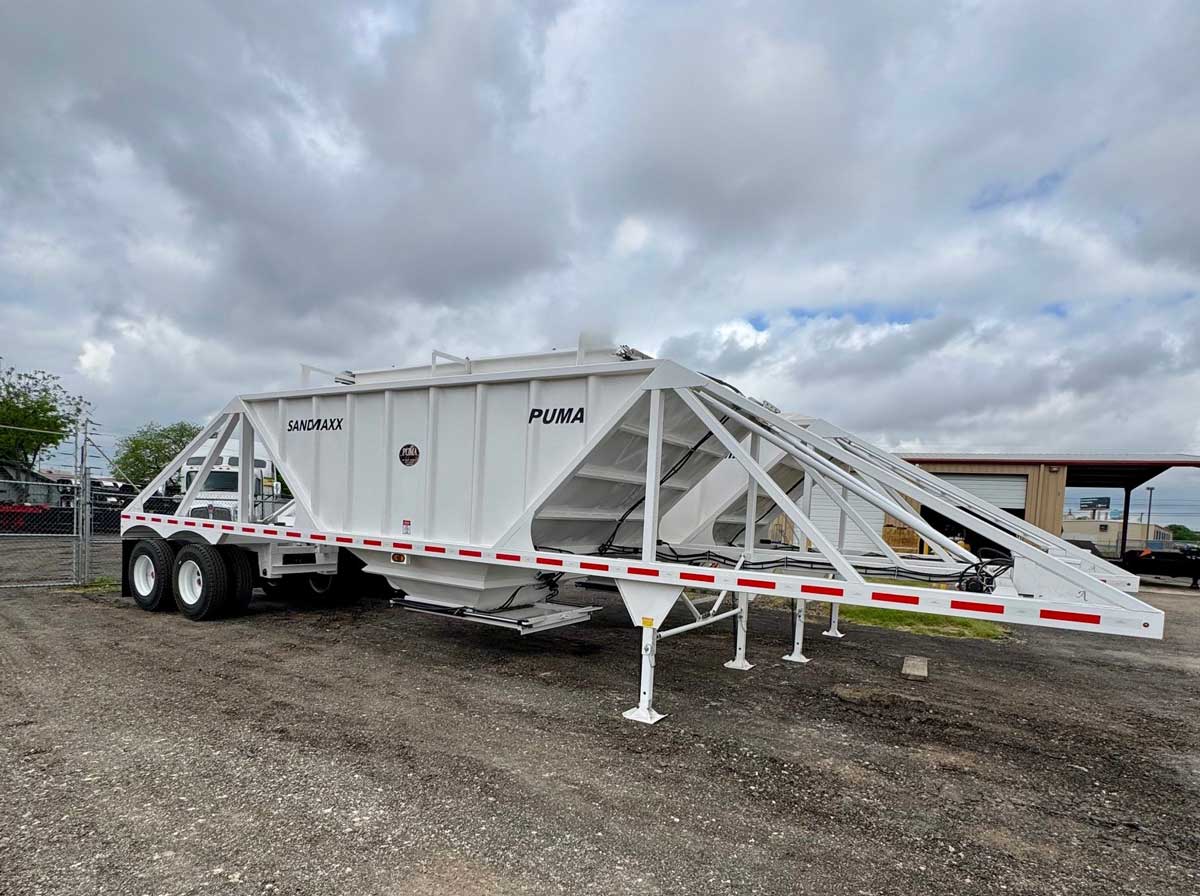

The Metal Sand Hopper by PUMA is engineered for operators who work in the demanding world of sand and aggregate transport. Built from high-strength steel construction, this rugged hopper handles the harsh conditions and heavy loads that define frac sand, gravel, and dry bulk operations. The durable PUMA design delivers reliable performance load after load, with the low-maintenance construction that keeps bulk hauling operations profitable.
When you’re hauling abrasive materials in tough conditions, steel construction provides the durability and impact resistance that certain applications demand. This hopper stands up to the constant punishment of heavy aggregate materials, harsh loading environments, and the demanding conditions of oilfield and construction operations. Built for operators who need equipment that works as hard as they do.
The PUMA engineering delivers the dependable performance that bulk haulers count on day after day. Designed for long service life with minimal maintenance requirements, this hopper keeps your operation running smoothly without the constant repairs and downtime that inferior equipment demands. Every component is selected for durability in the harsh realities of sand and aggregate transport.
Built specifically for the rigors of frac sand, gravel, and dry bulk material transport where toughness matters. The robust steel construction handles the weight and abrasion that comes with moving tons of aggregate materials, while the proven design principles ensure consistent performance across demanding hauling applications. Maximum productivity with minimal headaches.
For operators who need steel hopper durability in demanding bulk transport operations, the Metal Sand Hopper by PUMA provides the heavy-duty solution. When your loads are tough and conditions are harsh, this hopper delivers the PUMA-engineered reliability that keeps serious bulk hauling operations running strong.
Length: 36 feet (32 feet optional)
Shipping Weight: 11,000 lbs
GVWR: 78,000 lbs
GAWR: 30,000 lbs
Capacity: Up to 27 cubic yards
Sidewall: 14GA sheet metal
Rooftop: 14GA sheet metal
Hopper: 12GA sheet metal
Hubs: Uni-mount, oil-bath hubs
Upper Brace: 11 GA 3×4 square tube truss
Side Rails: 9 GA 3×4 square tube
Chassis Frame: 9 GA 4×6 square tube, side to side
Chassis Longitudinal: 1/4″ 4×8 square tube, back to front
Preparation: Steel blasted
Finish: Powder coated
Standard Colors: White, Gray, Black, Red
Wheels: Aluminum 24.5″
Tires: 11R 24.5
Axles: 2 Ampro axles (3 axle optional)
Suspension Type: Air ride suspension
Landing Gear: Ampro landing gear

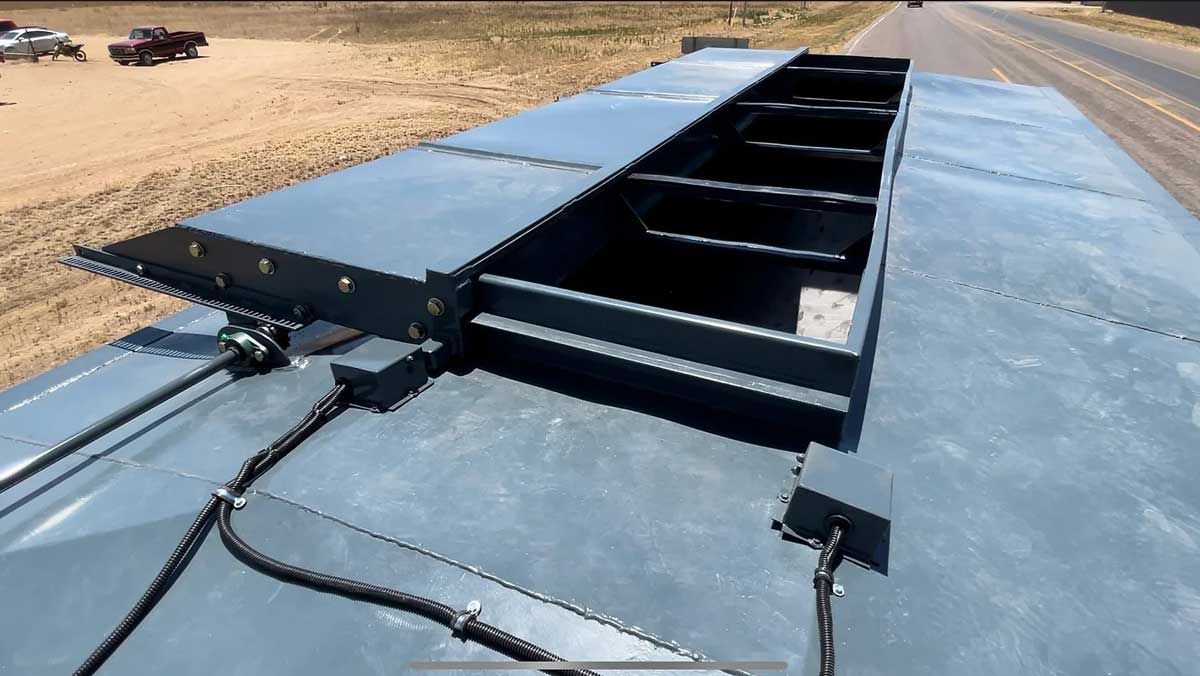

Top Door: Electric operation

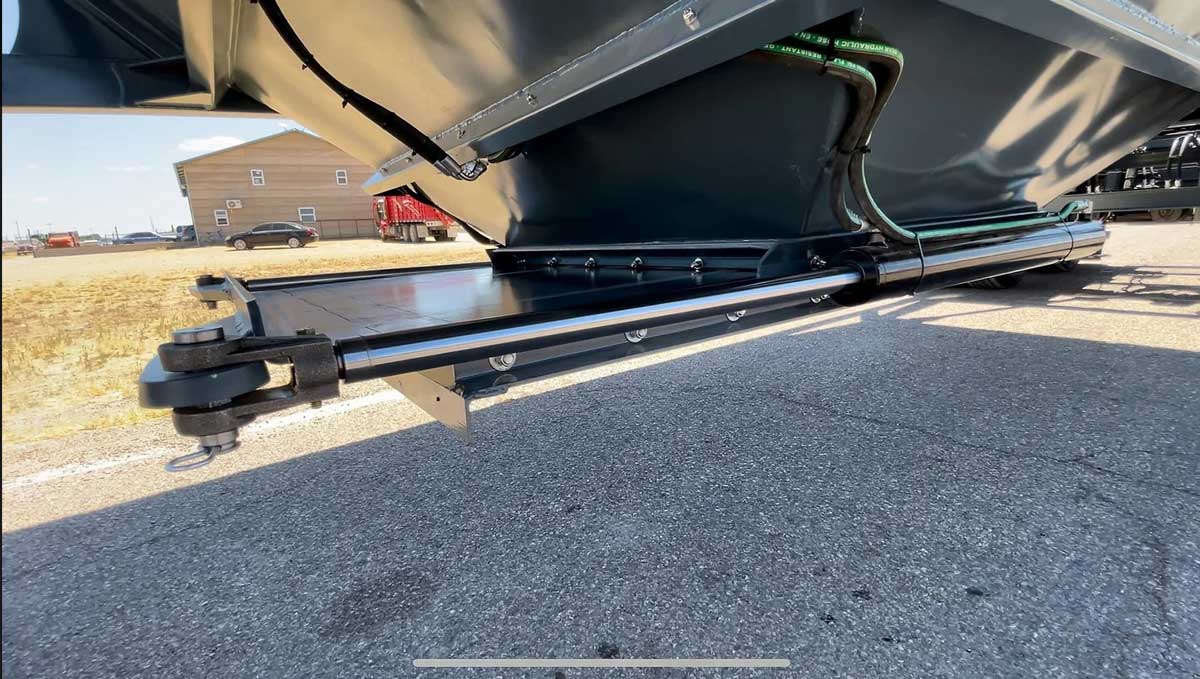

Bottom Door: Hydraulic operation
Control System: In-cab operating
Optional Liner: Stainless steel liner for dry or wet sand
Designed For: Frac sand, dry sand, wet sand (with liner)
Industries: Oil & gas, construction, aggregate
