Built to Haul More. Designed for Clearance. Ready for Anything.

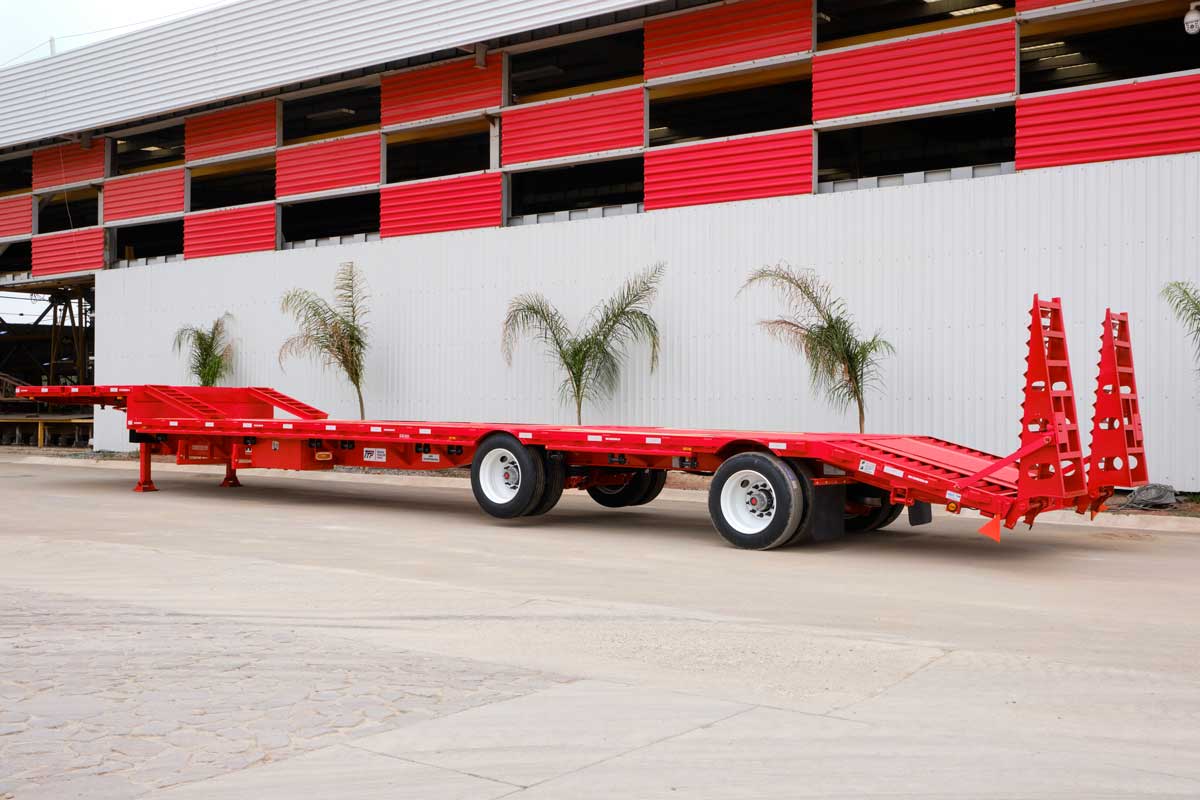

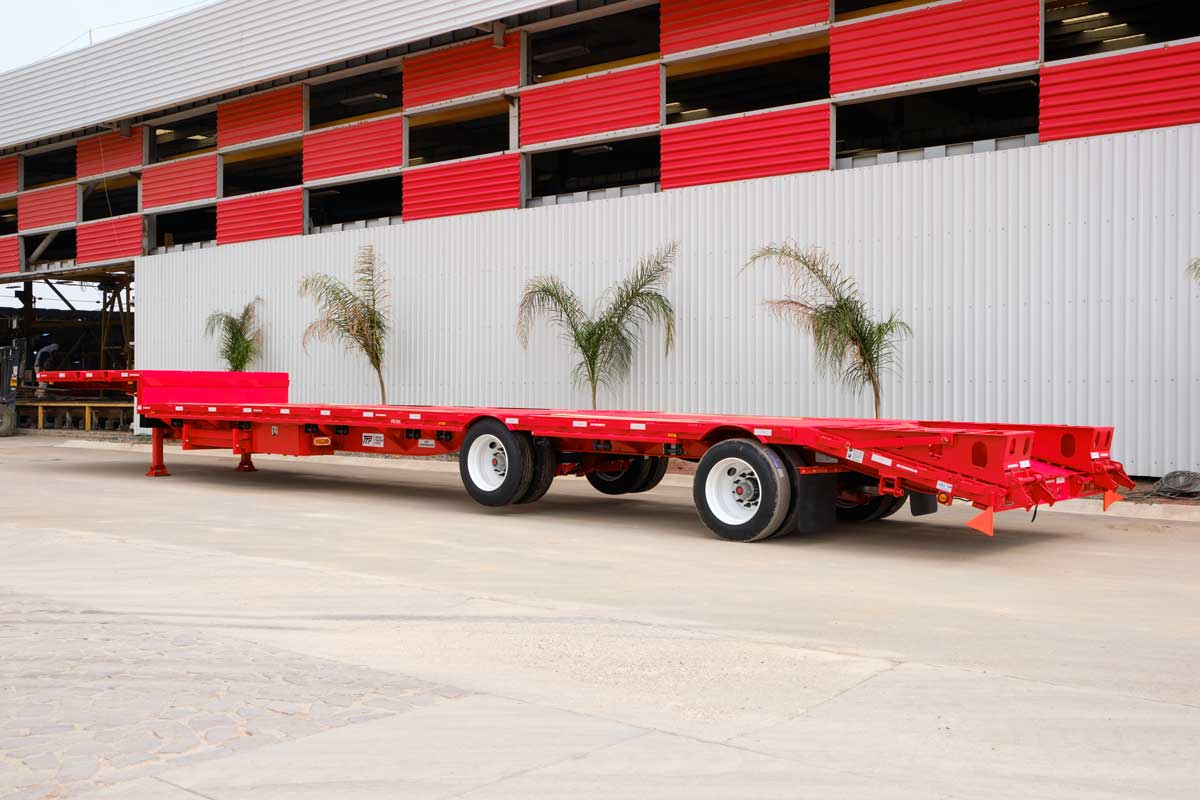

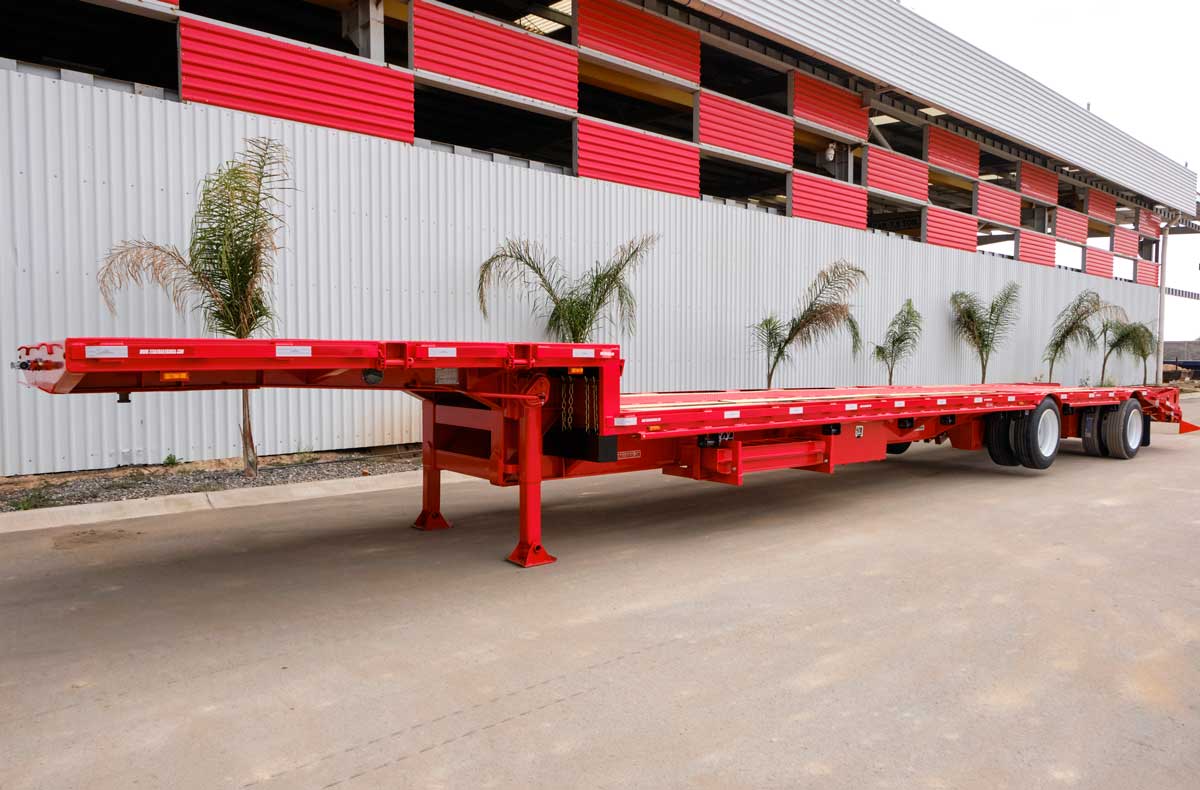

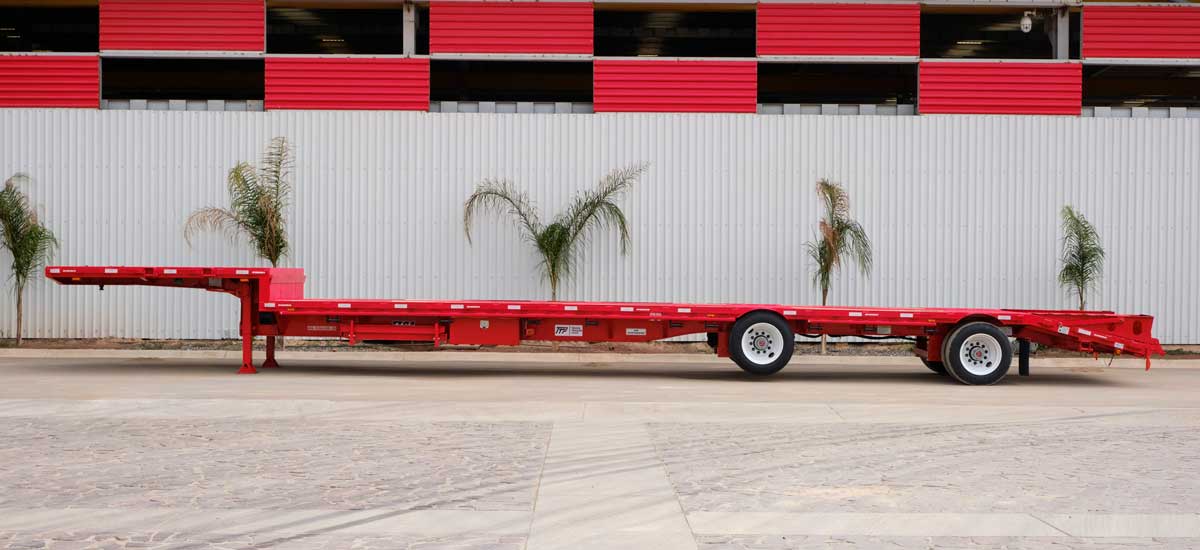

The 53′ Stepdeck Trailer is engineered for hauling taller loads that standard flatbeds can’t handle, offering both a high GVWR and optimized ground clearance. With a strong fabricated steel frame, spring-assisted tail, and a heavy-duty slider winch system, this trailer delivers unmatched reliability and versatility for a wide range of freight. Whether you’re hauling construction materials, machinery, or oversized equipment, this stepdeck is up to the task.
General Specs
Tare Weight: Approximately 12,8000 lbs
GVWR: 75,000 lbs
Floor: Wood at 1 1/2″
Cross Member: Fabricated steel
Upper Coupler Assemply: 5/16″ thick pick-up plate
Fifth Wheel Height: 48 inches
Mud Flaps: 24″ x 24″ black plastic, 4 hole mounting
Electrical System: 12 volt, 7-way split pin receptacle plug
Wincher: 4″ Slider Wincher System

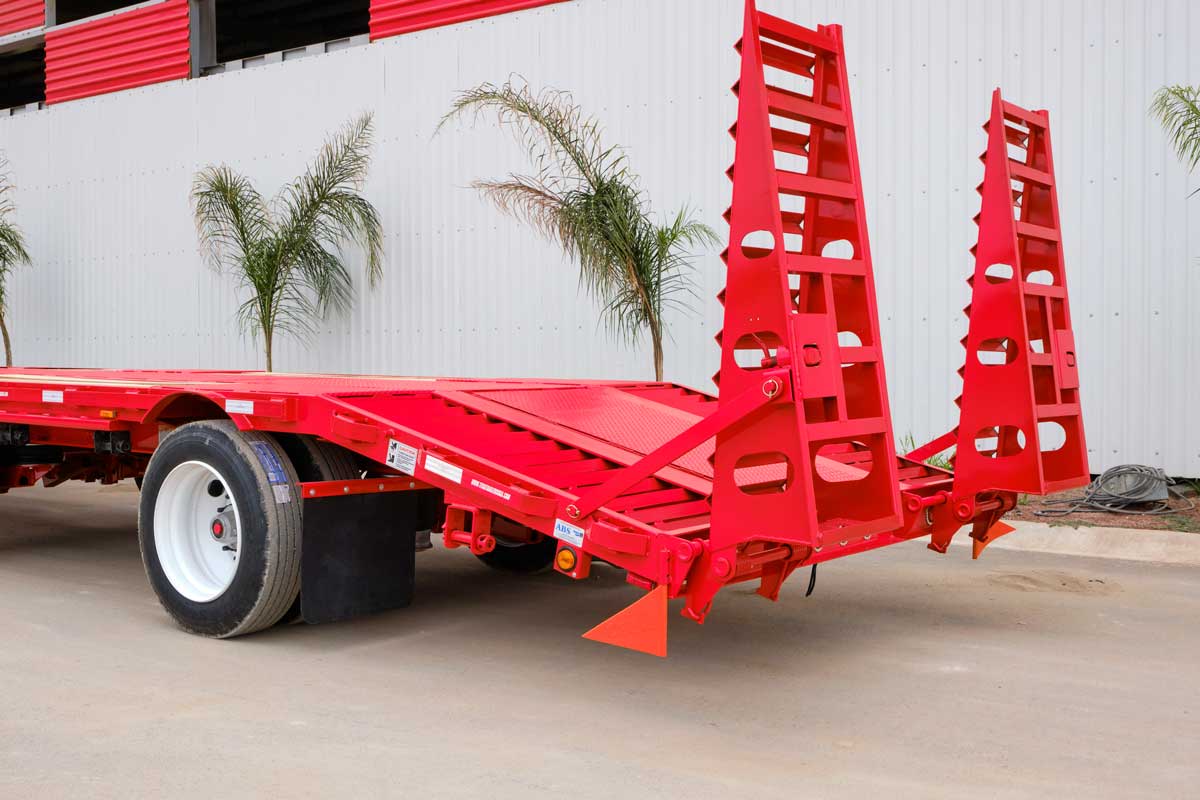

Tail: Spring assisted
Dimension
Overall Width: 102 inches
Overall Length: 53 feet
Bed Height: 41 inches
Deck Height: 56 inches

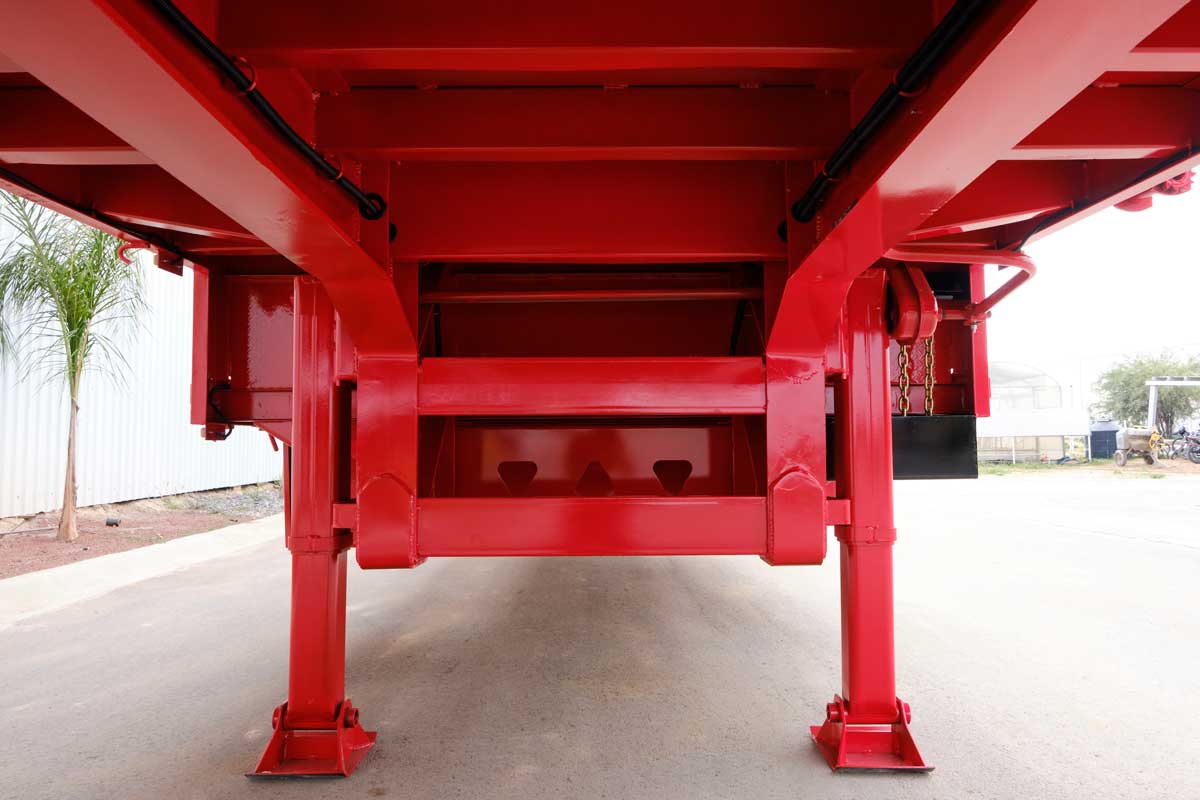

Landing Gear
Landing Gear: Two speed, square leg. 60,000 lbs lift capacity and 170,000 lbs static load capacity
Landing Gear Foot Group: 10″ x 9.5″ low profile sandshoe
Crank Handle Location: Roadside
Lighting
Light Attachment: Flange mounted
Light Type: LED
Brakes
Drum: Steel outboard mounted
Lubrication: Synthetic Grease
Brake System Type: 2S1M
Brake Chambers: 30/30
Wheels
Rims: 8.25″ x 22.5″
Tire Size: 255/70R22.5
Hub Type: Steel
Axles
Axle Type: 5″ round, tapered, 77.5″ long
Axle Quantity: Two
Axle Centers: 122 inches
Axle Location: 94 inches from rear
Kingpin Location: 16 inches from rear face of front bolster

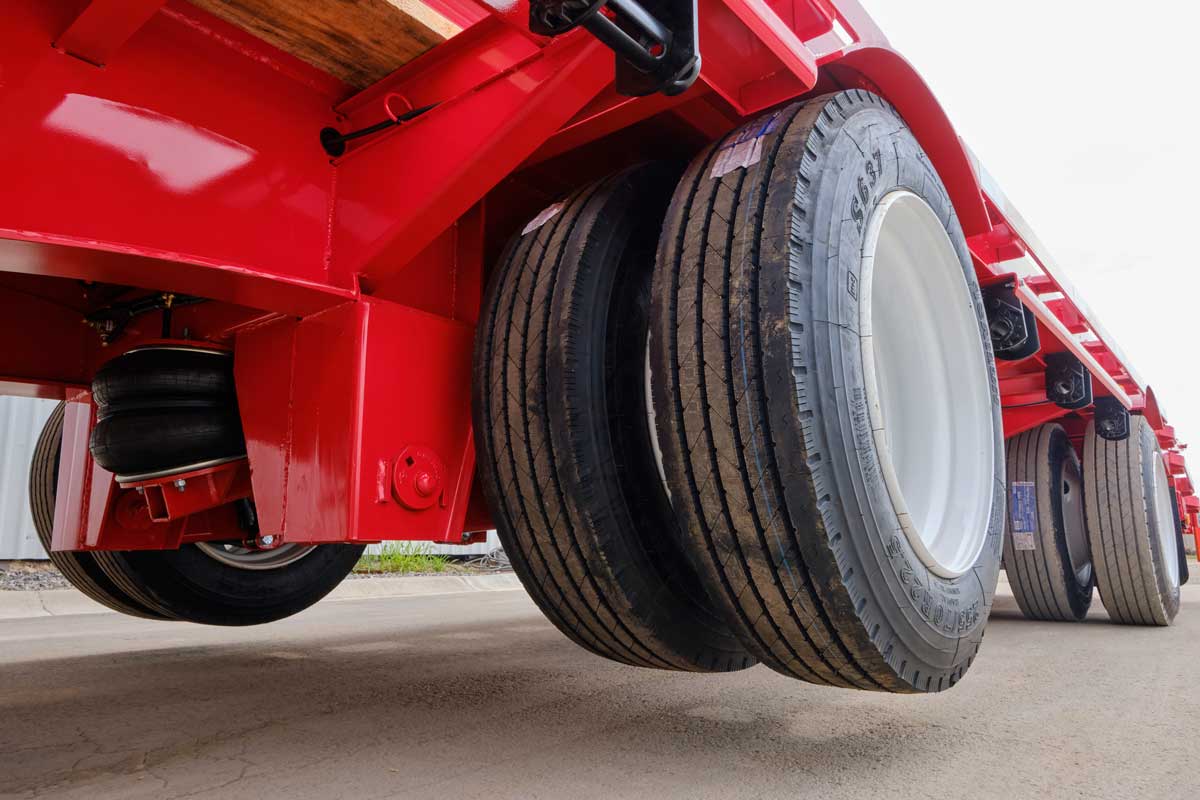

Suspension
Suspension Type: Air Suspension
Finish
Metal Preparation: Clean, dry steel and commercial blast cleaning
Primer: Zinc-rich primer
Topcoat: Urethane
