Built for serious work, designed for lasting performance.

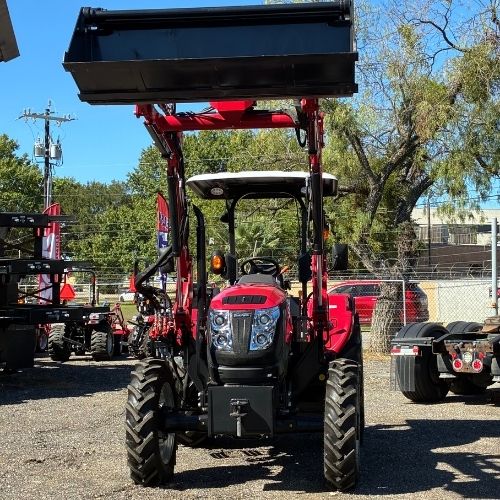

The Solis S60 ROPS is a powerful 58 HP utility tractor engineered for demanding farm and property tasks.
Its 3-cylinder CRDi engine, synchro shuttle transmission (12F + 12R), and 4WD drive make it ideal for
mowing, tilling, baling, and heavy loader applications. With a lifting capacity of 3,086 lbs and dual hydraulic remotes,
the S60 delivers exceptional control and capability on any terrain.
Key Features:
With a 3-year full warranty and 5-year powertrain warranty, the Solis S60 ensures lasting reliability and peace of mind.
Whether for livestock farms, hobby operations, or large properties, this machine is your dependable, no-nonsense workhorse.
Engine Model: CRDi
HP Category: 58 HP
No. of Cylinders: 3
Aspiration: TCIC (Turbocharged Intercooled)
Cubic Capacity: 186.73 CI
Rated RPM: 2000
Max Torque: 184.4 Nm
Air Cleaner: Dry Type
Cold Start: Up to -30°C (with block & pan heater)
Exhaust: Downdraft (Updraft optional)
Drive: 4WD Synchro Shuttle
Gearbox: 12F + 12R
PTO Speed: 540 RPM
PTO Actuation: Mechanical
Max PTO Power: 49 HP
Steering: Power Steering
3 Point Linkage: CAT II
Lifting Capacity: 5,511 lbs (6,613 lbs optional)
Stay Bars: Floating
Auxiliary Hydraulic Circuit: 2SA / 2DA
Hydraulic Flow: 19.5 GPM
Lift Rods: Adjustable
Fuel Tank: 17.17 gallons
Weight: 6,581 lbs
Wheel Base: 87 inches
Total Length (with TPL): Max 160.6″ / Min 150″
Total Width: 76.2 inches
Height (to ROPS): 104 inches
Ground Clearance: 13 inches (Front Axle)
Industrial: F 12.5/80-18, R 19.5L-24
Agriculture 1: F 9.5-24 (8PR) / R 16.9-28 (12PR)
Agriculture 2: F 8.3-24 (8PR) / R 14.9-28 (12PR)
Radial 1: F 280/85 R24 / R 420/85 R30
Radial 2: F 320/70 R24 / R 420/85 R30
Standard Tire: 12.5/80-18 R4 & 18.4×24 R4
Type: Oil Immersed Brakes
Actuation: Mechanical
Parking Brake: Mechanical
Differential Lock: Mechanical
Max Lift Height at Pivot: 128.6 inches
Clearance with Attachment Dump: 95.39 inches
Reach at Maximum Height: 33.68 inches
Max Dump Angle: 62°
Rollback Angle: 41°
Digging Depth Below Grade: 7.55 inches
Breakout Force at Pivot (Dig Position): 4,069 lbs
Bucket Width: 72.6 inches
Lifting Capacity to Full Height: 2,866 lbs
The Solis S60 comes with a 3-year full warranty and a 5-year powertrain warranty —
one of the best in its class. This reliable protection reflects Solis’ confidence in every tractor they build,
ensuring lasting performance and peace of mind for every operator.
